Coating Machine

BG High Efficiency Film Coating Machine

Achieve flawless tablet coating with our state-of-the-art machine, delivering precise and uniform coating for pharmaceutical and industrial applications.

BG High Efficiency Film Coating Machine

High Efficiency: Optimal productivity and reduced production time.

Precise Coating Control: Accurate parameter control for coatings.

Clean Environment: Hygienic and clean workspace.

Easy Cleaning: Quick and hassle-free cleaning.

PLC Control: Automated operation and precise control.

Data Storage and Printing: Accurate record-keeping.

Versatile Application: Suitable for various tablets and pills.

Reliable Construction: Durable and compliant materials.

Description

Applications

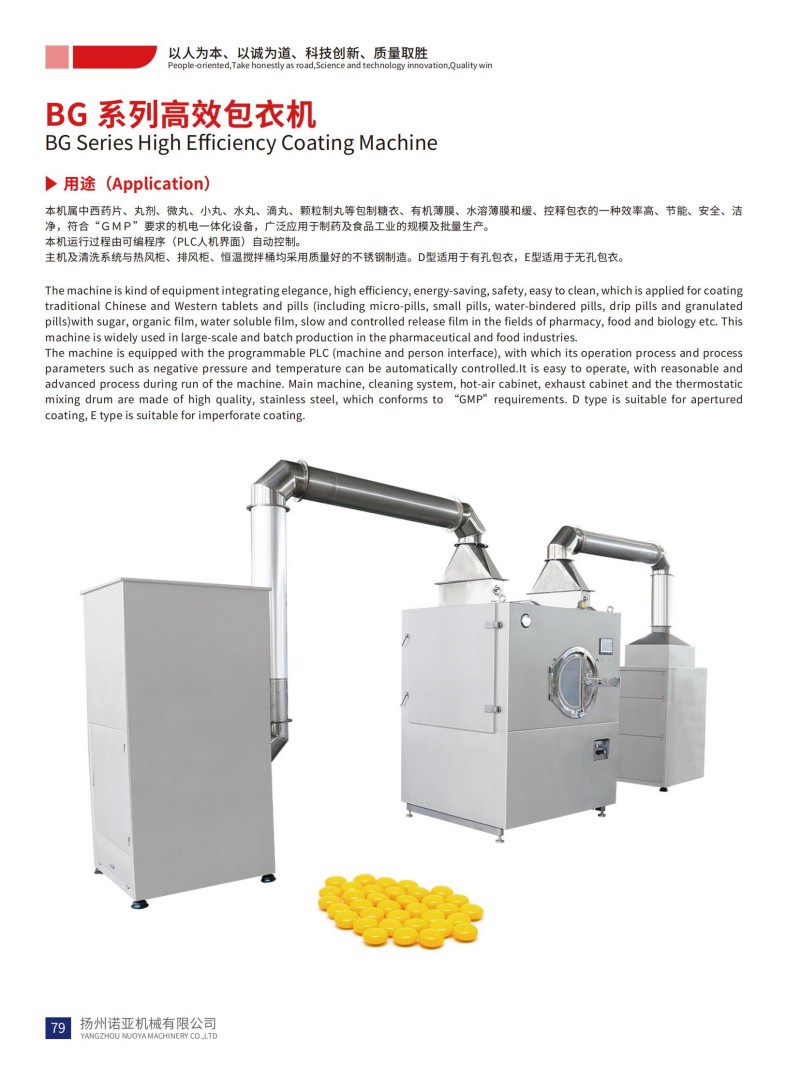

BG High-Efficiency Film Coating Machine is a sophisticated equipment designed for coating traditional Chinese and Western tablets and pills in the pharmaceutical, food, and biological industries. It integrates elegance, high efficiency, energy-saving features, and easy cleaning, offering a range of coating options such as sugar, organic film, water-soluble film, and slow-release film.

Coating machine for tablets

Features

Programmable PLC Control for automatic operation and parameter control.

High-quality stainless steel construction meeting "GMP" requirements.

Efficient coating process with smooth tablet rotation and improved yield.

Advanced air filtration system for clean and purified air intake.

Flexible air source exchange system for temperature control and process adjustments.

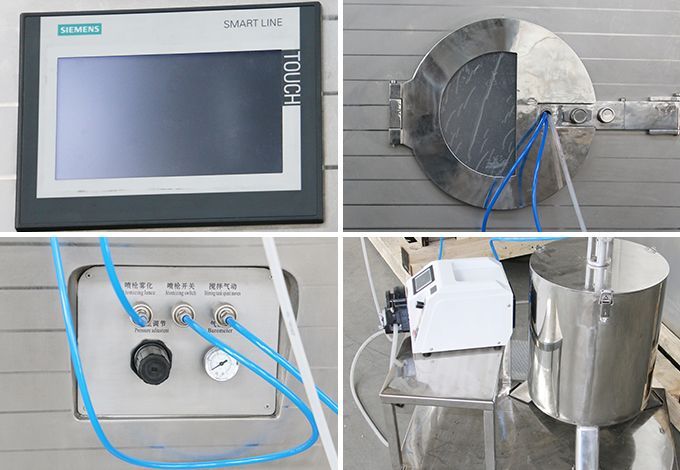

Easy operation and control with user-friendly cleaning system and adjustable spray gun.

PLC automatic control for precise management of negative pressure, air flow, and temperature.

Data storage and printing system for accurate batch production record-keeping.

BG High Efficiency Film Coating Machine is a state-of-the-art equipment designed for coating tablets and pills in the pharmaceutical, food, and biological industries. Its closed poreless drum design enhances tablet rotation and improves overall yield. The machine ensures a clean working environment with its high-level air filtration and dust abatement features.

With a flexible air source exchange system and an explosion-proof lamp, the machine provides precise control over the coating process. It offers an easy cleaning system with automatic drain and a uniform spray gun for precise and uniform coating application. The PLC control system enables automated operation and accurate control of process parameters.

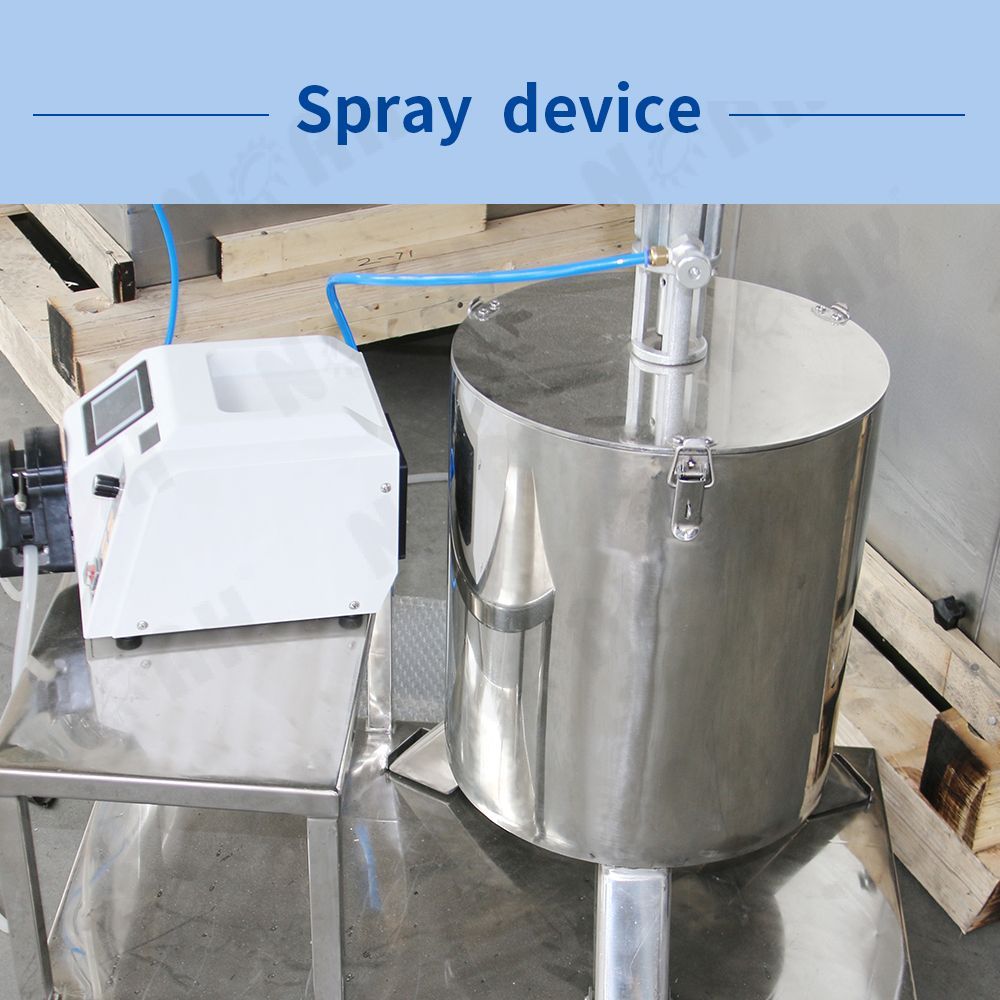

The machine also includes a data storage and printing system for efficient batch production record-keeping. It is complemented by subsidiary equipment such as a thermostatic mixing drum for uniform liquid preparation and an automatic charging and discharging device, ensuring sanitary production processes and efficient operation.

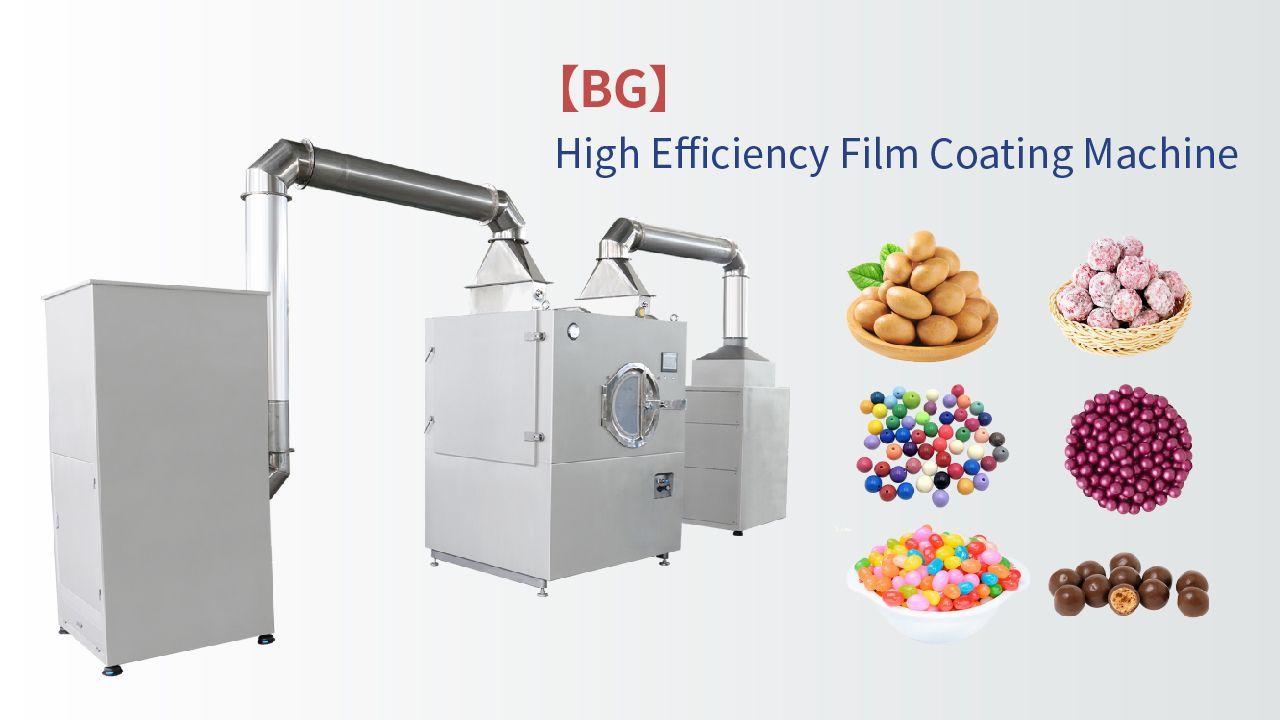

Product Video

Tablet Coating Machine

Specification

Technical Type400E150(D)E80(D)E40(D)E10D
Load Capacity (kg)400150804010
Revolutions(R/Min)2.0-122.0-142.0-162.0-183.0-19
Machine dimensions kw32.21.51.10.55
Machine dimensions
(L*W*H) mm
2050*1670 *23601730*1320 *20301370*1050 *17001100*850 *1470900*700 *1400
Diameter of Coating drum mm15001200930780500
Power of Air Exhaust Cabinet Motor kw7.55.532.20.75
Air exhaust flow m3/h100007419526835171285
Power of Hot Air Cabinet Motor kw2.21.51.10.750.37
Hot air flow m3/h3600235616851285816
Weight of Main Machine kg1200850600500200
Overall Dimensions of Hot-air Cabinet mm1000*900
*1650
1000*900
*1650
1000*900
*1650
900*800
*1500
750*600
*1130
Overall Dimensions of Air Exhaust Cabinet mm1050*1050
*2000
950*950
*1950
900*820
*1850
820*720
*1750
750*600
*1130
Air ConsumptionPressure MPa>0.39>0.39>0.39>0.39>0.39

Air Consumption m3/min1.50.50.350.20.2


FAQ - Have any questions?

What is the purpose of the BG High Efficiency Film Coating Machine?

The BG High Efficiency Film Coating Machine is designed to apply thin films of coating materials onto various products, providing protective, functional, or aesthetic benefits.

Which industries can benefit from the BG High Efficiency Film Coating Machine?

The BG High Efficiency Film Coating Machine is widely used in industries such as pharmaceuticals, food processing, cosmetics, and electronics.

What types of coatings can be applied using this machine?

The BG High Efficiency Film Coating Machine can apply a wide range of coatings, including sugar coatings, enteric coatings, sustained-release coatings, and functional coatings.

What is the coating capacity of the BG High Efficiency Film Coating Machine?

The coating capacity of the BG High Efficiency Film Coating Machine can vary, depending on the model and specifications, ranging from small-scale laboratory models to large-scale industrial models.

Does the machine ensure uniform coating application?

Yes, the BG High Efficiency Film Coating Machine is equipped with advanced coating technology that ensures precise and uniform coating application, resulting in consistent coating thickness and quality.

Can the machine handle both aqueous and solvent-based coatings?

Yes, the BG High Efficiency Film Coating Machine is designed to handle both aqueous and solvent-based coatings, providing flexibility in coating processes.

Does the machine offer options for process control and automation?

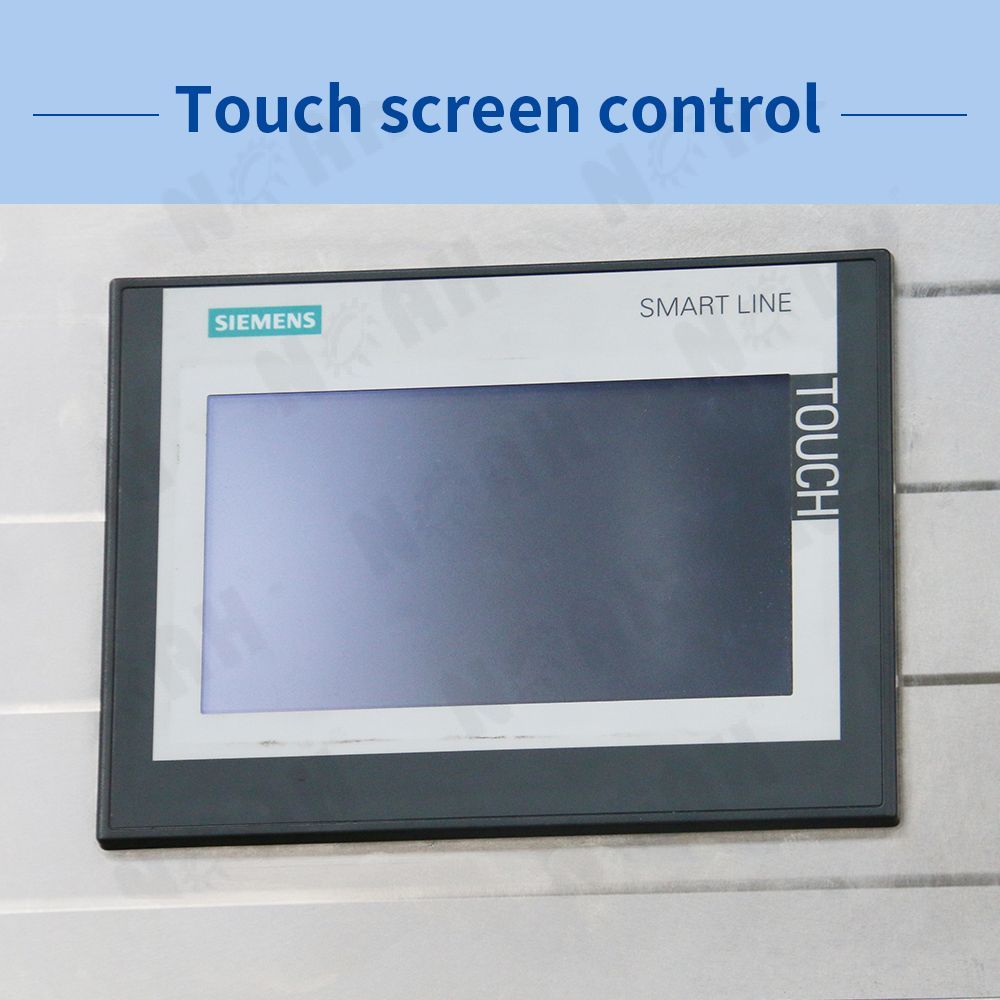

Yes, the BG High Efficiency Film Coating Machine can be equipped with advanced control systems, such as PLCs (Programmable Logic Controllers) and touch-screen interfaces, allowing for precise process control and automation.

Is the machine easy to clean and maintain?

Yes, the BG High Efficiency Film Coating Machine is designed for easy cleaning and maintenance. It features user-friendly interfaces and removable parts, simplifying the cleaning and maintenance procedures.

Does the machine have a built-in drying system?

Yes, the BG High Efficiency Film Coating Machine is equipped with an integrated drying system, allowing for efficient drying of coated products, reducing processing time and improving productivity.

Does the machine comply with industry regulations and standards?

Yes, the BG High Efficiency Film Coating Machine is manufactured in compliance with relevant industry regulations and standards, ensuring product quality, safety, and adherence to Good Manufacturing Practice (GMP) guidelines.

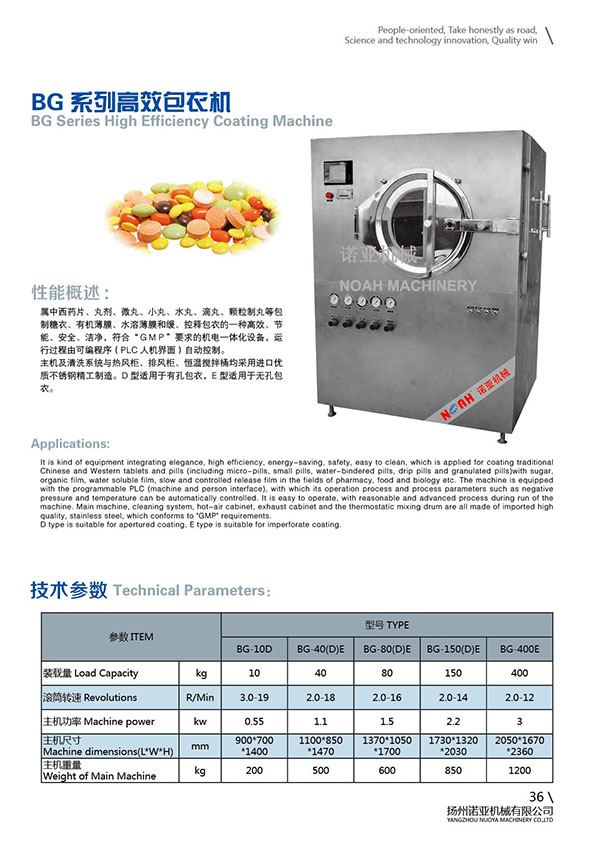

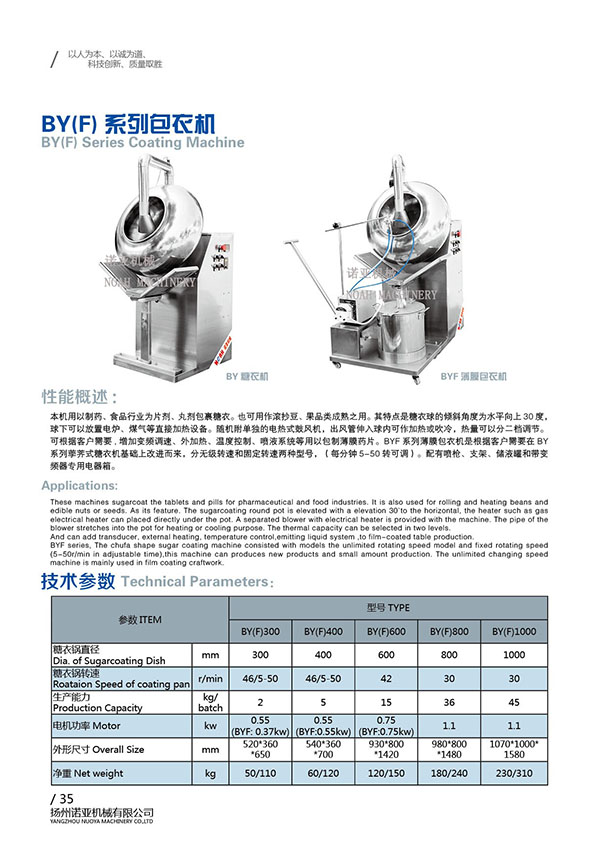

Brochures Download
