Rotary Tablet Press

GZP-500 Series High Speed Tablet Press Machine

Elevate your tablet production with our advanced tablet press solutions.

GZP-500 Series High Speed Tablet Press Machine

Versatile tablet production for multiple industries.

High-speed performance for efficient production.

Consistent tablet weights for quality assurance.

Adjustable pressure for flexibility in tablet compression.

Durable construction and compliance with GMP standards.

Precise tablet shaping for various shapes and sizes.

Reliable operation with automatic lubrication system.

User-friendly design for easy operation and maintenance.

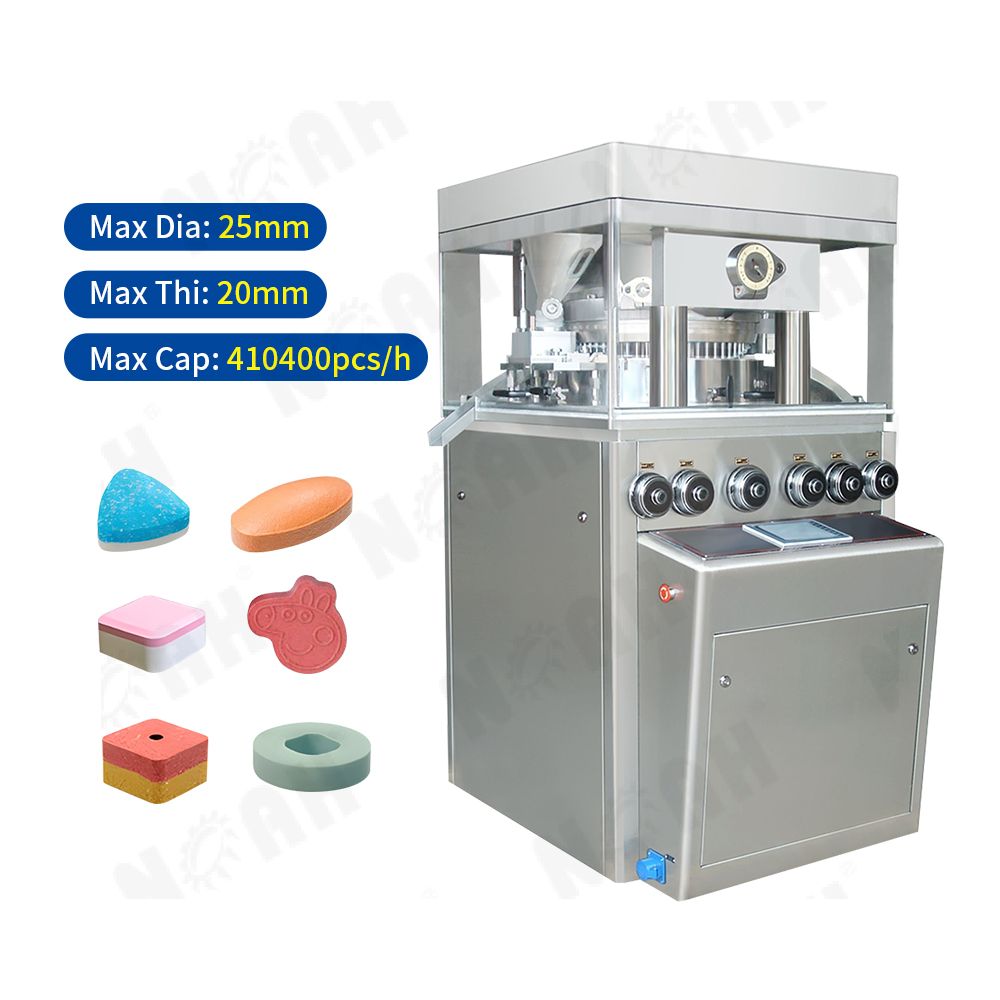

The GZP500 Series High-Speed Tablet Press Machine is designed as a double side rotary tablet press machine, capable of pressing granular materials into round shape tablets, irregular tablets, or double-side engraved tablets. It finds extensive application in industries such as pharmaceutical, chemistry, foodstuff, and electronics.

Pharma tablet press


  1. Double-sided rotary tablet press for various tablet shapes.

  2. Suitable for pharmaceutical, chemistry, foodstuff, and electronics industries.

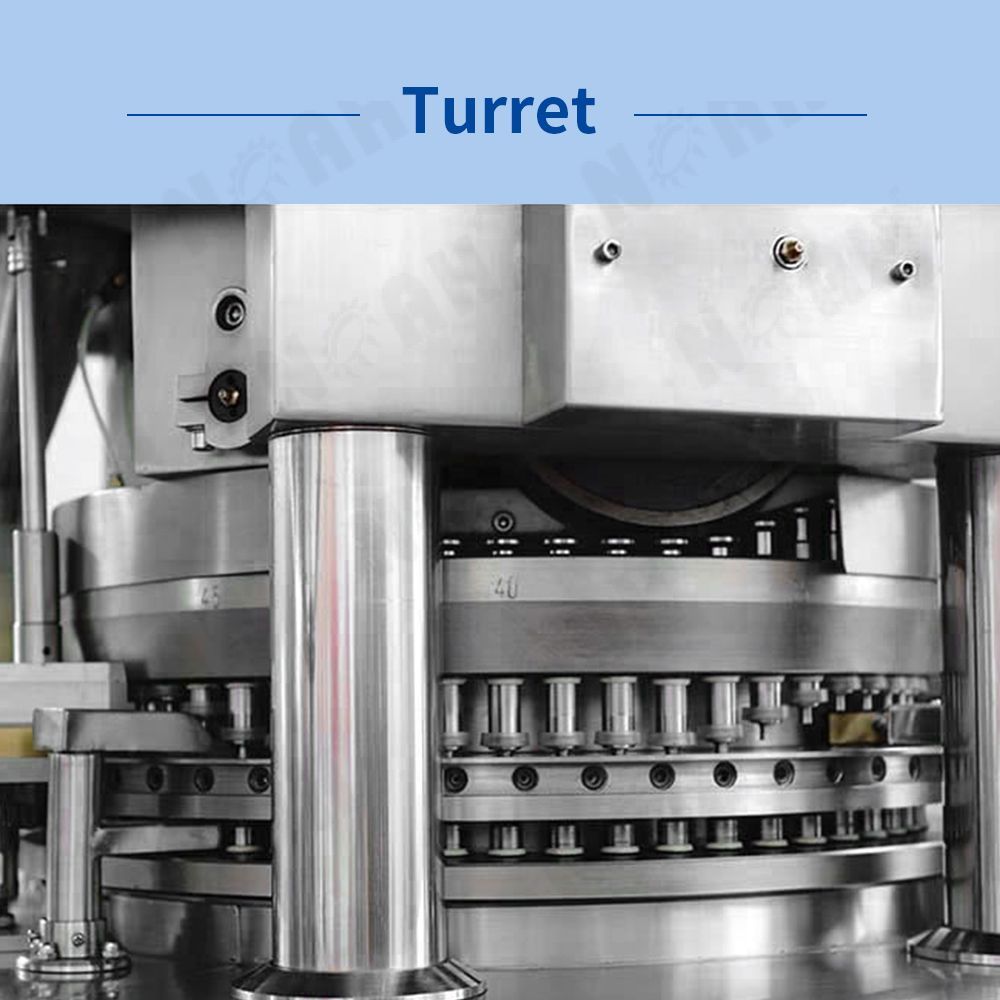

  3. Fully closed housing and hardened turret surface for GMP compliance and durability.

  4. High-speed production with large quantity punches.

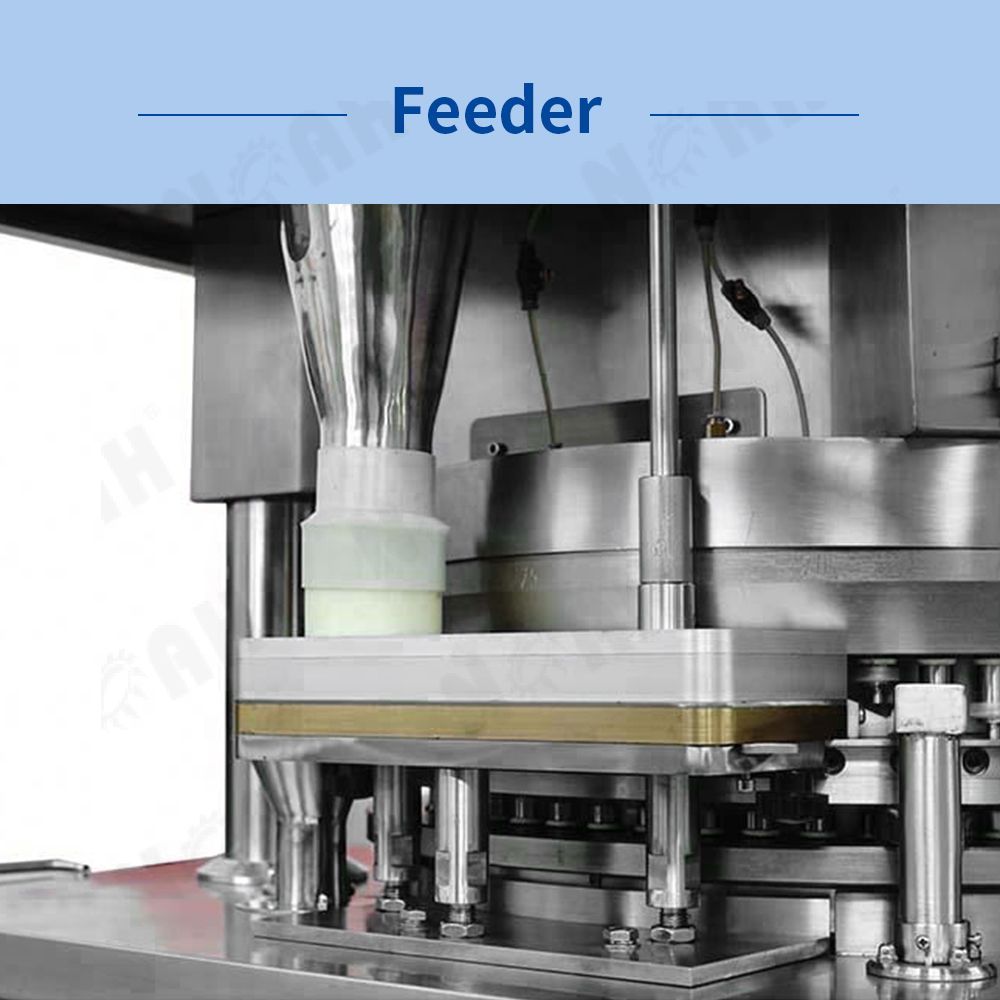

  5. Force feeder improves granule flowability and filling precision.

  6. Perfect tableting system for consistent tablet weights.

  7. Adjustable pressure and continuous pre-pressure.

  8. Automatic lubrication system and sensor pressure protection device.

The GZP500 Series High-Speed Tablet Press Machine is a double-sided rotary press used in pharmaceutical, chemistry, foodstuff, and electronics industries. It produces tablets of different shapes and features a fully closed housing and hardened turret surface for durability and GMP compliance. The machine enables high-speed production with a large quantity of punches. It incorporates a force feeder to enhance granule flowability and filling precision. The tableting system ensures consistent tablet weights, and the pressure can be adjusted with continuous pre-pressure. The machine also includes an automatic lubrication system and a sensor pressure protection device.

Finished Product Display



Number of Stations35435557
Tooling StandardDBBBBBS
Max Main Pressure (KN)100
Max Pre-pressure (KN)20
 Max Tablet Diameter(mm)Round tablet25181311
Irregular tablet25191613
Max Filling Depth (mm)20181515
Max Tablet Thickness (mm)8766
Max Turret Speed (r/min)60
Max Production Capacity(pcs/h)252000309600396000410400
Motor Power (kw)117.5
Overall Size (mm)1370×1170×1800
Machine Weight (kg)3200

FAQ - Have any questions?

What is the maximum output capacity of the GZP500 Series High Speed Tablet Press Machine?

The maximum output capacity of the GZP500 Series varies based on tablet specifications, but it can typically reach 410400 tablets per hour.

Can the GZP500 Series accommodate various tablet sizes and shapes?

Yes, these machines are designed to handle a wide range of tablet sizes and shapes through interchangeable tooling and adjustable settings.

What are the main features of the GZP500 Series High Speed Tablet Press Machine?

Key features include high-speed production, precision in tablet compression, adjustable compression settings, user-friendly interface, and a robust build for durability.

How user-friendly is the operation of the GZP500 Series?

The GZP500 Series is equipped with an intuitive interface and straightforward controls, making it relatively easy to operate with minimal training.

What safety measures are integrated into the GZP500 Series Model?

Safety features include emergency stop buttons, overload protection, and guards to prevent accidents during operation, ensuring a secure working environment.

Is the GZP500 Series suitable for continuous production runs?

Yes, these machines are capable of extended and continuous production runs while maintaining consistent quality.

What materials can the GZP500 Series handle for tablet production?

The GZP500 Series can process various materials including powders, granules, and mixtures used in pharmaceutical or similar industries.

How is the maintenance schedule for the GZP500 Series High Speed Tablet Press?

The machines are designed for easy maintenance, with accessible parts and a maintenance schedule outlined in the user manual for optimal performance.

Does the GZP500 Series offer customization options?

Yes, they can be customized to suit specific production requirements, allowing for tailored solutions based on individual needs.

What technical support is provided with the purchase of the GZP500 Series Model?

Comprehensive technical support, including initial setup assistance, training, and ongoing troubleshooting guidance, is typically provided for smooth operations.

Investment Return Analysis: Growth Prospects for GZP500 Series High-Speed Tablet Press Machine

Market Potential:

Industry Demand: The pharmaceutical and nutraceutical industries require high-speed and precise tablet production, creating a robust market demand for efficient machinery like the GZP500 Series.

Industry Growth: The continual growth of pharmaceuticals and nutraceuticals globally fuels the need for advanced and high-speed tablet production equipment.


Competitive Advantage:

Speed and Precision: The GZP500 Series offers high-speed operation and precise tablet compression, giving it an edge over slower or less accurate models.

Customizability: Its ability to accommodate various tablet sizes and shapes caters to diverse market needs, enhancing its appeal.


Technological Advancements:

Innovation Potential: Future technological upgrades could further boost productivity and efficiency, keeping the machine competitive.

R&D Investment: Continued research and development efforts may lead to improved functionalities and increased market competitiveness.


Regulatory Compliance:

Quality Standards: Compliance with industry regulations ensures product quality, meeting stringent manufacturing standards and bolstering credibility.

Adaptability: Its adaptability to changing regulatory requirements ensures long-term market relevance and compliance.



The GZP500 Series High-Speed Tablet Press Machine holds substantial growth potential in the expanding pharmaceutical and nutraceutical industry. Investing in this advanced tablet press positions businesses to capitalize on the rising demand for high-speed and precise tablet production machinery.
