Rotary Tablet Press

ZP27 Automatic Tablet Press Machine

Elevate your tablet production with our advanced tablet press solutions.

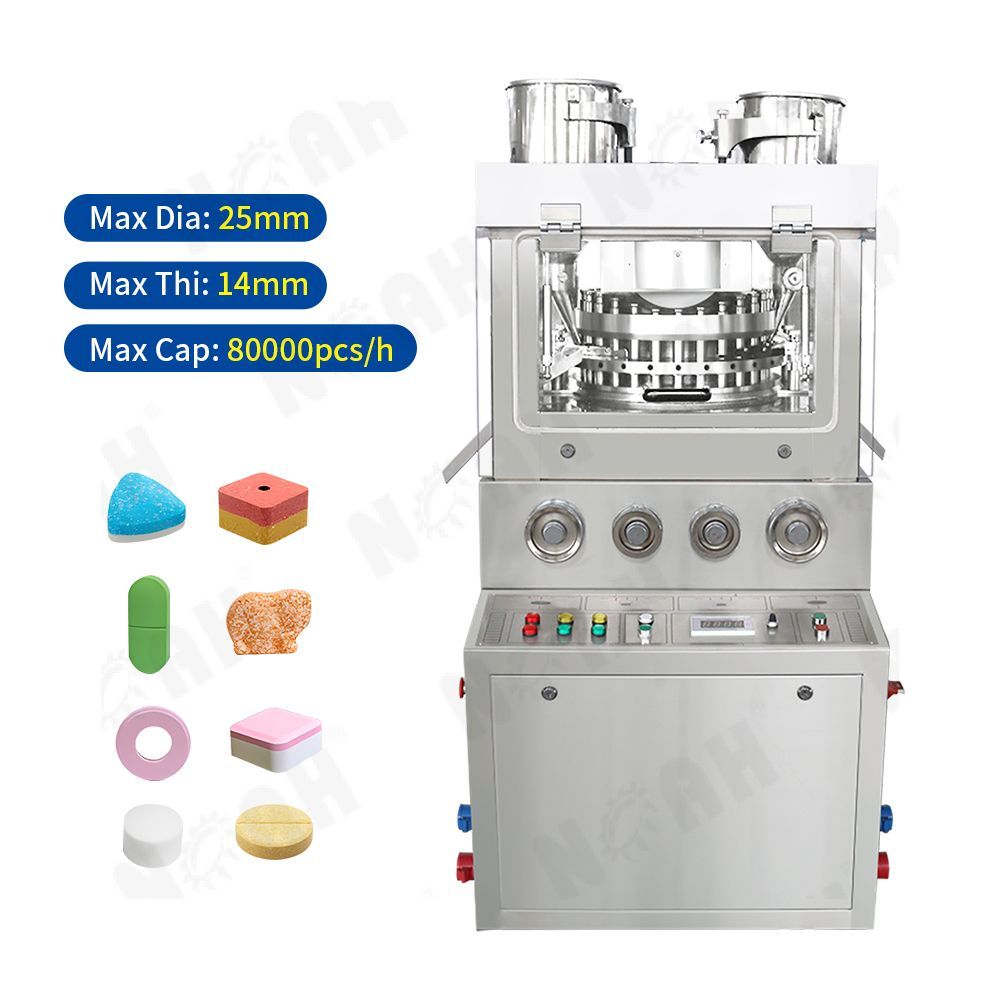

ZP27 Automatic Tablet Press Machine

Fully enclosed stainless steel construction.

Transparent windows for clear observation

Convenient location of controllers and operation unit.

Adjustable turret speed.

Overload protection unit.


Description

Tablet/Capsules

Applications

The ZP27 Automatic Tablet Press Machine is primarily used in the pharmaceutical industry, as well as in the chemical, food, and electronic industries. It is designed to press thick tablets, making it suitable for various applications within these industries.


Tablet Molding Machine

Features

  1. Fully enclosed stainless steel construction: The machine's exterior is fully enclosed with stainless steel, ensuring durability and preventing cross-contamination.

  2. Transparent windows for clear observation: The machine is equipped with transparent windows, allowing for easy monitoring and observation of the tablet pressing process. The windows can be opened for convenient cleaning and maintenance.

  3. Convenient location of controllers and operation unit: All the controllers and the operation unit are strategically located for easy access and operation.

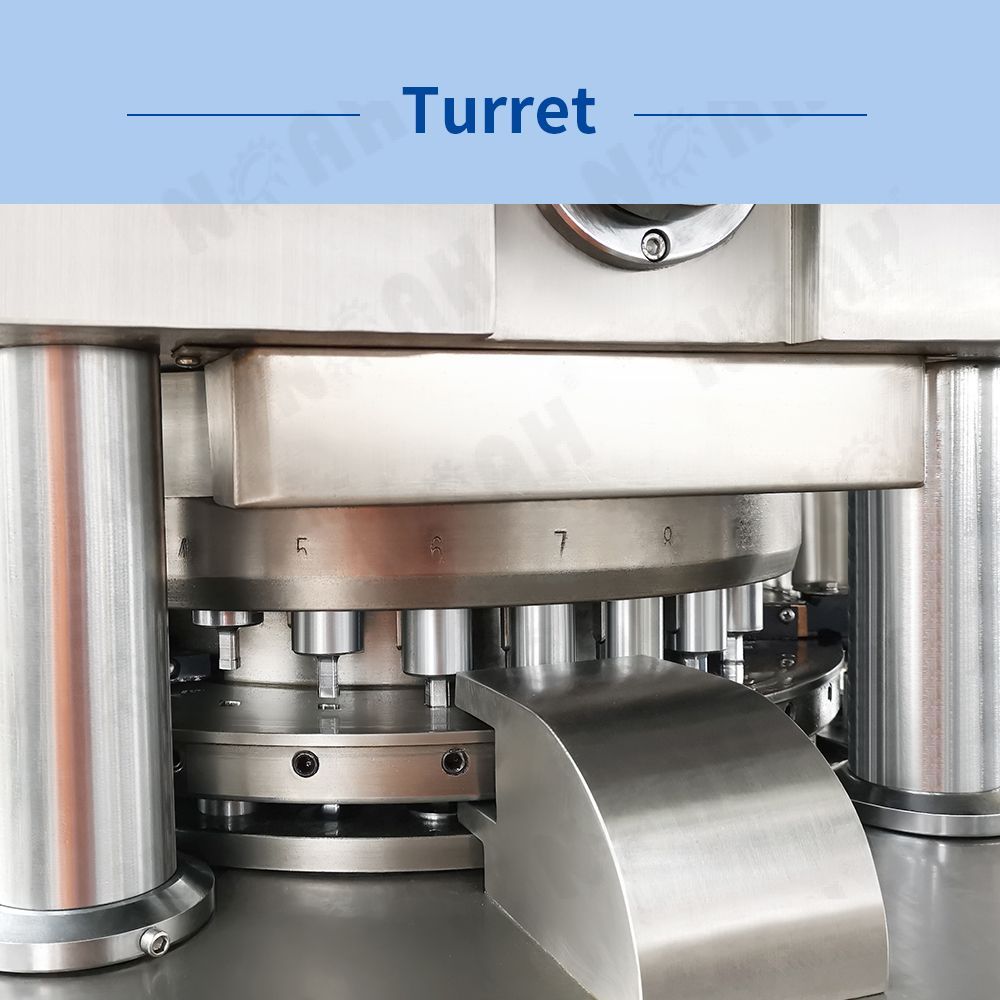

  4. Adjustable turret speed: The speed of the turret can be adjusted according to the specific requirements of tablet production.

  5. Overload protection unit: The machine is equipped with an overload protection unit to prevent damage to punches and other parts. In the event of an overload, the machine automatically stops to prevent further damage.



The ZP27 Automatic Tablet Press Machine is a double-press type, continuous automatic tablet press machine. It is designed specifically for pressing thick tablets. The machine is commonly utilized in the pharmaceutical industry, as well as in the chemical, food, and electronic industries.

Its exterior is fully enclosed with stainless steel, ensuring durability and preventing cross-contamination during tablet production. Transparent windows are integrated into the machine, providing a clear view of the tablet pressing process. These windows can be opened, allowing for easy cleaning and maintenance of the machine.

The controllers and operation unit are conveniently located for user-friendly operation. The turret speed can be adjusted to meet specific production requirements. Additionally, an overload protection unit is installed to prevent damage to punches and other components. In the event of an overload, the machine automatically stops to avoid further damage.

Overall, the ZP27 Automatic Tablet Press Machine combines reliability, convenience, and efficiency, making it an ideal choice for the production of thick tablets in various industries.


Product Video

ZP27 Automatic Tablet Press Machine

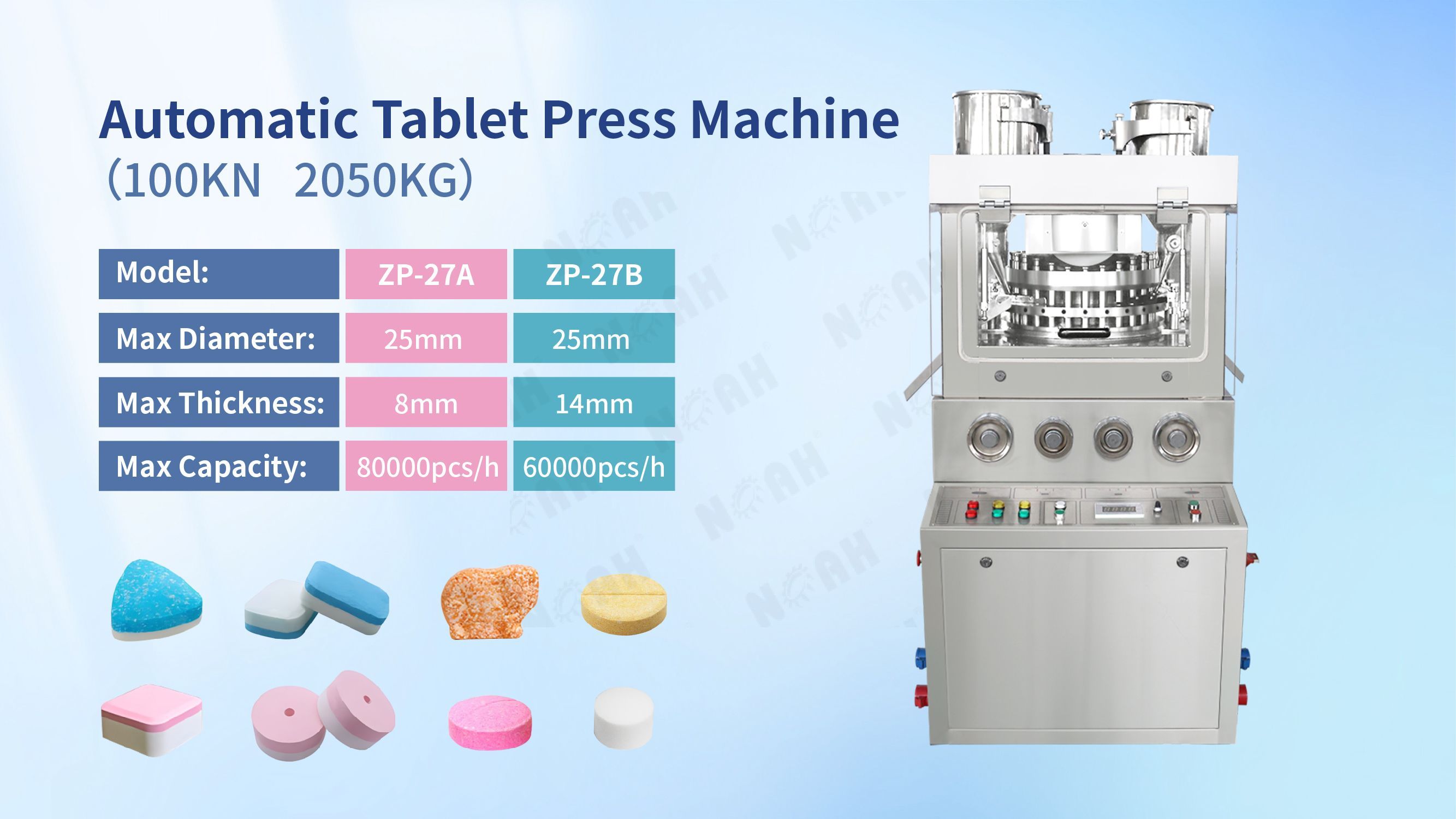

Specifications

ModelZP27A (Large tablets)ZP27B(Thick tablets)
Dies27 sets27 sets
Max Pressure100 KN100 KN
Max Dia of Tablet25 mm30 mm
Max Depth of Filling18mm29 mm
Max Thickness of Tablet8 mm14 mm
Max production80000 pcs/h60000 pcs/h
Motor7.5KW, 380V/50Hz11KW, 380V/50Hz
Overall Size1240*980*1850 mm1240*980*1850 mm
Net Weight2050KG2050KG


FAQ - Have any questions?

What is the production capacity of the ZP27 Automatic Tablet Press Machine?

The production capacity of the ZP27 varies depending on the size and specifications of the tablets being manufactured. However, it typically ranges from 60000 to 80000 tablets per hour.

Can the ZP27 accommodate various types and sizes of tablets?

Yes, the ZP27 is designed to handle a wide range of tablet sizes and shapes through interchangeable tooling and adjustable settings.

What are the main features of the ZP27 Automatic Tablet Press Machine?

Key features include high precision in tablet production, an intuitive user interface, adjustable compression settings, and a robust build for durability.

How user-friendly is the operation of the ZP27?

The machine is designed with a user-friendly interface and straightforward controls, making it relatively easy to operate after minimal training.

What safety measures are integrated into the ZP27?

Safety features include emergency stop buttons, overload protection, and guards to prevent accidents during operation, ensuring a secure working environment.

Is the ZP27 suitable for continuous production runs?

Yes, the ZP27 is capable of extended and continuous production runs, maintaining consistent quality throughout the process.

What kind of materials can the ZP27 handle?

The machine can process a wide variety of materials, including powders, granules, and mixtures used for pharmaceutical or similar tablet production.

How is the maintenance schedule for the ZP27?

The machine is designed for ease of maintenance, with accessible parts and a maintenance schedule outlined in the user manual for optimal performance.

Does the ZP27 offer any customization options?

Yes, the machine can be customized to suit specific production requirements, allowing for tailored solutions based on individual needs.

What technical support is provided with the purchase of the ZP27 Automatic Tablet Press Machine?

Comprehensive technical support, including initial setup assistance, training, and ongoing troubleshooting guidance, is typically provided to ensure smooth operations.
