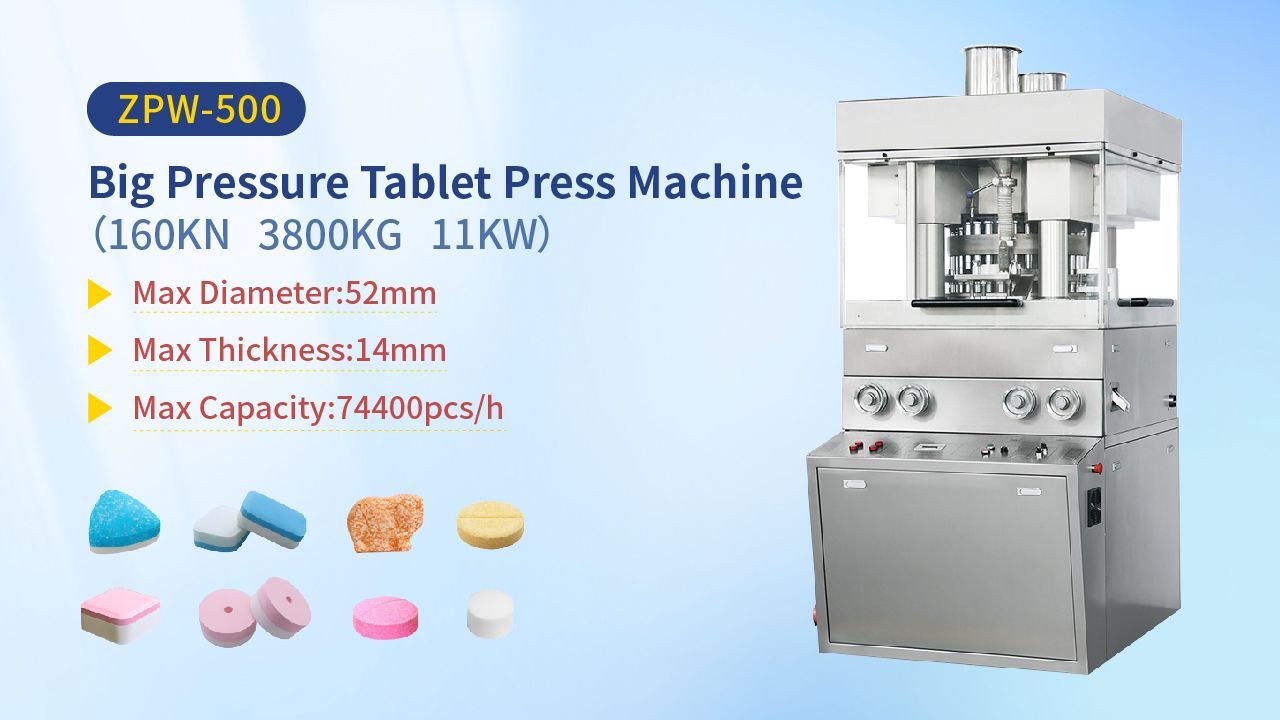

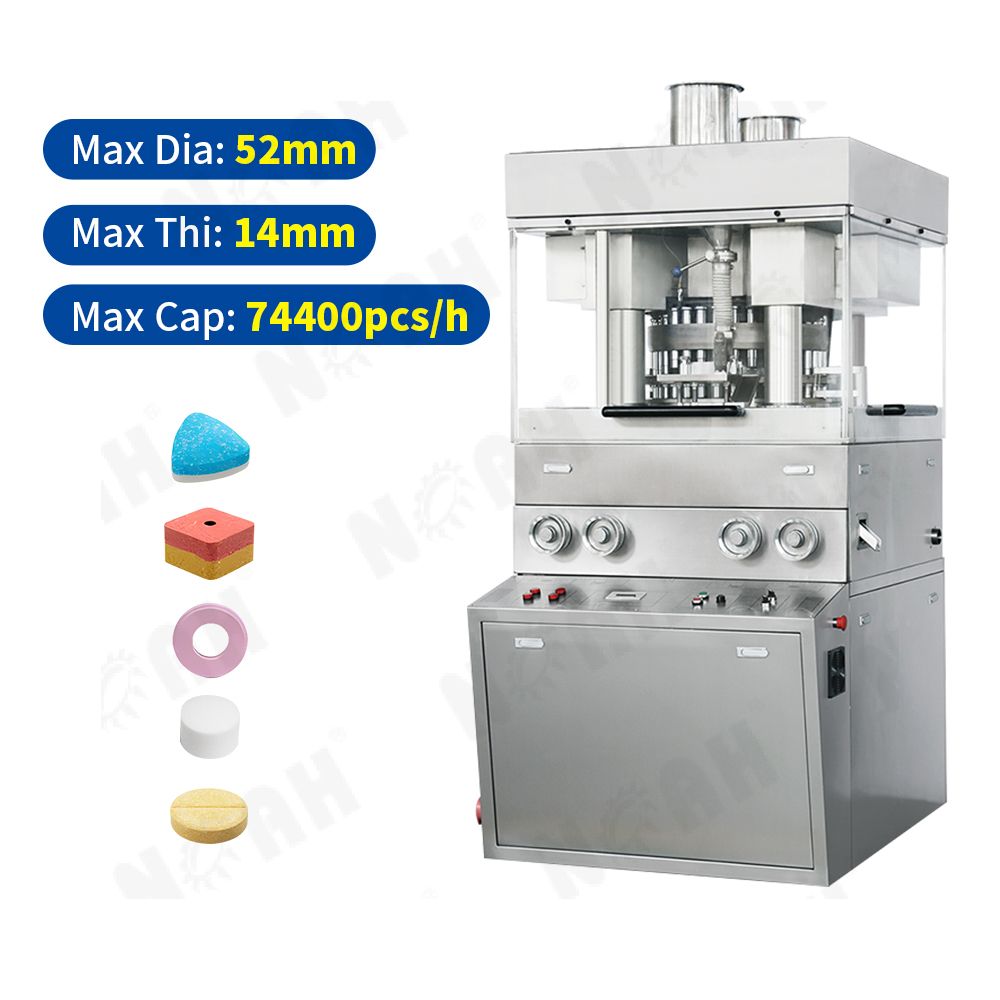

ZPW500 Series Big Pressure Tablet Press Machine
Elevate your tablet production with our advanced tablet press solutions.
After-Sales Provided: Engineers available to service machinery overseas.
Warranty: 3-Year
Lead Time 14 Days Fast Delivery
Product Function: For Tablet Pill Pressing
Certification: cGMP CE ISO SGS etc.
MOQ.: 1
Loading Port: Shanghai / Yangshan/Yangzhou/Nanjing
Description
Applications
● Pharmaceutical industry: Specifically designed for the production of effervescent tablets, meeting the sector’s effervescent tablet manufacturing needs.
● Chemical industry: Suitable for the production of effervescent tablets, catering to the industry’s effervescent tablet production requirements.
Features

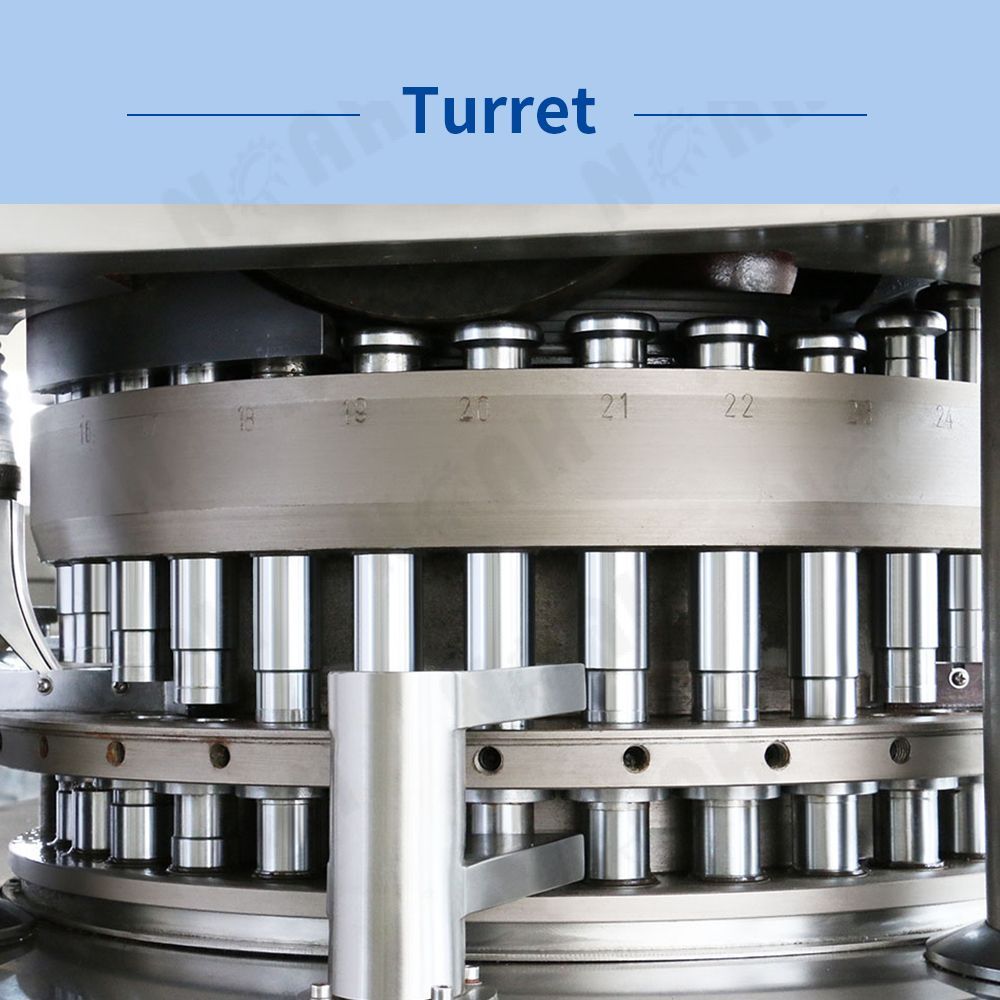

● Double-pressure automatic rotation: The machine utilizes a double-pressure mechanism and automatic rotation to efficiently press granular raw materials into tablets.
● Versatile tablet production: Capable of producing round, engraved, and special-shaped tablets, including two-color tablets.
● Stainless steel construction: The outer cover is made of stainless steel and features a closed form, while the internal table is also made of stainless steel. This ensures surface luster, prevents cross-contamination, and meets GMP requirements.
● Plexiglass perspective window: Equipped with a plexiglass window that provides a clear view of the tablet pressing process, allowing for visual monitoring and inspection.
● A highly efficient and versatile tablet press specifically designed for effervescent tablet production; features a double-pressure automatic rotation mechanism that effectively presses granular raw materials into tablets of various shapes (round, engraved, special-shaped) and even two-color tablets.
● Built with full stainless steel construction: closed stainless steel outer cover ensures durability and cleanliness, while stainless steel internal table maintains a lustrous surface—both design elements prevent cross-contamination and meet GMP requirements.
● Equipped with a notable plexiglass perspective window, allowing operators to visually observe the tablet pressing process in real time; enables real-time monitoring and inspection, enhancing operational control and quality assurance.
Product Video
Specifications
| ITEM | ZPW500-21 | ZPW500-27 | ZPW500-31 | |
| Dies | sets | 21 | 27 | 31 |
| Max. main pressure | KN | 160 | 160 | 160 |
| Max. sheet diameter | mm | 52 | 40 | 30 |
| Max. filling depth | mm | 29 | 29 | 29 |
| Max. thickness | mm | 14 | 14 | 14 |
| Max. turntable speed | r/min | 15 | 15 | 20 |
| Max. Output | pcs/h | 37800 | 48600 | 74400 |
| Main motor power | KW | 11 | 11 | 11 |
| Overall dimensions | mm | 1030*1320*1850 | 1030*1320*1850 | 1030*1320*1850 |
| Machine weight | kg | 3800 | 3800 | 3800 |
FAQ - Have any questions?
What is the production capacity of the ZPW500 Effervescent Tablet Press Machine?
The production capacity of the ZPW500 varies based on tablet size and specifications. Typically, it ranges from 30000 to 88800 tablets per hour.
Can the ZPW500 handle effervescent tablet formulations effectively?
Yes, the ZPW500 is specifically designed to handle effervescent tablet formulations efficiently and with precision.
What are the key features of the ZPW500 Effervescent Tablet Press Machine?
Key features include specialized tooling for effervescent tablets, adjustable compression settings, high accuracy, and ease of operation.
Is the ZPW500 capable of producing different sizes and shapes of effervescent tablets?
Yes, the machine accommodates various sizes and shapes through interchangeable tooling and customizable settings.
How user-friendly is the operation of the ZPW500?
The machine is designed with an intuitive interface, making it relatively easy to operate with minimal training.
What safety measures are integrated into the ZPW500?
Safety features include emergency stop buttons, overload protection, and guards to ensure a secure working environment.
Can the ZPW500 handle sensitive ingredients used in effervescent tablets?
Yes, the machine is engineered to handle sensitive ingredients, maintaining the integrity of the formulation during compression.
How is the cleaning process for the ZPW500 Effervescent Tablet Press Machine?
The machine is designed for easy cleaning and maintenance, with accessible parts and a cleaning procedure outlined in the user manual.
Does the ZPW500 offer any customization options?
Yes, it can be customized to suit specific production requirements, such as specialized tooling or additional features upon request.
What technical support is provided with the purchase of the ZPW500?
Comprehensive technical support, including initial setup assistance, training, and ongoing troubleshooting guidance, is typically provided for smooth operations.
