What Is a Tablet Compression Machine? A Comprehensive 2025 Guide

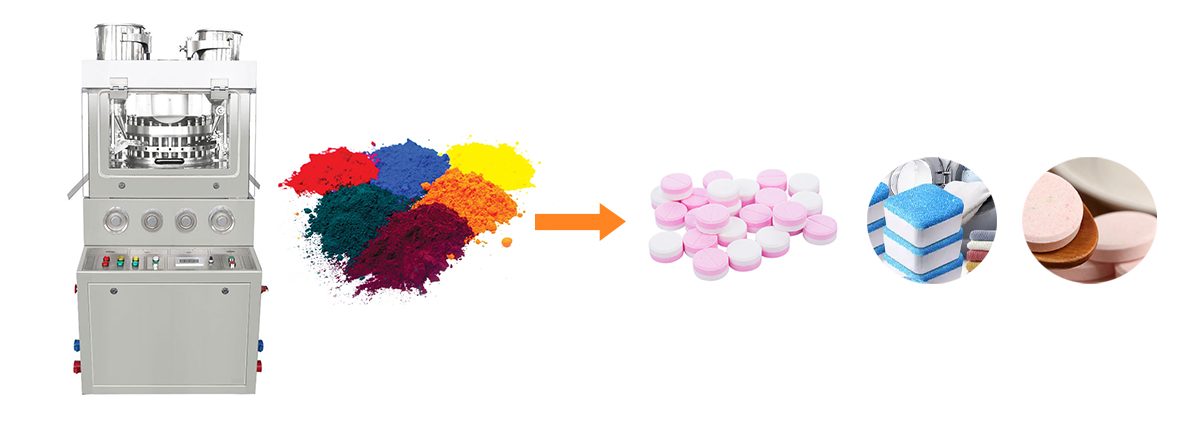

A tablet compression machine (also known as a tablet press) is a specialized industrial equipment designed to compress powdered, granulated, or crystalline materials into uniform, solid tablets—a critical step in pharmaceutical, nutraceutical, food, and chemical manufacturing. Used to produce everything from over-the-counter medications and vitamin supplements to industrial catalysts, these machines ensure consistent tablet weight, hardness, and dissolution rate, while adhering to strict regulatory standards. YANGZHOU NUOYA MACHINERY CO.,LTD. is a trusted provider of tablet compression machines, offering solutions tailored to small-scale R&D, medium-batch production, and large-scale industrial operations. Below is a detailed breakdown of how these machines work, their types, key features, applications, and why YANGZHOU NUOYA’s offerings stand out.

How Does a Tablet Compression Machine Work?

1. Material Feeding: Powdered or granulated raw materials (e.g., drug formulations, vitamin blends, or chemical powders) are loaded into a hopper. A feeding mechanism (e.g., a rotating feeder or screw conveyor) evenly distributes the material into the die cavities—small, cylindrical openings that define the tablet’s size and shape.

2. Dosage Adjustment: The machine’s filling depth is calibrated to control the amount of material in each die cavity, ensuring uniform tablet weight (a critical factor for pharmaceutical compliance).

3. Compression: Two punches (upper and lower) move toward each other, applying high pressure (typically 5–50 MPa) to the material in the die. This pressure bonds particles together, forming a solid tablet with the desired hardness and density.

4. Ejection: After compression, the lower punch rises to push the finished tablet out of the die cavity. The tablet is then collected via a conveyor or chute, ready for further processing (e.g., coating, packaging).

5. Quality Control (Optional): Industrial-grade machines from YANGZHOU NUOYA may integrate in-line inspection features (e.g., weight checks, hardness testing, or visual scans for cracks) to reject defective tablets, ensuring compliance with GMP, FDA, and CE standards.

Types of Tablet Compression Machines by YANGZHOU NUOYA

1. Lab-Scale Tablet Compression Machine

• Key Specifications:

• Production Capacity: Up to 10,000 tablets per hour (suitable for R&D trials, small-batch custom production, or formula validation).

• Tablet Size: Compatible with 2–12 mm diameter dies (supports round, oval, or custom-shaped tablets).

• Features: Compact footprint, manual or semi-automatic operation, and adjustable compression pressure (ideal for testing material flow and tablet hardness).

• Ideal Users: Pharmaceutical R&D labs, academic research facilities, or small supplement brands testing new products.

2. Semi-Automatic Tablet Compression Machine

• Key Specifications:

• Production Capacity: 10,000–50,000 tablets per hour (adjustable based on tablet size and material properties).

• Tablet Quality: Ensures ±2% weight variation and consistent hardness (10–40 N), meeting commercial nutraceutical and generic pharmaceutical standards.

• Features: Automated feeding and ejection, adjustable punch/die sets for quick product changes, and stainless steel construction for easy cleaning.

• Ideal Users: Regional pharmaceutical companies, nutraceutical manufacturers, or contract manufacturing organizations (CMOs) handling medium-volume orders.

3. Fully Automatic Tablet Compression Machine

• Key Specifications:

• Production Capacity: 50,000–200,000+ tablets per hour (supports mass production of prescription drugs, over-the-counter medications, or large-scale supplement lines).

• Precision & Compliance: ±1% weight variation, in-line hardness and thickness monitoring, and PLC touchscreen control with batch data logging (GMP-compliant).

• Features: Multi-station die tables (up to 45 stations), automatic lubrication systems to prevent material sticking, and integration with upstream (granulators, blenders) and downstream (coaters, packaging) equipment.

• Ideal Users: Large pharmaceutical manufacturers, multinational nutraceutical brands, or industrial chemical producers requiring consistent, high-volume output.

Key Features of YANGZHOU NUOYA’s Tablet Compression Machines

• Precision Control: Adjustable compression pressure, filling depth, and punch speed to achieve uniform tablet weight, hardness, and dissolution rate.

• GMP-Compliant Design: Stainless steel 304/316L construction (resistant to corrosion and contamination), smooth surfaces for easy sanitization, and batch data logging for traceability.

• Versatility: Compatible with a wide range of materials (powders, granules, coated particles) and tablet shapes/sizes (round, oval, scored, or custom embossed).

• Durability: High-quality punches and dies (tungsten carbide or stainless steel) for long service life, reducing maintenance costs and downtime.

• User-Friendly Operation: Intuitive touchscreen interfaces, quick-change punch/die sets, and automated error alerts (e.g., material shortage, overload protection) to simplify operation.

Applications of Tablet Compression Machines

• Pharmaceuticals: Producing prescription drugs (e.g., antibiotics, antihypertensives), over-the-counter medications (e.g., pain relievers, antacids), and generic pharmaceuticals—ensuring precise dosing and regulatory compliance.

• Nutraceuticals: Manufacturing vitamin, mineral, protein, or herbal supplement tablets (e.g., multivitamins, collagen tablets) for consumer convenience and consistent nutrient delivery.

• Food Industry: Creating functional food tablets (e.g., protein bars in tablet form, dietary fiber supplements) or flavor-enhanced tablets (e.g., breath mints, effervescent tablets).

• Chemicals & Materials: Producing industrial tablets (e.g., catalysts, water treatment chemicals, detergent tablets) for easier handling, storage, and application.

Benefits of Choosing YANGZHOU NUOYA’s Tablet Compression Machines

• Cost Efficiency: Automated models reduce labor costs and material waste (±1% weight variation minimizes scrap), while durable components lower long-term maintenance expenses.

• Compliance Readiness: Pre-engineered to meet global standards (GMP, FDA, CE), eliminating the need for costly retrofits or regulatory delays.

• Scalability: Machines can be upgraded (e.g., adding inspection modules, increasing die stations) as production needs grow, ensuring long-term value.

• After-Sales Support: Comprehensive service including installation, operator training, 12-month warranties, and global technical support—minimizing downtime and ensuring smooth operation.

Conclusion
