Filling and Packing Machine

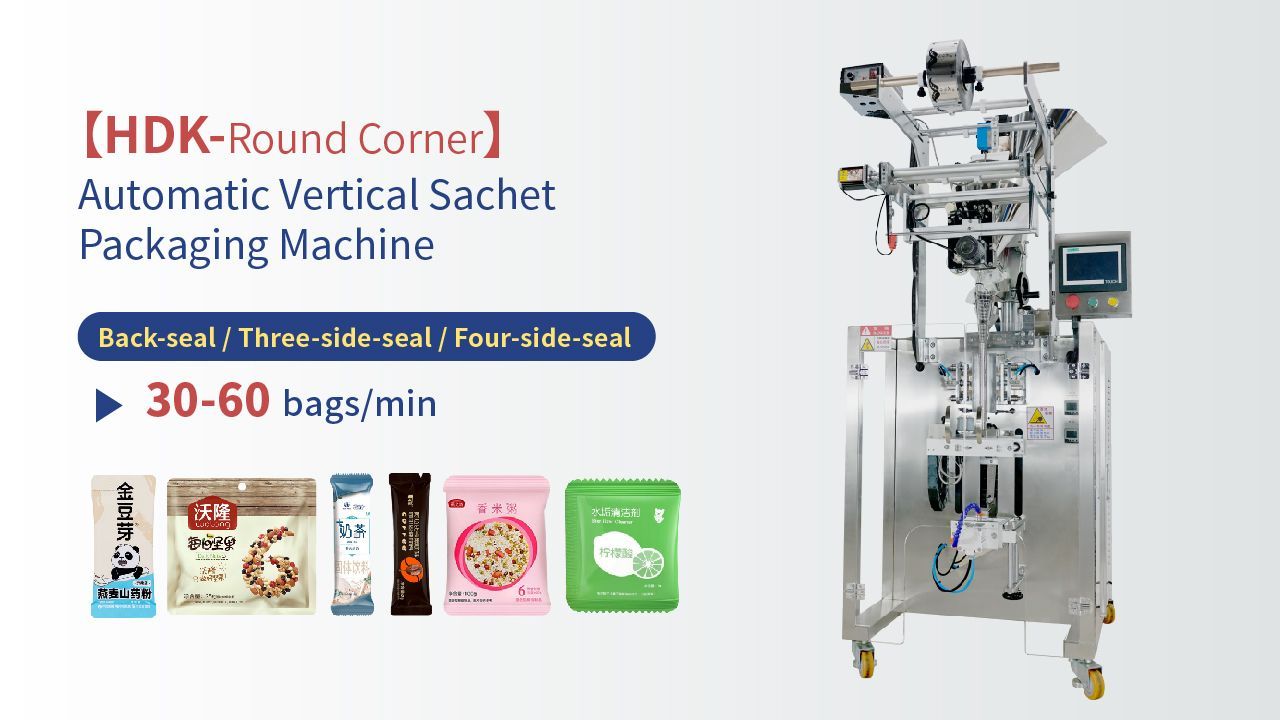

HDK Intermittent Vertical Packaging Machine (Rounded Cut)

Optimize your pharmaceutical production line with our advanced Automatic Filling Machine, ensuring seamless automation and exceptional accuracy for precise and efficient filling.

HDK Intermittent Vertical Packaging Machine (Rounded Cut)

Versatile Powder Handling

Wide Filling Range

High Productivity

Customizable Packaging

User-Friendly Operation

Adaptable Filling Systems

Cost-Effective Maintenance

Description

Powder Filling Machine

Applications

This machine is suitable for various materials such as granules, oatmeal, melon seeds, white sugar, etc. in products of food, chemical, pharmaceutical and other industries, and packaging materials in 120-400 mesh fine powder, such as seasoning packaging, etc.


HDCK Vertical Fully Automatic Bag Packing Machine

Features

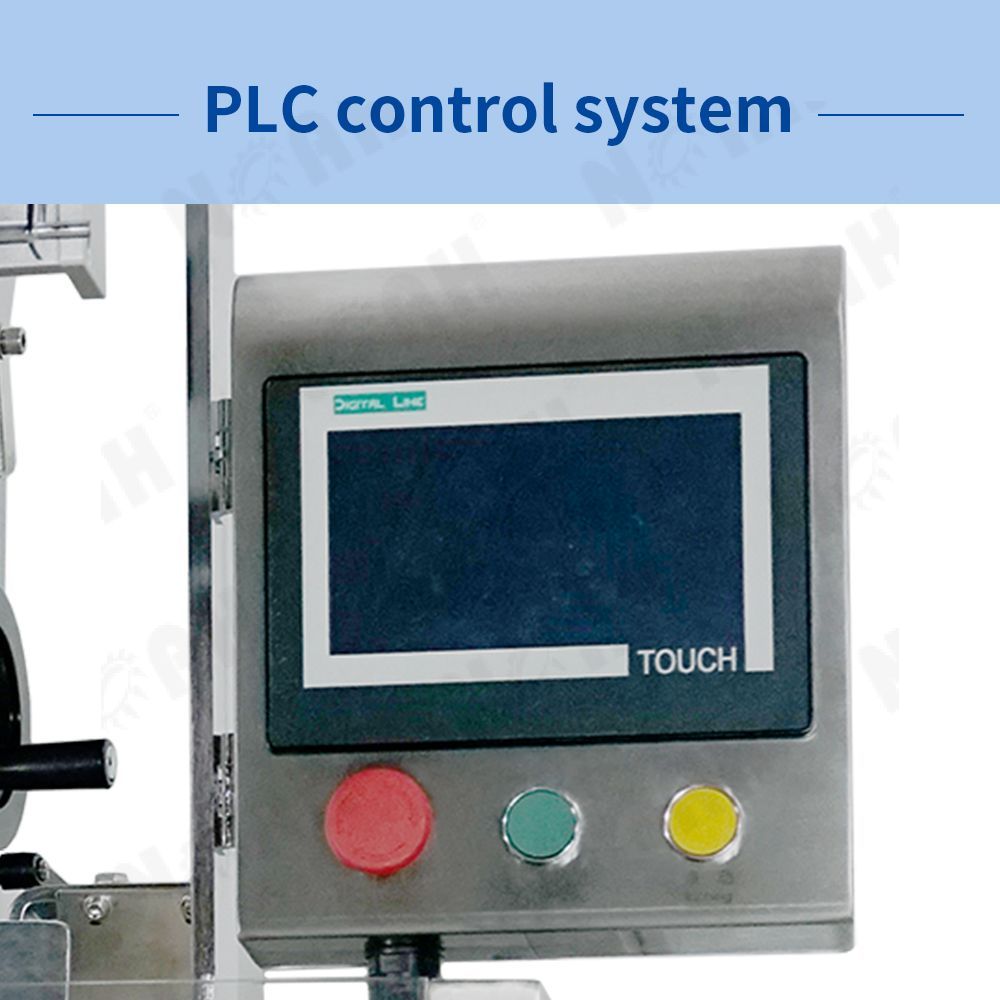

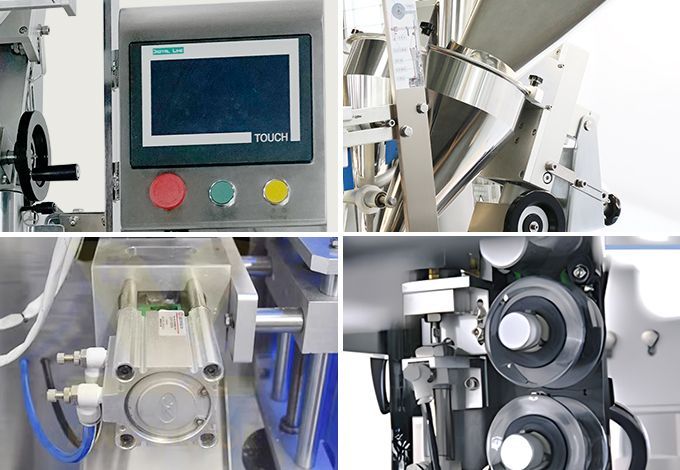

This machine can automatically complete bag making, metering, filling, sealing, slitting, counting, printing batch numbers, etc. It uses an advanced microcomputer controller to drive the stepper motor to control the bag length and trademark positioning. The machine has stable performance, convenient adjustment, accurate detection, and extremely small errors caused by intelligent control. The machine can be equipped with corresponding feeding mechanisms for granules, multiple materials, liquids, powders, and sauces according to different materials. Adding accessories can complete functions such as date printing, vibration feeding, and easy tearing.

HDK Vertical Packaging Machine is meticulously engineered to excel in controlled environments, ensuring optimal performance and precision packaging. With strict operational requirements in mind, this machine guarantees reliable and efficient packaging processes for various industries.

Product Video

Vertical Packing Machine

Specifications

Model:Intermittent clamping and pulling vertical packaging machine

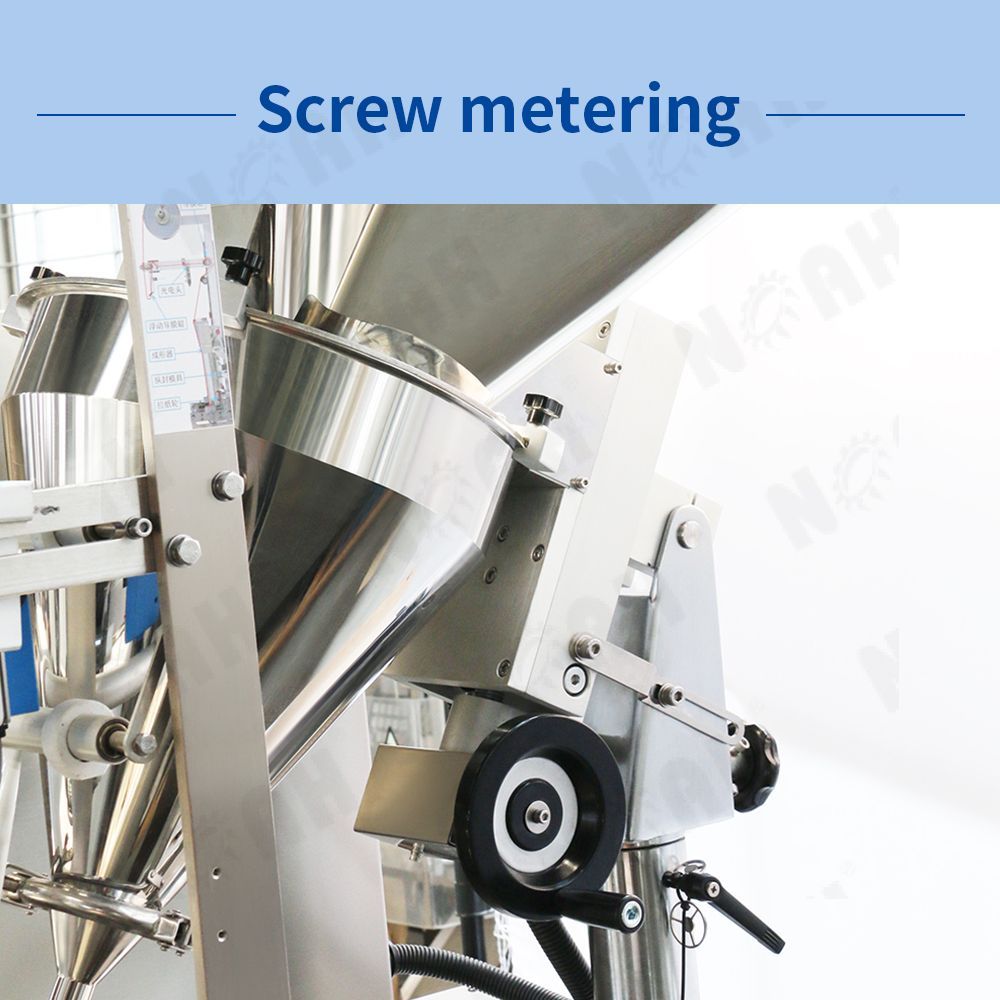

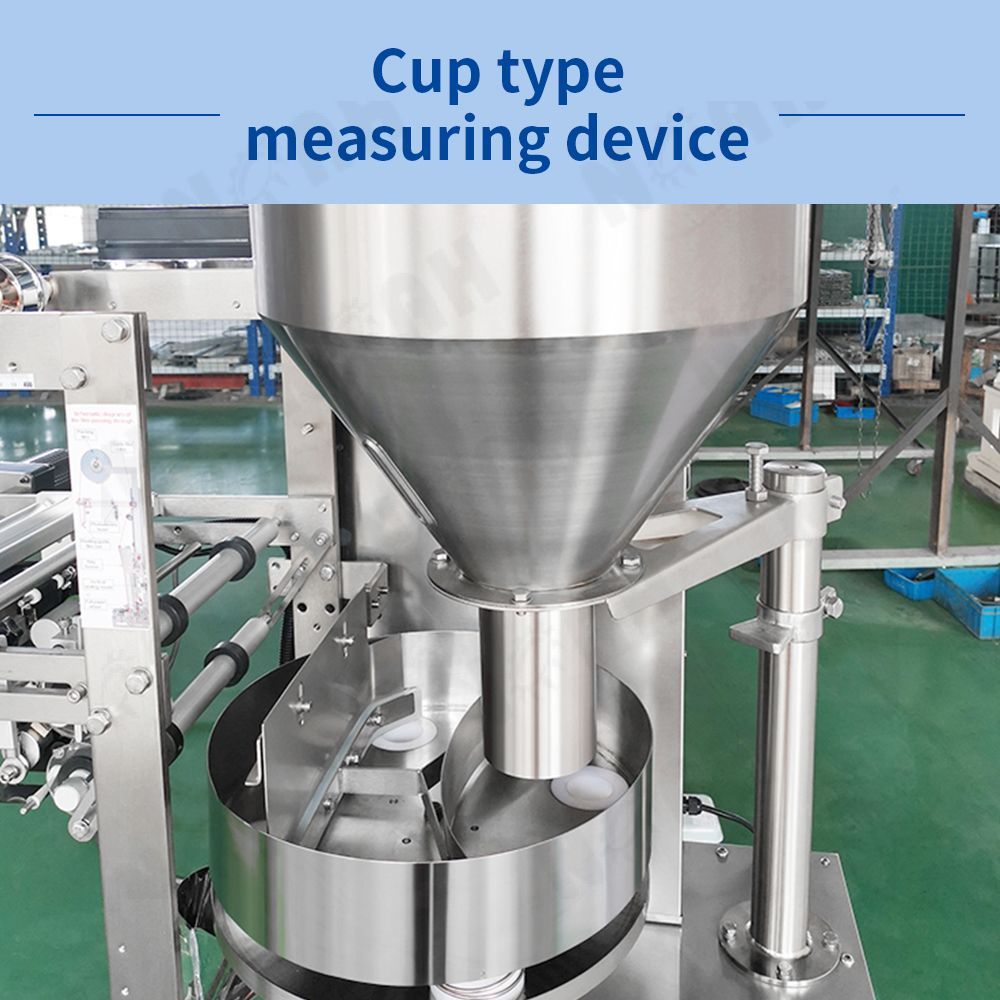

Measuring method:Screw feeding/measuring cup feeding/sauce feeding

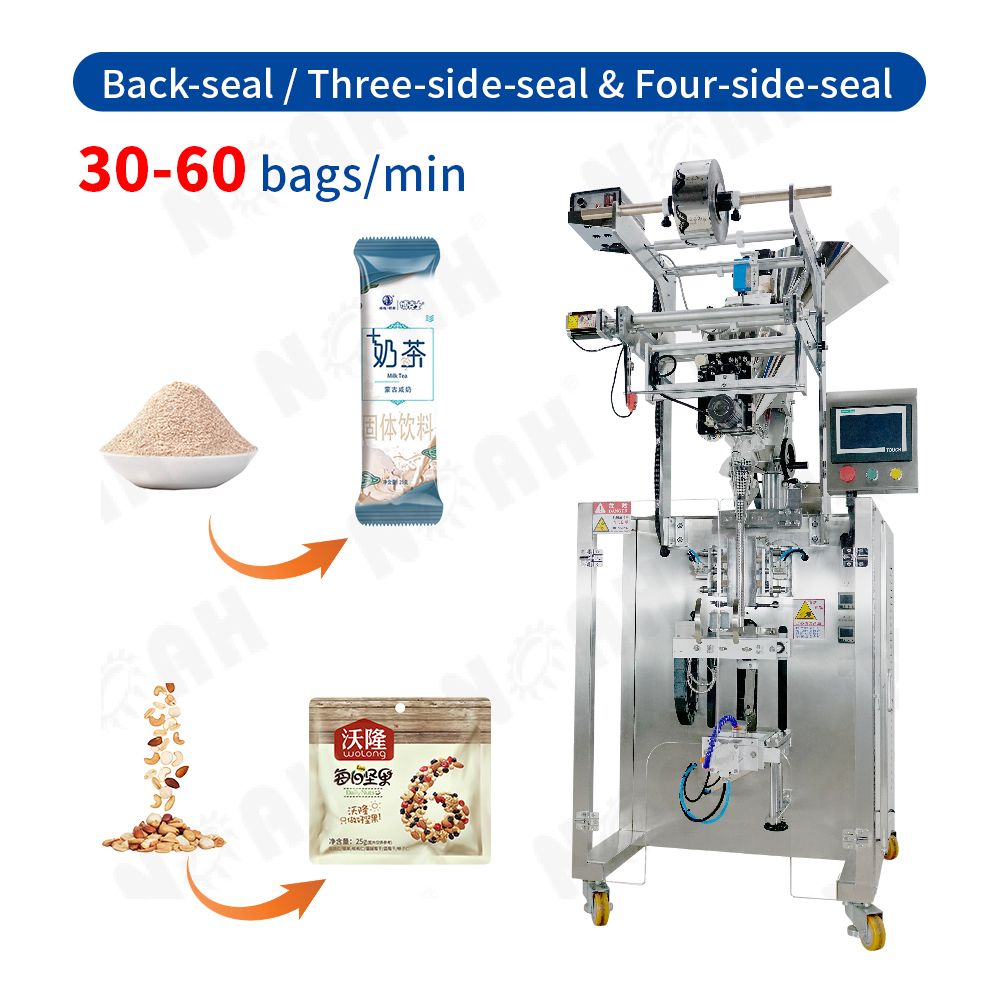

Bag making type:Back seal/three side seal/four side seal
Bag making volume:5-300ml(Special specifications can be ordered separately)
Bag size:Film width40-150mm (special specifications can be ordered separately)
Bag length30-170mm (special specifications can be ordered separately)
Packaging speed:30-60 bags/minute (depending on the nature of the material)
Machine weight:320kg
Dimensions:900×700×1800mm
Input power:220V~50hz
Total power:1.5kw


FAQ - Have any questions?

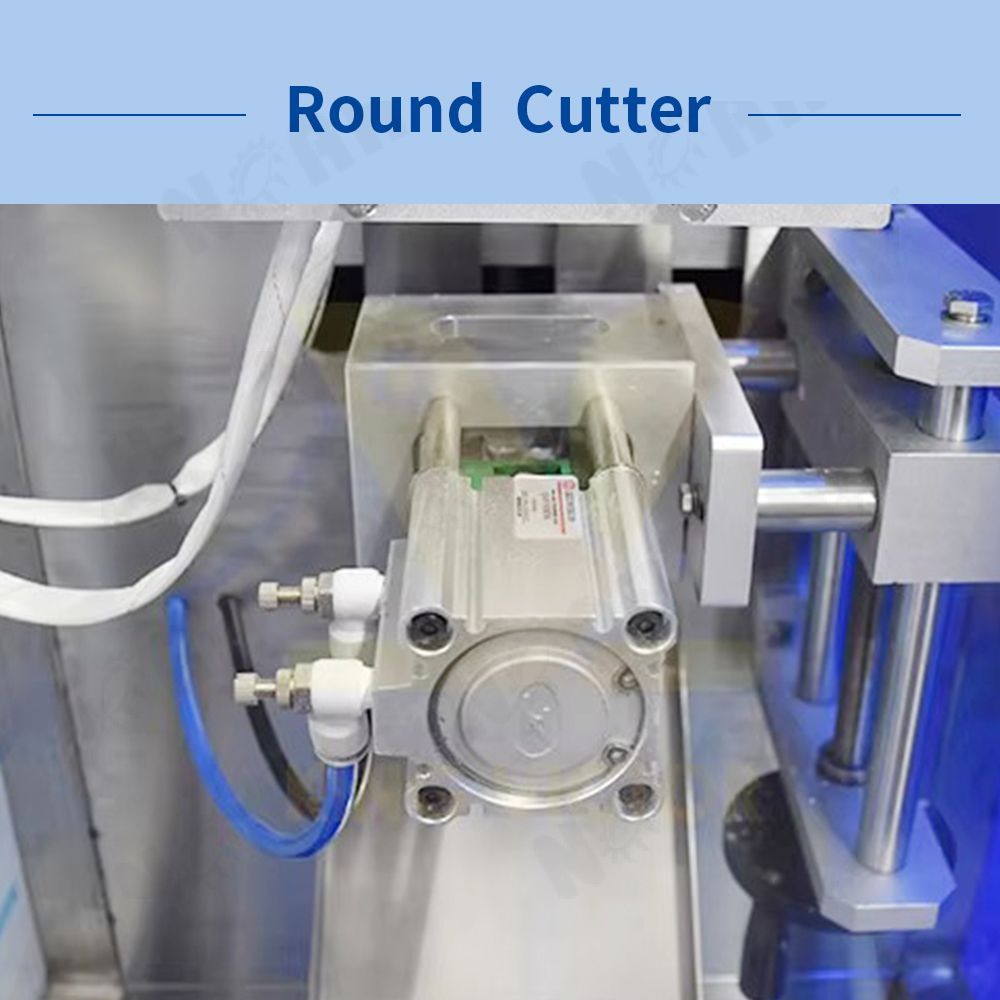

What advantages do the rounded corners of the HDK Intermittent Vertical Packaging Machine offer over machines with traditional square corners?

The rounded corners on the machine help to reduce the risk of bag punctures and tears during the packaging process, enhancing the overall aesthetic appeal of the final product.

Can the HDK Intermittent Vertical Packaging Machine accommodate a wide range of bag sizes to meet different packaging needs?

Yes, the machine is designed to be versatile and can be adjusted to handle various bag sizes, offering flexibility for different product packaging requirements.

How does the HDK Intermittent Vertical Packaging Machine ensure precise and consistent filling levels in each bag?

The machine is equipped with advanced measuring and filling mechanisms that ensure accurate dosing and consistent filling levels, resulting in uniform packaging across all products.

What safety features are integrated into the design of the HDK Intermittent Vertical Packaging Machine to protect both operators and the machine itself?

The machine is equipped with safety sensors, emergency stop buttons, and protective guards to ensure safe operation and prevent accidents during use.

Does the HDK Intermittent Vertical Packaging Machine offer customizable printing options for branding and product information on the packaging?

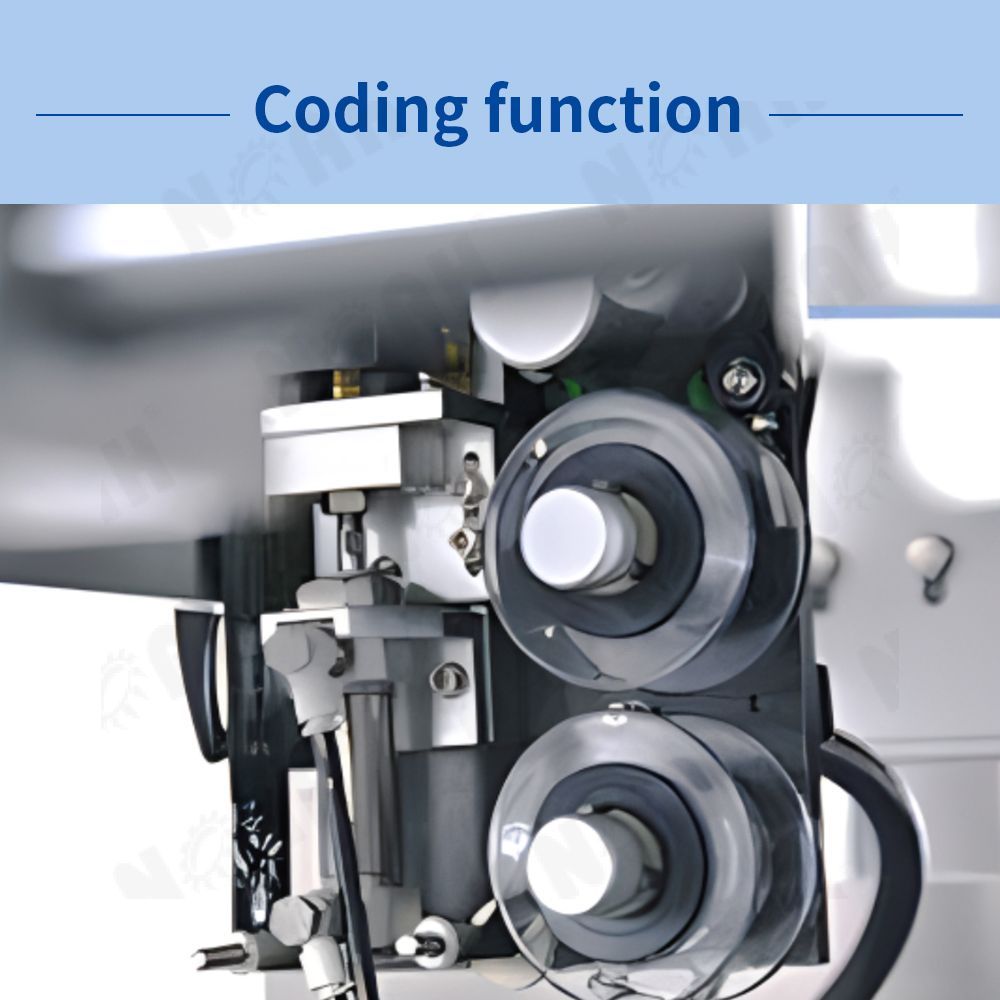

Yes, the machine can be configured to include printing modules for batch numbers, expiry dates, logos, and other essential information to meet branding and regulatory requirements.

How does the HDK Intermittent Vertical Packaging Machine handle different types of packaging materials, such as composite films and laminates?

The machine is designed to work seamlessly with various packaging materials, including composite films, laminates, cellophane, and more, ensuring compatibility with a wide range of packaging options.

What kind of maintenance schedule is recommended for the HDK Intermittent Vertical Packaging Machine to ensure optimal performance and longevity?

Regular maintenance checks, cleaning of components, and lubrication of moving parts are recommended to keep the machine in top condition and prevent unexpected downtime.

Can the HDK Intermittent Vertical Packaging Machine be easily integrated into existing production lines without significant disruption?

Yes, the machine is designed for easy integration into different production setups, and our technical support team can assist with installation and line compatibility.

How does the HDK Intermittent Vertical Packaging Machine handle product changeovers and adjustments for different packaging requirements?

The machine features quick-change parts and adjustable settings that simplify the process of switching between different products and packaging configurations.

What training and support options are available for operators to ensure they can effectively utilize the HDK Intermittent Vertical Packaging Machine?

We provide comprehensive training sessions for operators to familiarize them with the machine's operation, and our support team is available to assist with any questions or issues that may arise during use.
