Drying Machine

LFG Series Vertical Disc Dryer

LFG Series Vertical Disc Dryer, making your production more efficient and pure!

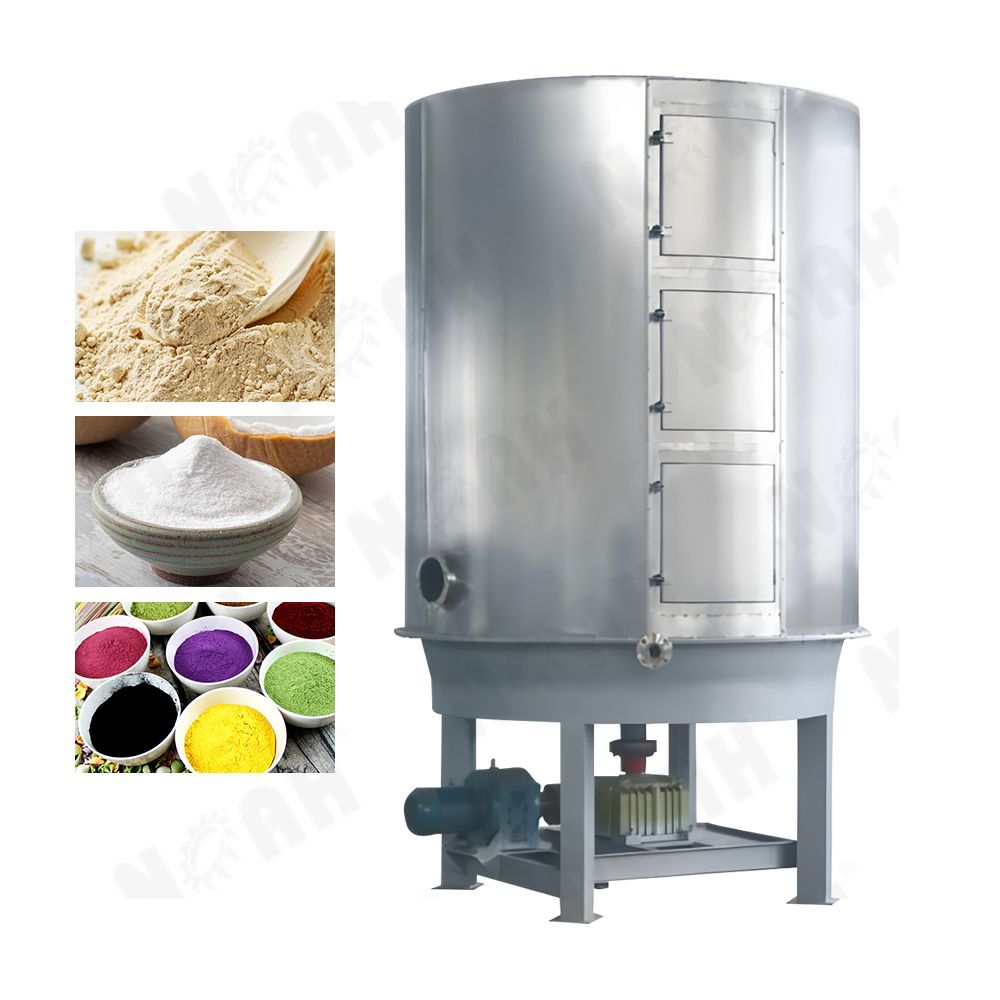

LFG Series Vertical Disc Dryer

LFG vertical disc dryer is an efficient conduction-type continuous drying equipment. It can be applied to multiple fields such as organic chemical products, inorganic chemical products, pharmaceuticals and foods, feed fertilizers, etc., to meet the drying needs of different materials.The equipment provides three types: normal pressure, closed and vacuum, as well as different specifications and material options to meet the needs of various industrial applications. In addition, it can be used in conjunction with other auxiliary equipment to further expand its functionality and flexibility.


Product Description

Applications

LFG Series Vertical Disc Dryer is widely used in various industrial fields for drying, thermal decomposition, calcination, cooling, reaction, and sublimation processes. It is particularly suitable for processing heat-sensitive and high-moisture materials. Typical applications include:


Organic Chemical Products: Polymers, resins, dyes, intermediates, etc.

Inorganic Chemical Products: Catalysts, salts, oxides, pigments, etc.

Pharmaceuticals and Food Products: Active pharmaceutical ingredients (APIs), herbal extracts, food additives, dairy products, etc.

Feed and Fertilizers: Animal feed, organic fertilizers, compound fertilizers, etc.

This dryer is ideal for continuous drying operations where product uniformity, low emissions, and energy efficiency are required.


Horizontal Boiling Dryer

Features

Precise Process Control and Strong Adaptability

The drying process can be finely adjusted by changing parameters such as material layer thickness, shaft speed, number and shape of rake arms and blades, allowing optimal performance for different materials.

Each drying disc can be independently supplied with heating or cooling medium, enabling accurate temperature control.

Material residence time can be precisely regulated.

The material flows in a single direction without back-mixing, ensuring uniform drying and stable product quality without the need for further mixing.


Simple and Convenient Operation

Easy start-up and shutdown procedures.

After feeding stops, the rake system quickly clears out remaining material.

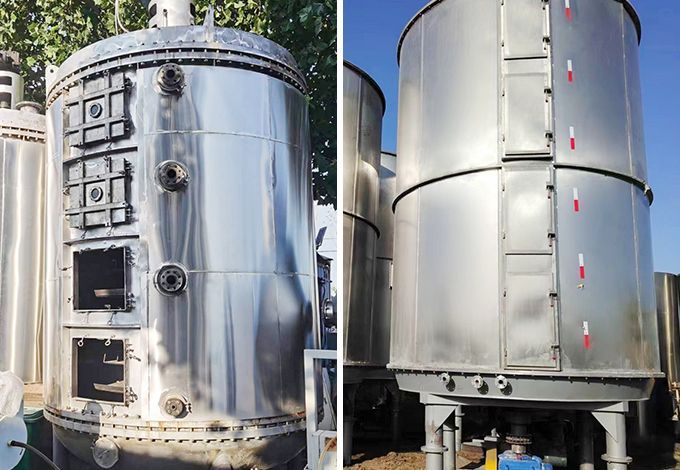

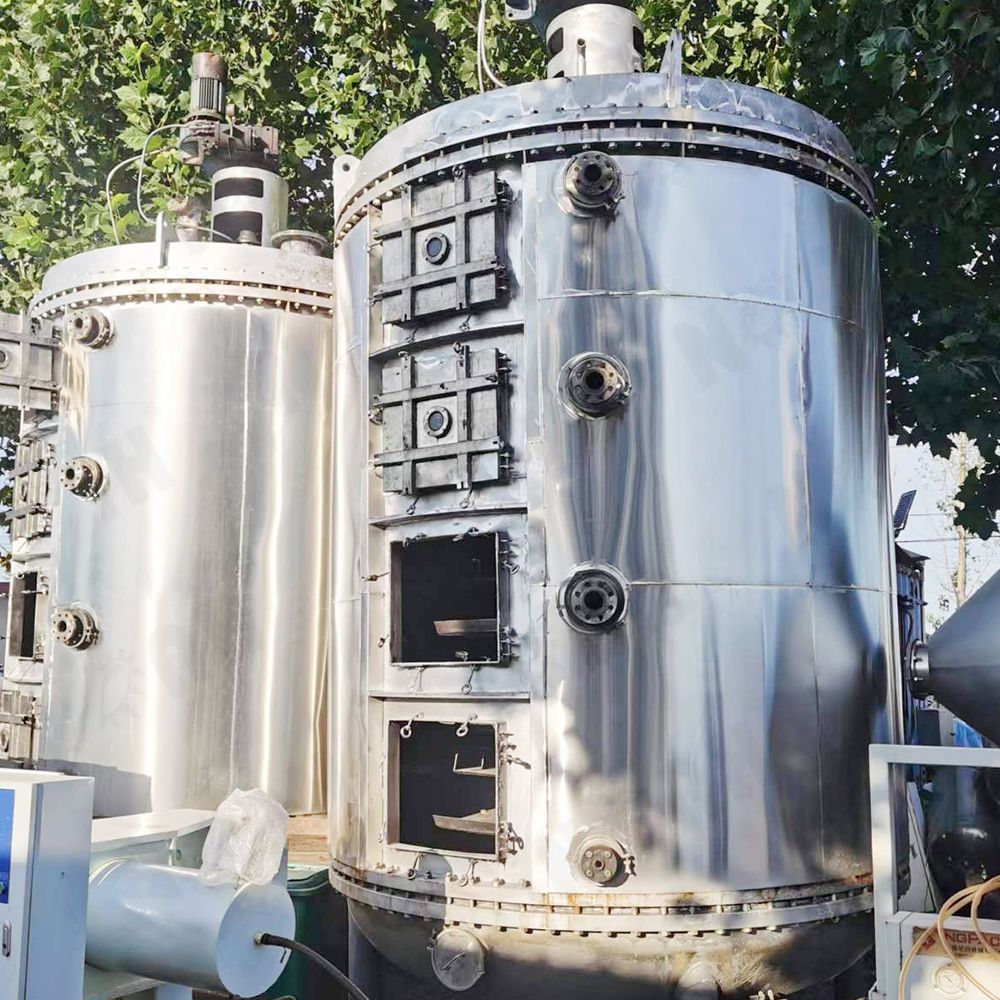

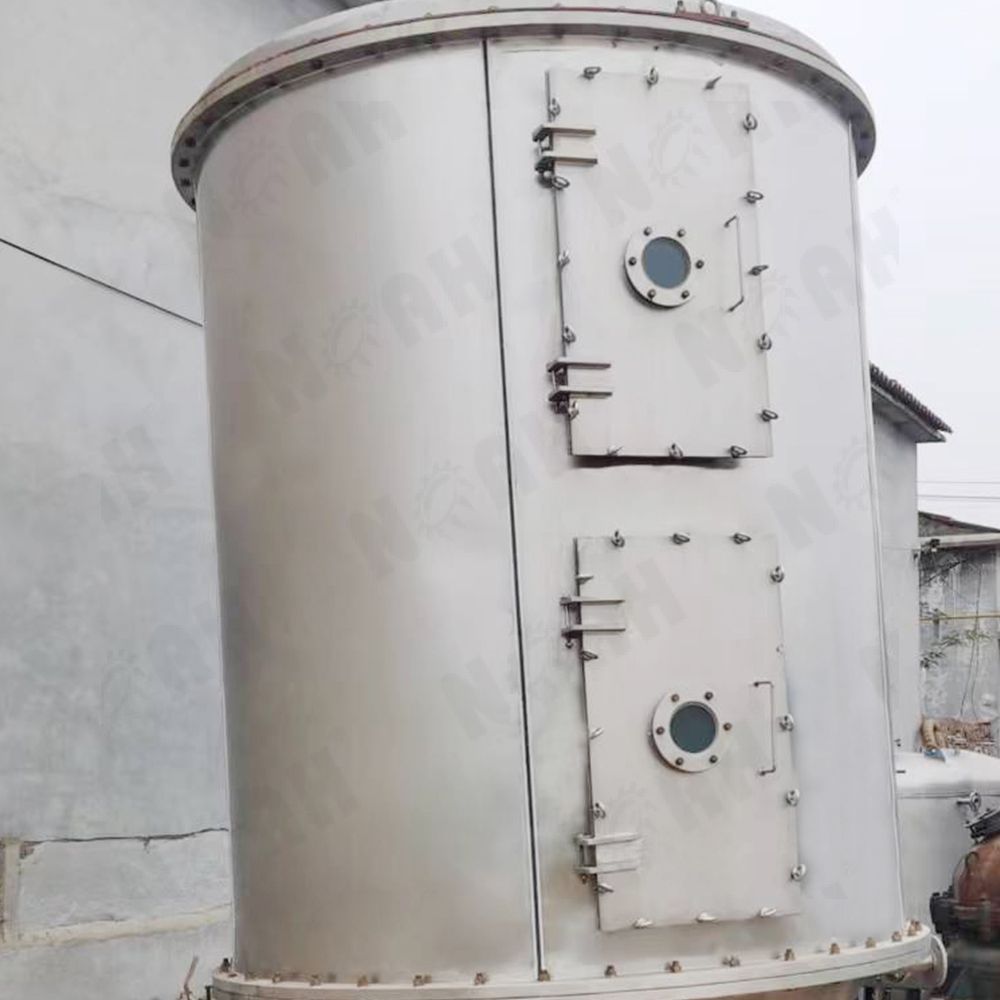

Equipped with large inspection doors and viewing windows for easy cleaning and internal observation.


Low Energy Consumption

Thin material layers and low-speed rotation reduce power consumption of the conveying system.

Conductive drying method ensures high thermal efficiency and low energy consumption.


Environmentally Friendly and Safe Operation

Atmospheric Type: Low internal air velocity and vertical temperature gradient minimize dust carryover; exhaust gas at the top contains almost no dust.

Sealed Type: Optional solvent recovery system enables efficient recovery of organic solvents. Suitable for flammable, explosive, toxic, and oxidation-sensitive materials using nitrogen gas circulation.

Vacuum Type: Ideal for thermally sensitive materials under reduced pressure conditions.


Compact Design and Easy Installation

The entire unit is integrated and delivered as one piece, making installation fast and simple.

Vertical layered design provides a large drying area while occupying minimal floor space.


LFG vertical disc dryer is an efficient conduction-type continuous drying equipment. It can be applied to multiple fields such as organic chemical products, inorganic chemical products, pharmaceuticals and foods, feed fertilizers, etc., to meet the drying needs of different materials.The equipment provides three types: normal pressure, closed and vacuum, as well as different specifications and material options to meet the needs of various industrial applications. In addition, it can be used in conjunction with other auxiliary equipment to further expand its functionality and flexibility.

Specification

TYPEOuter Diameter(mm)Height
(mm)
Drying Area(m²)Power
(kw)
TYPEOuter Diameter(mm)Height
(mm)
Drying Area(m²)Power
(kw)
1200/4185026083.31.1 2200/182900578255.45.5
1200/630284.92200/20620261.6
1200/834486.61.5 2200/22662267.77.5
1200/1038688.22200/24704273.9
1200/1242889.92200/26746280
1500/6210030228.0 2.2 3000/8380040504811
1500/8344210.73000/10465060
1500/10386213.43000/12525072
1500/12428216.13.0 3000/14585084
1500/14470218.83000/16645096
1500/16512221.53000/18705010813
2200/62900326218.53.0 3000/207650120
2200/8368224.63000/228250132
2200/10410230.83000/248850144
2200/12452236.94.0 3000/26945015615
2200/14494243.13000/2810050168
2200/16536249.35.5 3000/3010650180




FAQ - Have any questions?

What types of materials can be processed by the LFG Series Vertical Disc Dryer?

LFG Series is designed to efficiently dry a variety of sludge, cake, and other sticky or granular materials. It is particularly suitable for high moisture content and viscous materials that pose challenges to traditional drying equipment.

How energy-efficient is the LFG Series Vertical Disc Dryer?

LFG dryer incorporates advanced thermal management systems to effectively utilize heat sources and minimize energy loss. Its unique design ensures maximum heat application, thereby enhancing overall energy efficiency.

What safety features does the LFG dryer include?

Safety is a top priority. The LFG Series includes multiple safety measures such as over-temperature protection and pressure monitoring systems to ensure stable operation under all circumstances, safeguarding both personnel and equipment.

Is maintenance of the dryer complex?

Maintenance has been made straightforward with the LFG Series. Critical components are easily accessible, facilitating routine inspections and cleaning. Additionally, wear parts are designed for quick replacement, minimizing downtime.

Can the drying process be customized according to different material requirements?

Absolutely. The LFG Series allows for adjustment of operational parameters including temperature, speed, and airflow, enabling customization of the drying process to meet specific material requirements and achieve optimal drying results.

What kind of after-sales service is provided with the LFG Series Vertical Disc Dryer?

We offer comprehensive after-sales support, including installation guidance, operator training, and regular maintenance services. Our technical team is available to provide prompt assistance to resolve any issues and ensure smooth operation of your equipment.

What industries and applications is the LFG Series Vertical Disc Dryer suitable for?

LFG dryer is suitable for a wide range of industries including chemical, pharmaceutical, food, feed, and fertilizer sectors. It's ideal for drying, thermal decomposition, calcination, cooling, reaction, and sublimation processes.

Can the drying process be customized according to specific needs?

Yes, the LFG dryer allows customization by adjusting parameters such as material layer thickness, shaft speed, and the number and shape of rake arms and blades, ensuring optimal performance for different materials.

How does the LFG Series manage environmental impact and emissions?

LFG dryer minimizes dust carryover and emissions through its design. For example, the atmospheric type has low internal air velocity, reducing dust in exhaust gases. Additionally, sealed types can include solvent recovery systems.

Does the LFG dryer come in different configurations?

Yes, the LFG dryer is available in atmospheric, sealed, and vacuum types, with various specifications and materials of construction (carbon steel, stainless steel options).
