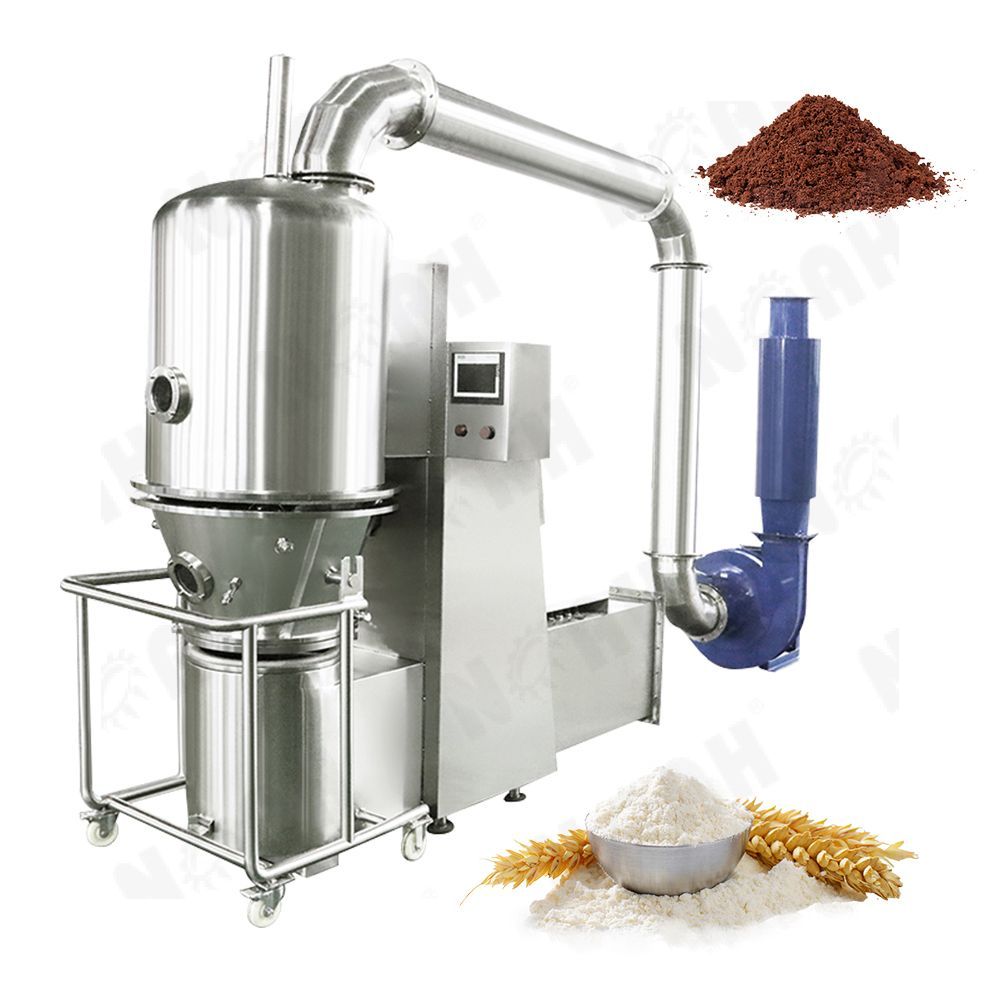

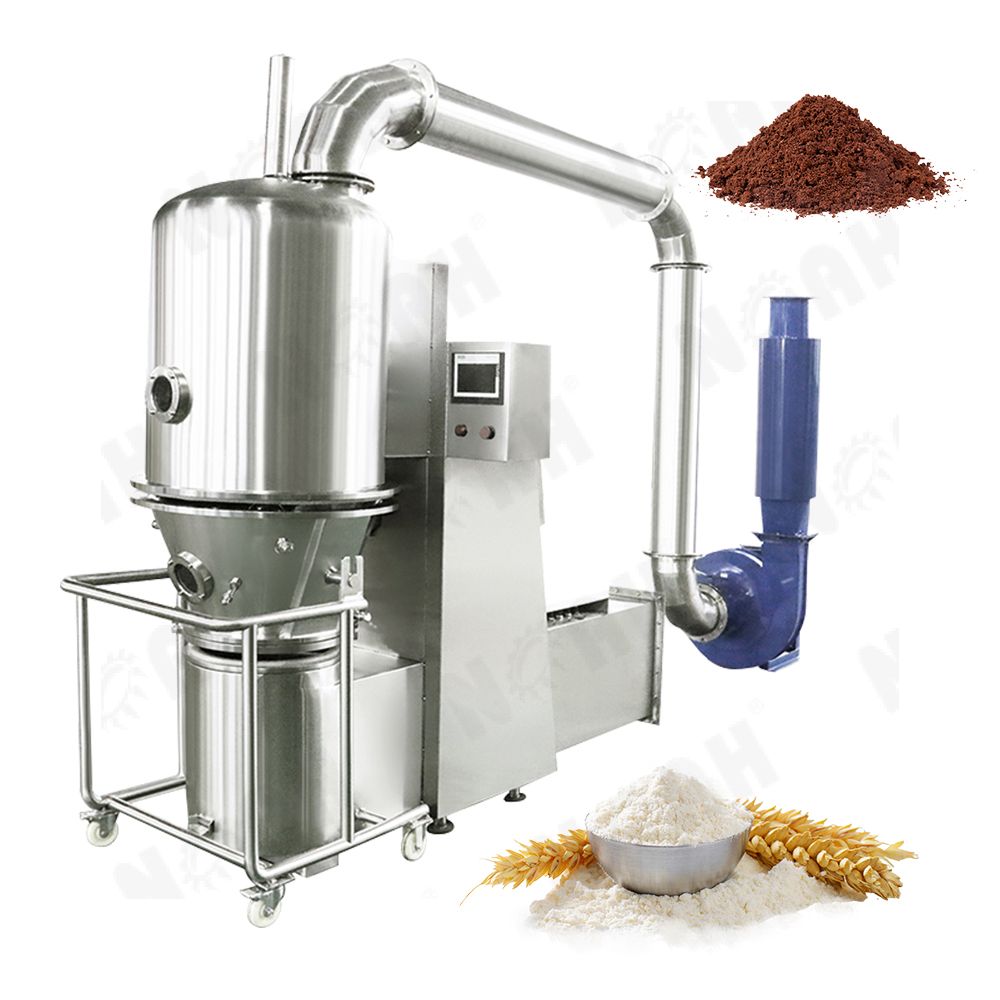

GFG Series High Efficient Boiling Dryer

Description

The GFG Series High Efficient Boiling Dryer utilizes a high-speed draught generated by heating the air to achieve rapid and uniform drying. The dryer features a filtration system that ensures a hermetic and unpolluted drying environment. It is designed for easy operation, cleaning, and maintenance, meeting the industry's hygiene standards. With its advanced boiling process, the dryer quickly evaporates moisture from materials, resulting in efficient drying. The GFG Series Boiling Dryer is a reliable solution for industries that require fast and high-quality drying performance while complying with GMP requirements.

Finished Product Display

Main Technical Specifications

Item			Model
Feeding		kg	GFG60	GFG120	GFG150	GFG200	GFG300	GFG500
Fan	Air amount	m³/h	2361	3488	4901	6032	7800	10800
	Air pressure	mmH₂O	594	533	679	787	950	950
	Power	kw	7.5	11	15	22	30	37
Power of stirrer		kw	0.55	1.1	1.1	1.1	1.1	1.5
Revolution stirrer		rpm	11
Steam consume		kg/h	141	170	240	282	366	451
Operate time		min	15-30
Main machine		mm	2700	2900	2900	3100	3300	3850

FAQ - Have any questions?

What is the GFG Series High Efficient Boiling Dryer?

The GFG Series High Efficient Boiling Dryer is a type of drying equipment that utilizes a boiling bed to efficiently dry granular materials. It provides rapid and uniform drying while preserving the integrity of the materials.

What types of materials can be dried using the GFG Series High Efficient Boiling Dryer?

The GFG Series High Efficient Boiling Dryer is suitable for drying a wide range of granular materials, including pharmaceuticals, chemicals, food products, agricultural products, and minerals. It is particularly effective for heat-sensitive materials and those prone to clumping during drying.

How does the GFG Series High Efficient Boiling Dryer work?

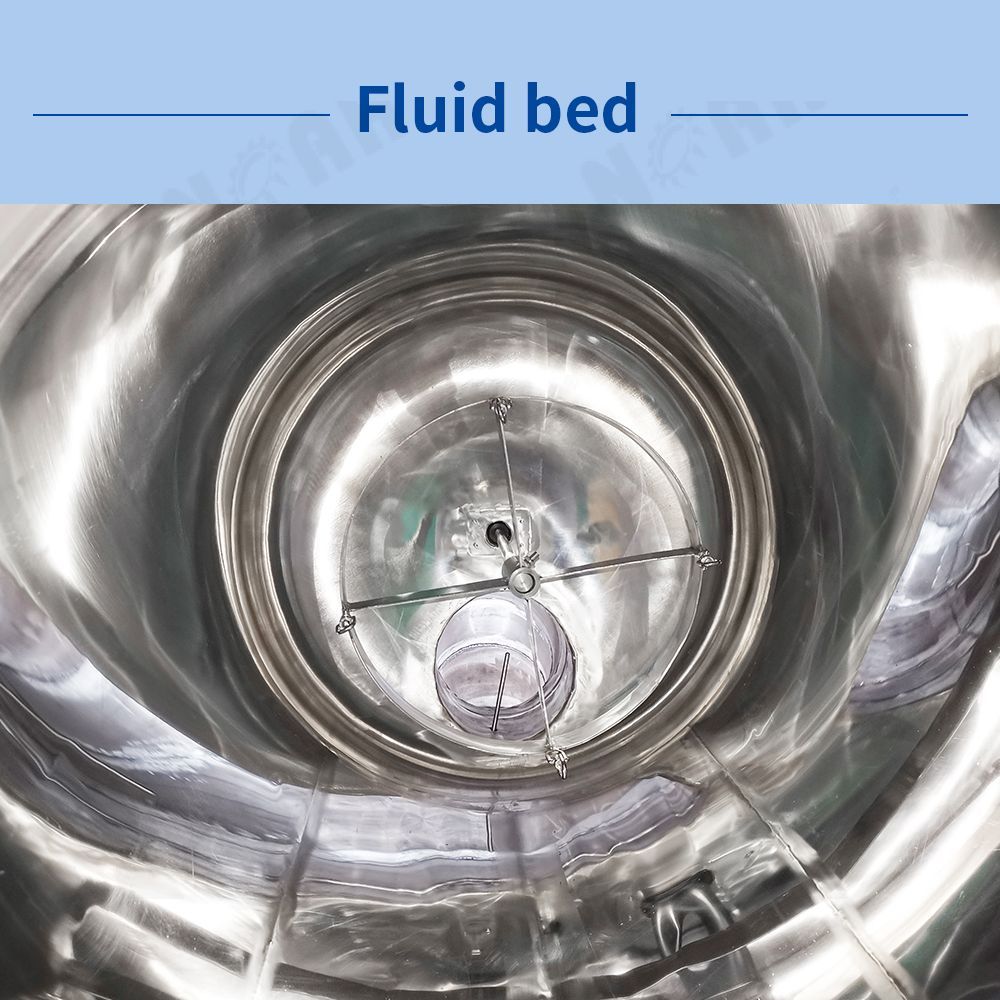

The GFG Series High Efficient Boiling Dryer operates by suspending the granular materials in a heated air stream, causing them to boil and fluidize. This fluidization allows for efficient heat transfer and rapid moisture removal, resulting in fast and uniform drying.

What are the key features of the GFG Series High Efficient Boiling Dryer?

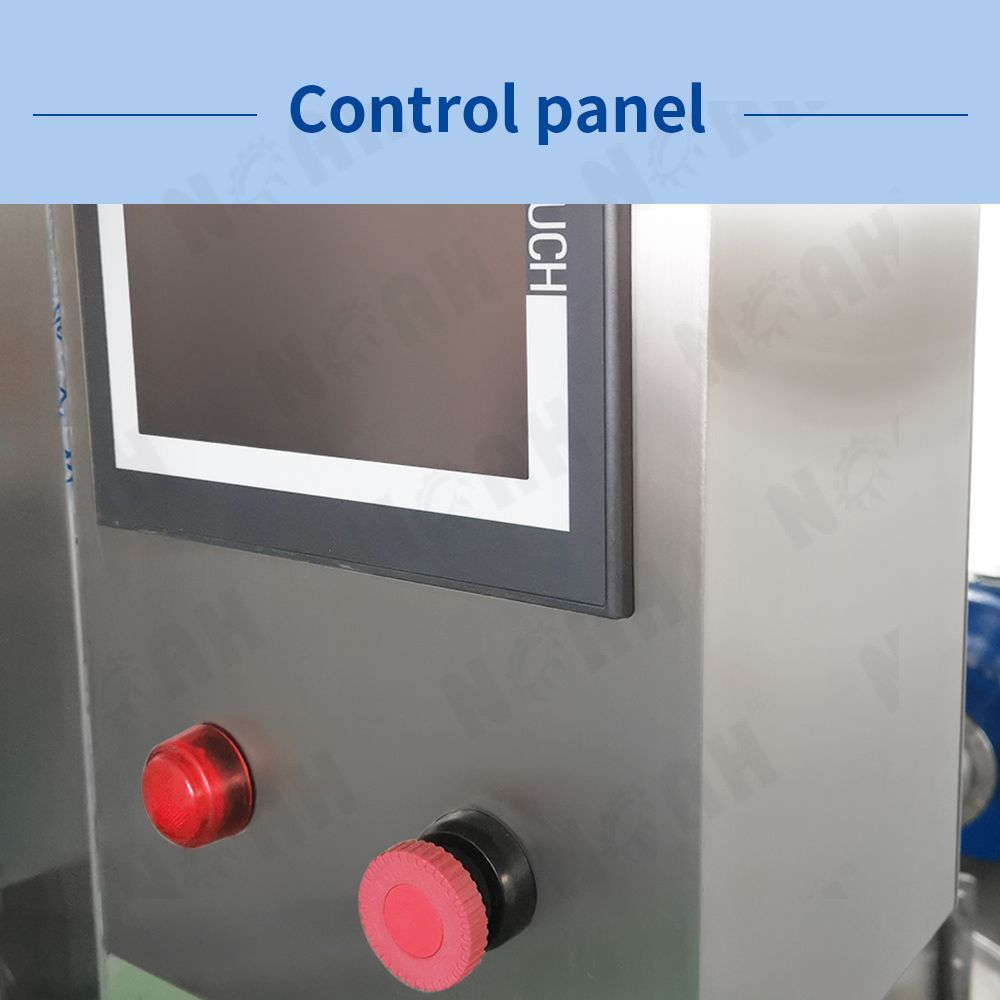

The GFG Series High Efficient Boiling Dryer features a high drying efficiency, uniform drying results, adjustable drying parameters, precise temperature control, a reliable heating system, and a user-friendly control panel. These features contribute to its effectiveness and ease of operation.

What are the advantages of using the GFG Series High Efficient Boiling Dryer?

The GFG Series High Efficient Boiling Dryer offers several advantages, including fast drying times, high heat transfer efficiency, gentle drying for heat-sensitive materials, minimal product loss, easy cleaning and maintenance, and a compact design that saves space. These benefits make it an attractive option for efficient drying processes.

Can the GFG Series High Efficient Boiling Dryer handle large production volumes?

Yes, the GFG Series High Efficient Boiling Dryer is designed to handle large production volumes. Its capacity can be customized to meet specific production requirements, allowing for efficient drying of large quantities of granular materials.

Is the GFG Series High Efficient Boiling Dryer suitable for continuous operation?

Yes, the GFG Series High Efficient Boiling Dryer is designed for continuous operation. It can be integrated into existing production lines, ensuring a seamless and uninterrupted drying process.

Can the GFG Series High Efficient Boiling Dryer be used for drying heat-sensitive pharmaceuticals?

Yes, the GFG Series High Efficient Boiling Dryer is particularly suitable for drying heat-sensitive pharmaceuticals. Its gentle drying process and precise temperature control help maintain the integrity and quality of the pharmaceutical products during drying.

Does the GFG Series High Efficient Boiling Dryer offer customizable drying parameters?

Yes, the GFG Series High Efficient Boiling Dryer provides adjustable drying parameters. Operators can control variables such as temperature, airflow, and residence time to optimize the drying process for different materials and specific drying requirements.

What safety features does the GFG Series High Efficient Boiling Dryer have?

The GFG Series High Efficient Boiling Dryer is equipped with safety features such as temperature monitoring, pressure relief mechanisms, emergency stop buttons, and safety interlocks. These features ensure safe operation and protect both the equipment and operators from potential risks. Note: This FAQ provides general information about the GFG Series High Efficient Boiling Dryer. For specific details and technical specifications, it is recommended to consult NOAH（yznoah@noah-pm.com).

Investment Return Analysis for GFG Series High Efficient Boiling Dryer:

Increasing Demand for Efficient Drying Solutions: The global market for drying equipment is witnessing steady growth due to the rising demand for efficient and cost-effective drying solutions across various industries. The GFG Series High Efficient Boiling Dryer, with its rapid and uniform drying capabilities, is well-positioned to tap into this growing demand, making it an attractive investment opportunity.

Advantages of Boiling Bed Technology: The GFG Series High Efficient Boiling Dryer utilizes a boiling bed technology, which offers advantages such as high heat transfer efficiency, fast drying times, and gentle treatment of heat-sensitive materials. These advantages make it a preferred choice for industries seeking advanced drying techniques, enhancing the market potential and investment returns.

Versatility in Drying a Wide Range of Materials: The GFG Series High Efficient Boiling Dryer can handle diverse granular materials, including pharmaceuticals, chemicals, food products, and agricultural products. Its ability to accommodate various materials expands its market reach, allowing it to cater to multiple industries and applications, thereby increasing investment opportunities.

Energy Efficiency and Cost Savings: The GFG Series High Efficient Boiling Dryer offers energy-efficient drying processes, resulting in cost savings for businesses. Its efficient heat transfer mechanism and optimized design contribute to reduced energy consumption and operational costs, enhancing the investment returns over the equipment's lifespan.

Compliance with Quality and Safety Standards: The GFG Series High Efficient Boiling Dryer is designed and manufactured to meet industry quality and safety standards. Compliance with regulations, such as Good Manufacturing Practices (GMP) and safety guidelines, ensures product quality, customer satisfaction, and market acceptance, positively impacting investment returns.

Customization and Adaptability: The GFG Series High Efficient Boiling Dryer can be customized to meet specific drying requirements and integrate seamlessly into existing production lines. Its adjustable drying parameters, temperature control, and capacity flexibility make it adaptable to different applications, expanding its market potential and investment returns.

After-Sales Service and Technical Support: Providing comprehensive after-sales service, technical support, and maintenance assistance is crucial for customer satisfaction and long-term relationships. Offering prompt troubleshooting, spare parts availability, and expert assistance ensures smooth operation and customer loyalty, contributing to favorable investment returns.

Market Expansion Opportunities: The GFG Series High Efficient Boiling Dryer can explore market expansion opportunities by targeting emerging industries and untapped geographical regions. The demand for efficient drying solutions is growing globally, and investing in expanding markets can lead to increased market share and improved investment returns.

Strategic Partnerships and Collaborations: Collaborating with industry partners, research institutions, and key customers can foster innovation, enhance product development, and open new market channels. Strategic partnerships enable access to new technologies, diversified applications, and customer networks, boosting competitiveness and investment returns.

Return on Investment (ROI): Evaluating the return on investment for the GFG Series High Efficient Boiling Dryer requires considering factors such as initial investment cost, operational cost savings, market growth potential, and equipment lifespan. Conducting a comprehensive financial analysis, factoring in market conditions and specific investment considerations, is essential for making informed investment decisions.

Note: This investment return analysis provides a general outlook based on available information. Conducting thorough market research, financial analysis, and evaluating specific investment factors are crucial for making sound investment decisions.
