Drying Machine

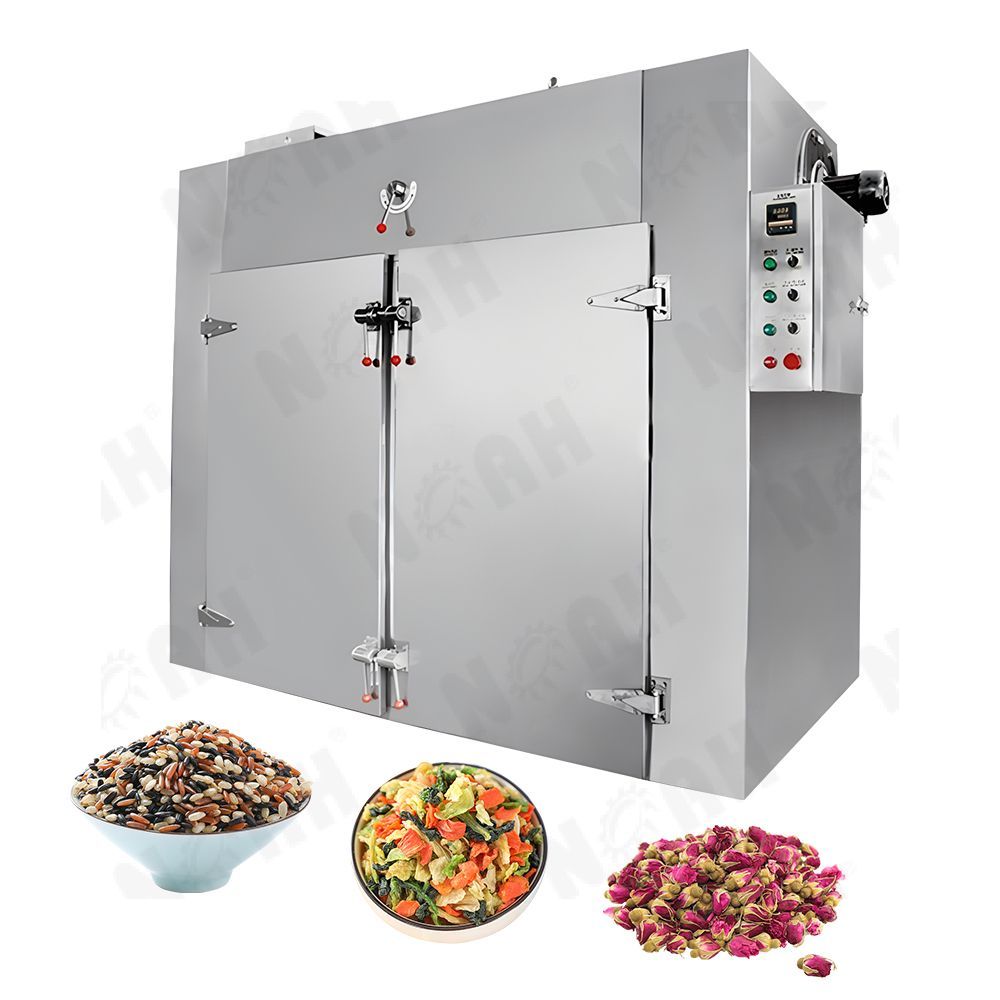

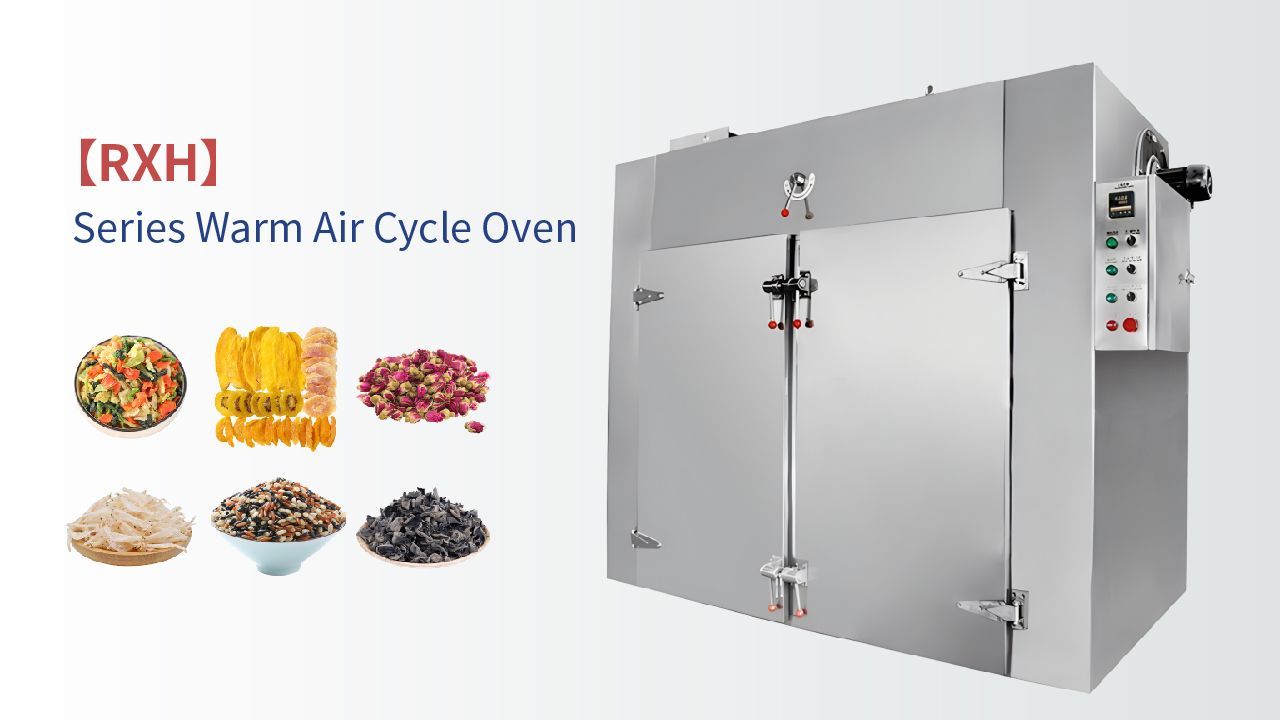

RXH Series Warm Air Cycle Oven

Efficiently remove moisture and accelerate drying processes with our cutting-edge drying machine, ensuring optimal product quality and productivity.

RXH Series Warm Air Cycle Oven

Versatile drying solution for various industries.

Multiple heat source options for flexibility.

Adjustable temperature range for precise control.

Equipped with a computer control system.

Energy-efficient operation.

Wide range of steam pressure compatibility.

Interchangeable oven plates for customization.

Ample space for efficient drying.

Description

Warm Air Cycle Oven

Applications

The RXH Warm Air Cycle Oven is suitable for heating, solidification, drying, and dehydrating of various raw materials in industries such as pharmaceuticals, chemicals, foodstuffs, agricultural products, aquatic products, light industry, and heavy industry. It can effectively process medicines, Chinese traditional medicines, tablets, powders, granules, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, plastics, and more.

Hot Air Circulation Oven

Features

Multiple Heat Sources: The oven can be operated with various heat sources, including steam, electricity, and more, providing flexibility to the consumer.

Adjustable Temperature Range: With steam heating, the temperature range is 50-150°C, while with electric and far-infrared heaters, it extends from 50-350°C.

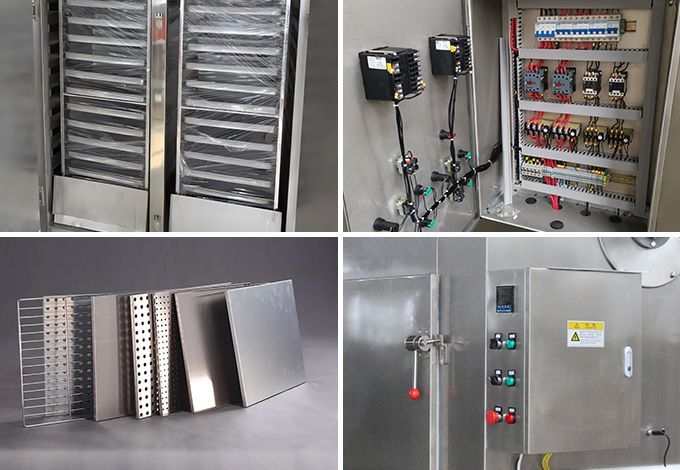

Equipped with Computer Control System: The oven is equipped with a computer control system for precise temperature and humidity regulation.

Wide Range of Steam Pressure: It operates with a steam pressure range of 0.02-0.8MPa (0.2-8kg/cm2).

Energy Efficiency: Electric heated power is 15KW, with a consumption rate of 5-8kW/h per liter.

Customization: Special requirements can be accommodated upon request.

Temperature Flexibility: The oven can handle temperatures below 60°C or above 140°C, depending on specific needs.

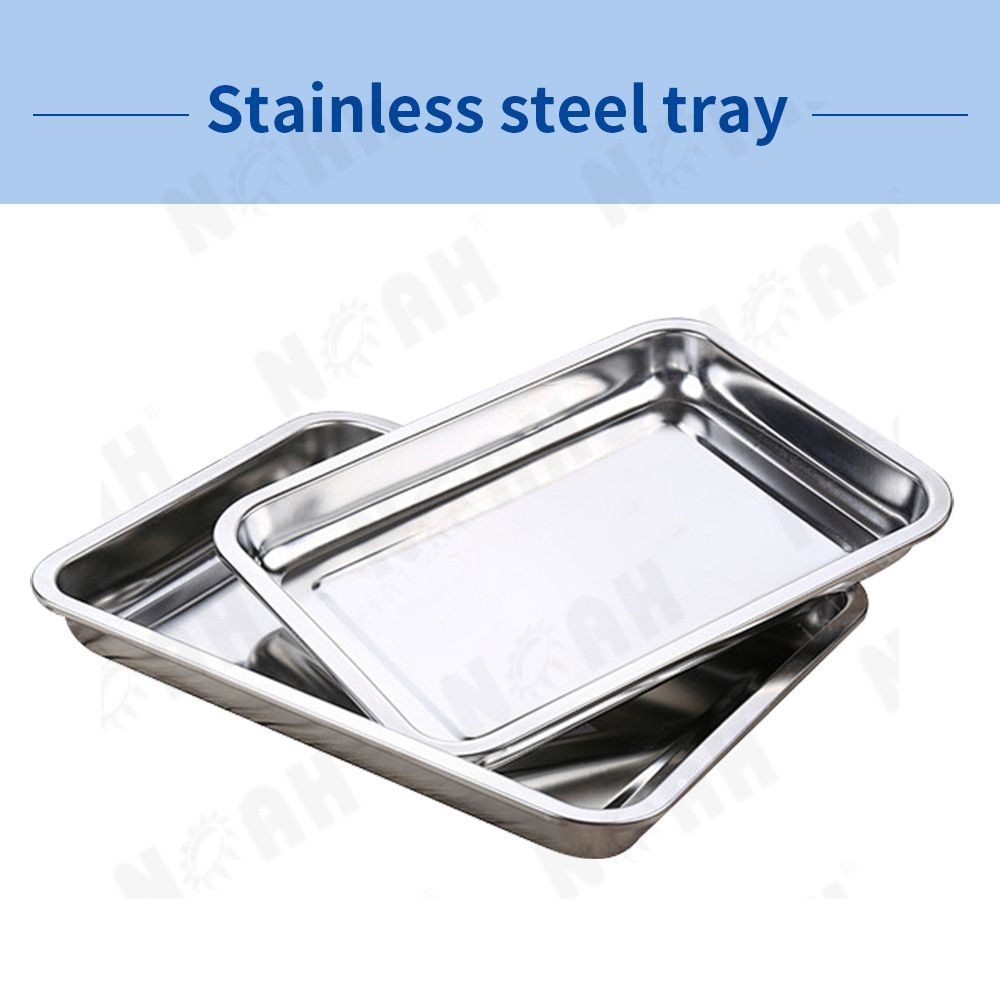

Interchangeable Oven Plates: The oven and plate sizes are standardized, allowing for easy interchangeability.

Oven Plate Size: The oven plate measures 46064050mm, providing ample space for material drying.

The RXH Warm Air Cycle Oven is a reliable and efficient drying and dehydrating equipment utilized in various industries. It utilizes steam or electric heating air to create a cycling dry environment, maintaining precise temperature and humidity levels. With its versatility and wide range of applications, it is suitable for processing a diverse range of materials. The oven features multiple heat sources, adjustable temperature ranges, and is equipped with a computer control system for accurate regulation. It offers energy efficiency, customization options, and the flexibility to handle different temperature requirements. The oven plates are standardized, allowing for easy interchangeability, and provide ample space for material drying.

Product Video

Hot Air Circulation Oven

Specification

ITEMTYPE
RXH-5-CRXH-14-CRXH-27-CRXH-41-CRXH-54-C
Oldly typeCT-C-0CT-C-ICT-C-IICT-C-IIICT-C-IV
Dry quantity
kg/batch
25100200300400
Power KW0.450.450.9 1.51.35 2.251.8 3.0
Used steam kg/h518365472
Wind power stere/h3400340069001035013800
Temperature difference-2 – +2-2 – +2-2 – +2-2 – +2-2 – +2
Oven plate244896144192
Size (L*W*H) mm1550*1000*20442300*1200*23002300*2200*23002300*3220*20004460*2200*2290

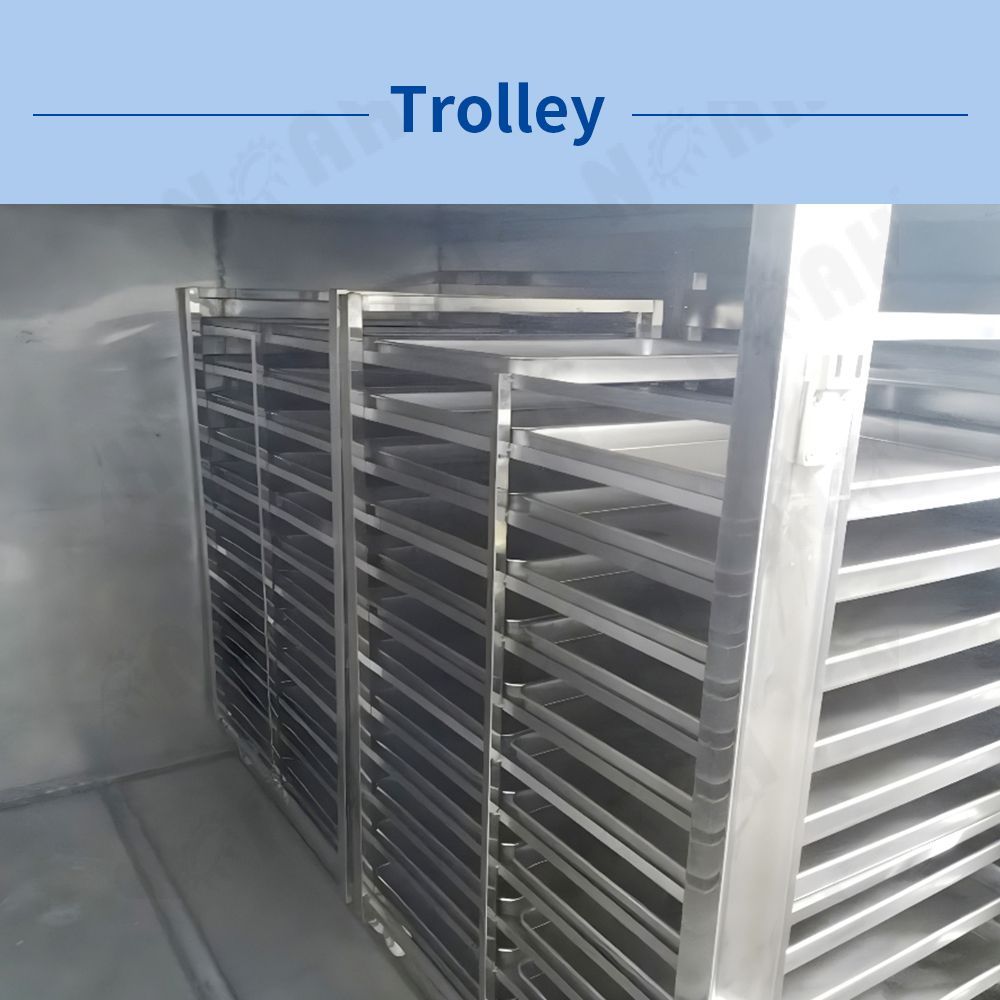

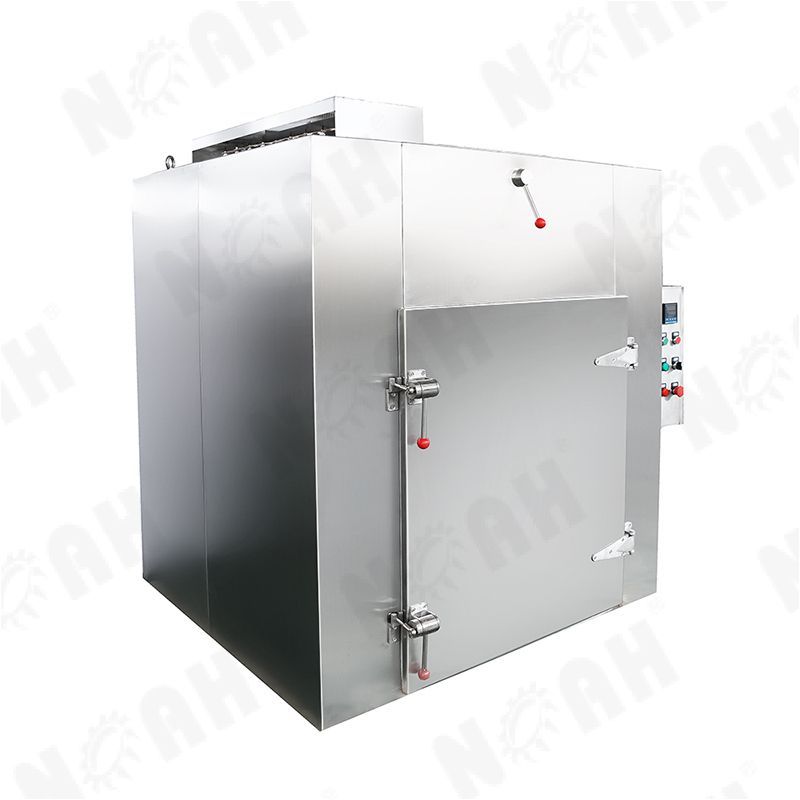

RemarksSingle door
Single dolly
Double doors Double dollysDouble doors
four dollys
Double doors
Six dollys

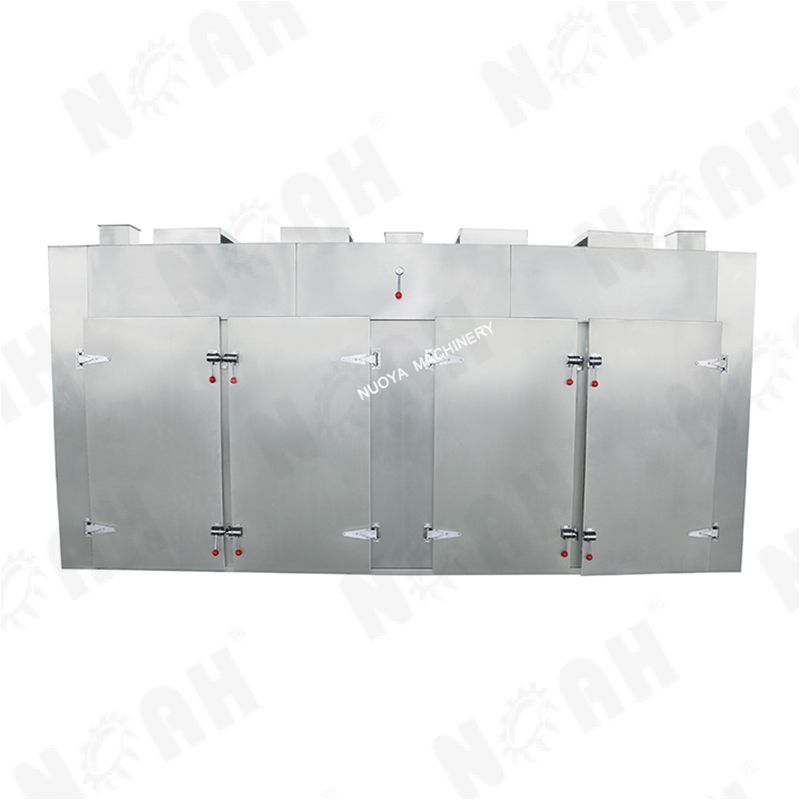

Four doors
Eight doors


FAQ - Have any questions?

What is the RXH Warm Air Cycle Oven?

The RXH Warm Air Cycle Oven is a specialized drying equipment used in various industries to remove moisture or heat-treat products using warm air circulation. It provides a controlled and efficient drying environment for different materials.

How does the RXH Warm Air Cycle Oven work?

The RXH Warm Air Cycle Oven operates by circulating warm air throughout its chamber, creating a consistent temperature and airflow. The heated air effectively removes moisture from the materials placed inside the oven, facilitating the drying or heat treatment process.

What are the key features of the RXH Warm Air Cycle Oven?

The RXH Warm Air Cycle Oven features precise temperature control, uniform airflow distribution, adjustable drying parameters, a reliable heating system, and a user-friendly control panel. These features ensure optimal drying performance and ease of operation.

What types of materials can be dried using the RXH Warm Air Cycle Oven?

The RXH Warm Air Cycle Oven is suitable for drying a wide range of materials, including pharmaceuticals, chemicals, food products, herbal extracts, powders, granules, and electronic components. It can accommodate different shapes, sizes, and moisture content levels.

What are the advantages of using the RXH Warm Air Cycle Oven?

The RXH Warm Air Cycle Oven offers several advantages, including efficient and uniform drying, shorter drying times, preservation of product quality, energy-saving operation, adjustable drying parameters, and ease of maintenance. These benefits contribute to improved productivity and cost-effectiveness.

Can the RXH Warm Air Cycle Oven be customized for specific drying requirements?

Yes, the RXH Warm Air Cycle Oven can be customized to meet specific drying requirements. Customization options may include chamber size, temperature range, airflow pattern, control system features, and additional safety measures. This ensures the oven can effectively meet the unique needs of different industries and applications.

What safety features does the RXH Warm Air Cycle Oven have?

The RXH Warm Air Cycle Oven is equipped with safety features such as temperature and airflow monitoring, overheat protection, emergency stop buttons, and door interlocks. These features ensure safe operation and protect both the equipment and operators from potential risks.

Is the RXH Warm Air Cycle Oven easy to clean and maintain?

Yes, the RXH Warm Air Cycle Oven is designed for easy cleaning and maintenance. It typically features removable trays or shelves, easy access to the internal chamber, and smooth surfaces that facilitate cleaning. Regular maintenance, such as cleaning filters and inspecting electrical connections, ensures optimal performance and extends the oven's lifespan.

Can the RXH Warm Air Cycle Oven be integrated into existing production lines?

Yes, the RXH Warm Air Cycle Oven can be seamlessly integrated into existing production lines. It can be connected to other equipment such as conveyor systems, filling machines, or packaging lines, allowing for continuous and efficient production processes.

How can I obtain technical support and spare parts for the RXH Warm Air Cycle Oven?

Technical support and spare parts for the RXH Warm Air Cycle Oven can be obtained by contacting NOAH(yznoah@noah-pm.com). We will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
