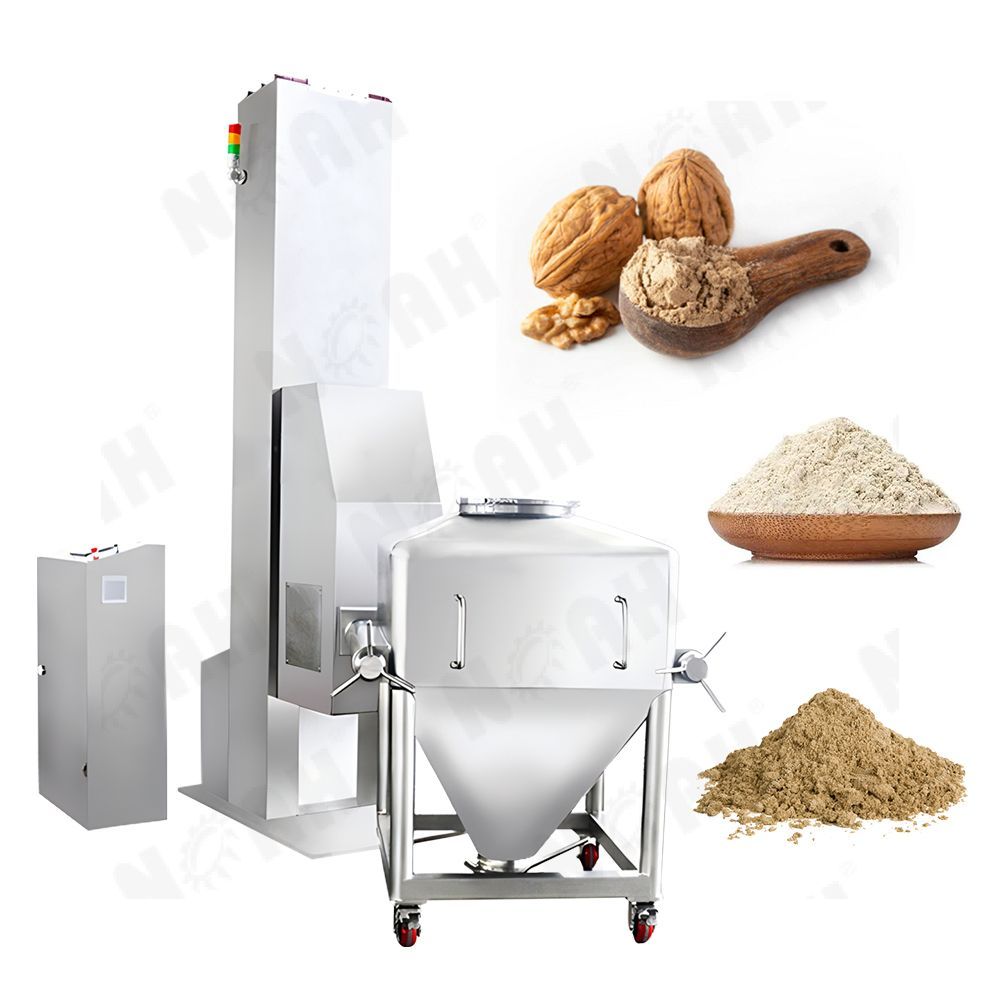

HTP Series Powder Lifting Bin Mixer
Discover the perfect blend of efficiency and versatility with our powder mixer, ensuring homogeneous mixing of powders for a wide range of industries and applications.
Versatile application in pharmaceutical, chemical, and food industries.
Automated lifting and mixing of powder materials.

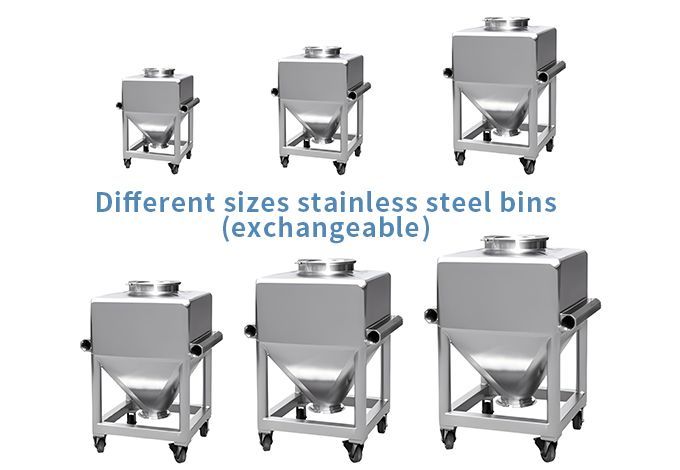

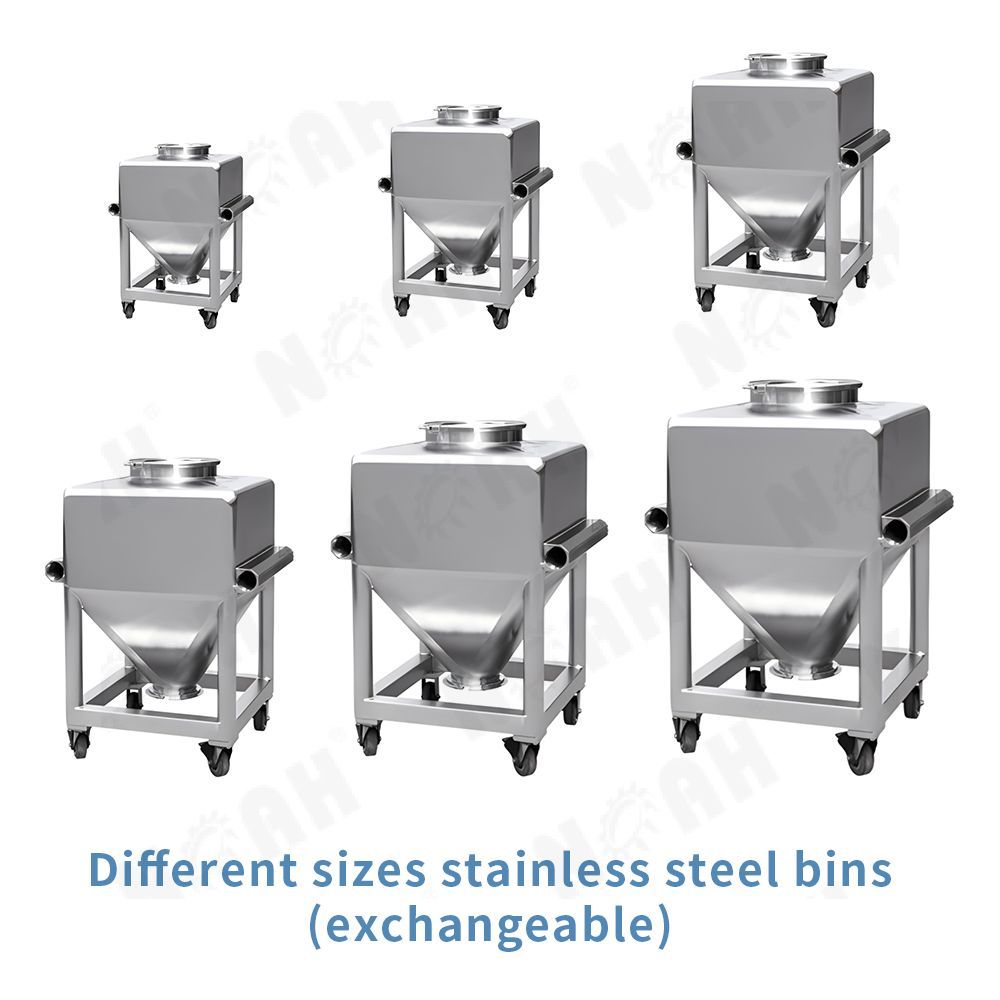

Accommodates different sizes and types of bins for flexible mixing capacities.
Easy unloading and cleaning, ensuring no cross-contamination.
Complies with GMP requirements for medicine production.
Smooth and reliable operation with low rotating height.
Precise batch control for consistent mixing results.
Enhanced safety features with overload alarm and isolating fence.
Description
Applications
The HTP Series Powder Lifting Bin Mixer is suitable for a wide range of industries, including pharmaceutical, chemical, and food, where efficient and precise powder mixing is required. It offers advanced features and capabilities for optimal mixing performance.
Features
Intelligent PLC control with graphical interface for easy operation.

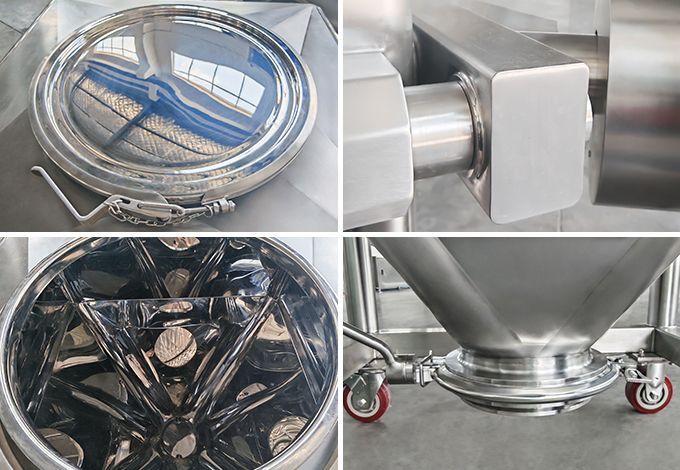

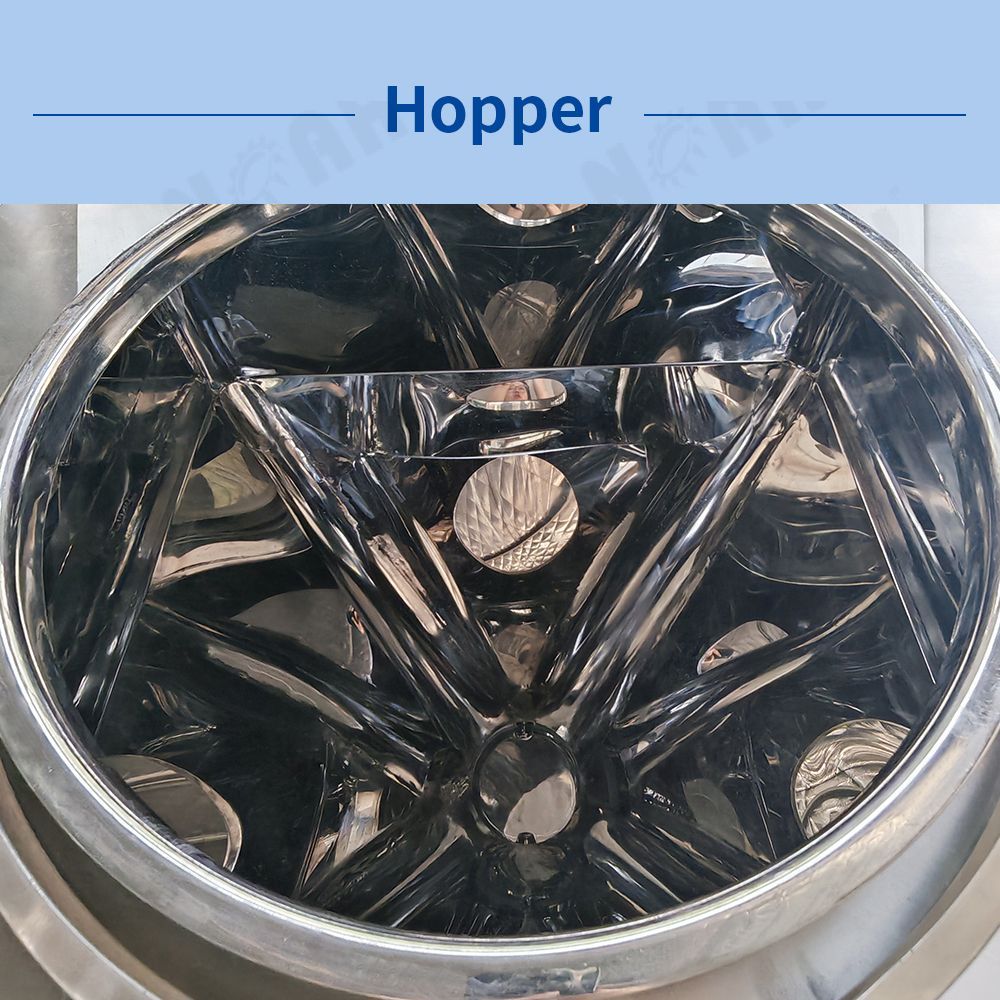

Sealed hopper design to prevent dust and cross-contamination.

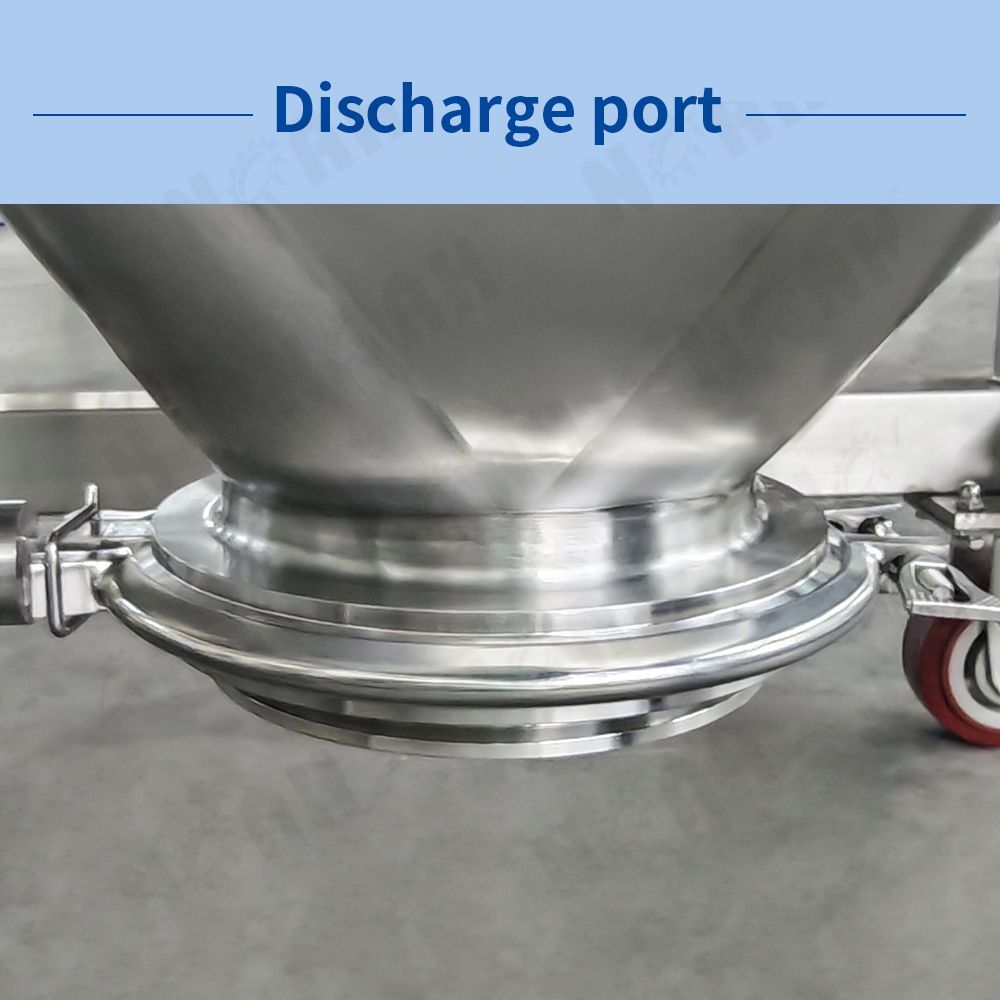

Anti-misoperation discharge butterfly valve for precise material discharge.
Easy operation, maintenance, and cleaning.

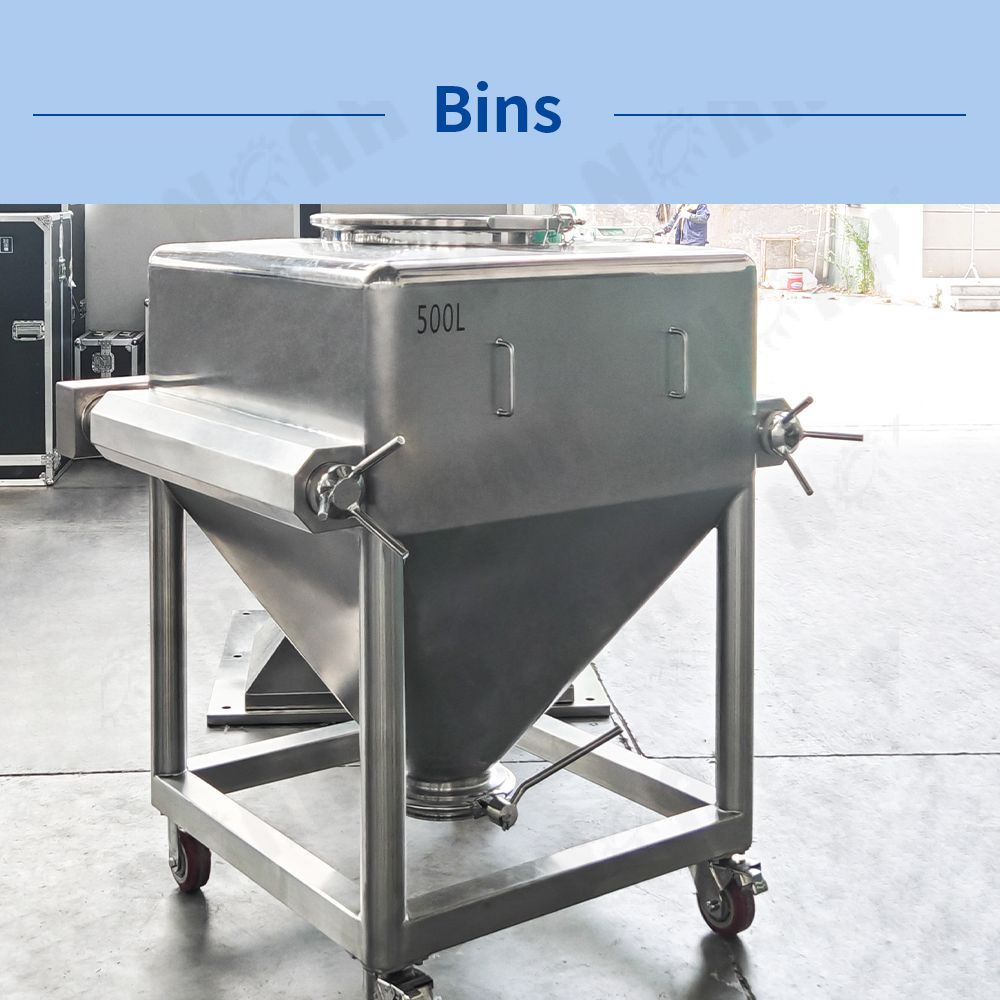

Mobile hopper for convenient material transfer.
Adjustable mixing time and speed for optimal mixing results.
Automatic positioning system and fault prompts with alarms.
The HTP Series Powder Lifting Bin Mixer offers intelligent PLC control and a user-friendly interface for effortless operation. Its sealed hopper design ensures a dust-free and contamination-free mixing process. The mixer is equipped with an anti-misoperation discharge butterfly valve for accurate material discharge.
Operating the mixer is easy, and maintenance and cleaning are hassle-free. The mobile hopper allows for convenient material transfer and loading/unloading. The mixing time and speed are adjustable to achieve the desired mixing effect. The mixer features an automatic positioning system and provides fault prompts and alarms for efficient operation and prompt issue detection.
Product Video
Finished Product Display
Specification
| Model | Mixing speed rpm | Hopper volume L | Maximum load volume L | Maximum load capacity Kg | Main power Kw | Weight Kg |
| HTP-50 | 3-20 | 50 | 40 | 25 | 3.7 | 600 |
| HTP-100 | 3-20 | 100 | 80 | 50 | 3.7 | 700 |
| HTP-200 | 3-20 | 200 | 160 | 100 | 4.4 | 800 |
| HTP-300 | 3-20 | 300 | 240 | 150 | 5.2 | 900 |
| HTP-400 | 3-20 | 400 | 320 | 200 | 5.2 | 1000 |
| HTP-500 | 3-15 | 500 | 400 | 250 | 5.2 | 1200 |
| HTP-600 | 3-15 | 600 | 480 | 300 | 5.2 | 1300 |
| HTP-800 | 3-15 | 800 | 640 | 400 | 7 | 1600 |
| HTP-1000 | 3-10 | 1000 | 800 | 500 | 7 | 2000 |
| HTP-1200 | 3-8 | 1200 | 960 | 550 | 7 | 2200 |
FAQ - Have any questions?
What is the capacity range of the HTP Series Powder Lifting Bin Mixer?
The capacity of the HTP Series typically ranges from 40L to 960L, accommodating varying batch sizes.
What types of materials can be mixed using the HTP Series Lifting Bin Mixer?
This mixer is suitable for blending dry powders or granules used in pharmaceutical, food, or chemical industries.
How efficient is the mixing process with the HTP Series Powder Lifting Bin Mixer?
The HTP Series Mixer ensures efficient blending due to its lifting bin design, promoting thorough mixing and homogeneity.
Is the mixing process uniform and consistent with the HTP Series Mixer?
Yes, the lifting bin design ensures uniform mixing, maintaining consistency across batches.
Can the HTP Series Mixer handle delicate or fragile materials during mixing?
Yes, it's designed to handle delicate materials gently to prevent breakage or damage during the blending process.
What safety features are integrated into the HTP Series Powder Lifting Bin Mixer?
Safety features may include emergency stop buttons, safety guards, and mechanisms to prevent accidents during operation.
How is the cleaning process for the HTP Series Mixer?
The machine is designed for easy cleaning and maintenance, with removable parts and accessible surfaces for efficient cleaning.
Can the mixing intensity or speed be adjusted or customized?
Yes, some models may allow for adjustable mixing intensity or speed based on specific material requirements.
Is the HTP Series Lifting Bin Mixer suitable for handling materials with varying densities?
Yes, it's designed to handle materials with different densities, ensuring thorough blending despite varying properties.
What technical support is provided with the purchase of the HTP Series Powder Lifting Bin Mixer?
Comprehensive technical support, including setup guidance, training, and ongoing assistance, is typically offered to ensure optimal use of the equipment.
Investment Return Analysis: Growth Prospects for HTP Series Powder Lifting Bin Mixer
Market Potential:
Industry Demand: The HTP Series Powder Lifting Bin Mixer serves industries like pharmaceuticals, food, and chemicals, meeting the rising demand for efficient blending of dry powders and granules.
Expanding Industries: As these industries expand globally, the need for advanced blending equipment intensifies, consequently increasing the demand for the HTP Series Mixer.
Competitive Advantage:
Lifting Bin Design: The mixer's lifting bin structure ensures thorough and homogeneous blending, offering an advantage over conventional mixers.
Versatility: Its capability to blend various dry materials efficiently caters to diverse industry requirements, enhancing its market competitiveness.
Technological Advancements:
Innovation Potential: Potential technological upgrades could further improve its efficiency and adaptability, ensuring continued competitiveness.
R&D Investment: Continued research and development efforts may lead to improved functionalities, meeting evolving industry needs.
Cost Efficiency:
Operational Savings: Efficient blending reduces production time and material wastage, contributing to cost savings and heightened productivity.
Resource Optimization: Its ability to handle various materials optimizes resource utilization, aligning with sustainable manufacturing practices.
Conclusion:
Investing in the HTP Series Powder Lifting Bin Mixer presents promising returns aligned with the escalating demand for efficient and versatile blending solutions across multiple industries. Its competitive advantages in efficiency, versatility, and potential technological advancements position it favorably for substantial market uptake.
