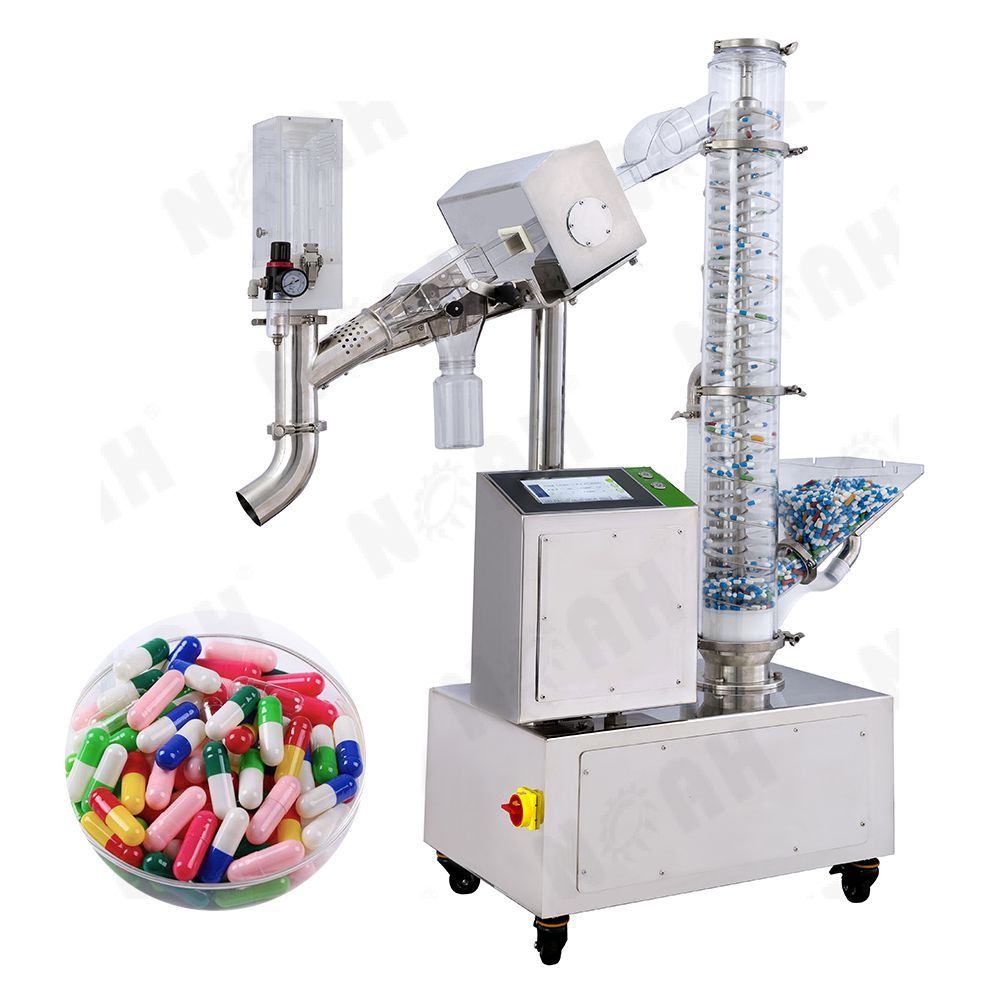

P&M Capsule Polisher & Metal Detector Combo

All-in-One Function – Polishes and detects metal contaminants in one step.

High Sensitivity – Detects tiny metal particles (as small as 0.8mm).

High Throughput – Up to 70,000 capsules per hour.

Versatile – Works with various hard and soft capsule types.

Easy Maintenance – Quick-disassembly design for cleaning and upkeep.

Safe Operation – Includes emergency stop and safety guards.

Customizable – Available with optional modules and configurations.

Line Integration – Easily integrates into existing production lines.

Inquire Now Next Products

Description

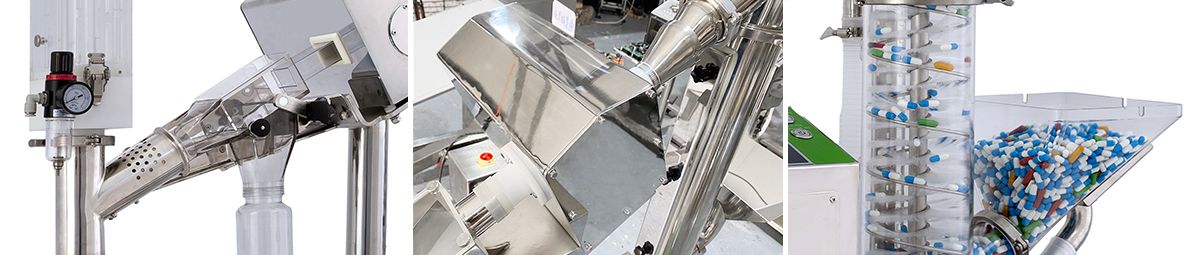

The capsule polishing metal detector is a multifunctional device that integrates capsule polishing, dust removal, lifting, sorting and metal detection, suitable for all types of capsules. The equipment combines advanced polishing technology and high-frequency metal detection technology to provide better detection results. The equipment design has strong compatibility and can be matched with any model of capsule filling machine to ensure product quality. Through multiple technical upgrades, the capsule polishing metal detector provides an efficient and safe solution for the pharmaceutical industry and is an indispensable equipment on the capsule production line.

Specifications

ITEM	P&M-129
Applicable capsule sizes	00# 0# 1# 2# 3# 4#
Inlet/outlet height	760mm/634mm
Overall Size	12304281423mm
Max.Capacity	300000pcs/h
Net Weight	125kg
Compressed Air interface	0.3 m3/min-0.3MPa
Vacuum cleaner	3.0 m3/min-0.02MPa
Working voltage	220V 50/60Hz

FAQ - Have any questions?

What is the main function of the P&M Capsule Polisher & Metal Detector Combo?

This combo machine is designed to polish capsules efficiently while simultaneously detecting and rejecting any capsules containing metal contaminants, ensuring product safety and quality.

What types of capsules can this machine handle?

The machine is suitable for various types of hard and soft capsules across a range of sizes and materials, making it versatile for different production needs.

What is the processing capacity of the machine?

Depending on capsule size and configuration, the machine can process approximately 40,000 to 70,000 capsules per hour.

How does the machine ensure high-quality polishing results?

It uses advanced polishing technology to ensure each capsule has a smooth, clean surface, effectively removing dust and fine particles.

How easy is it to clean and maintain the machine?

The design allows for easy disassembly and cleaning of key components. Regular maintenance is recommended to ensure consistent performance and longevity.

Does the machine support customization options?

Yes, customization is available based on customer requirements, such as color options, additional modules, or integration with existing production lines.

Is the machine equipped with safety features like an emergency stop?

Yes, the machine includes safety features such as an emergency stop button, protective covers, and interlock systems to ensure operator safety.

What kind of warranty and after-sales service is provided?

The standard warranty is one year, covering manufacturing defects. We also offer comprehensive after-sales support, including technical assistance, spare parts, and repair services.

What advantages does the P&M Capsule Polisher & Metal Detector Combo offer compared to other models?

The combo unit stands out for its dual functionality, high polishing efficiency, precise metal detection, compact design, and cost-effective operation, making it ideal for manufacturers focused on both productivity and product safety.

How sensitive is the metal detector?

The built-in metal detector offers high sensitivity and can detect very small metal fragments, including ferrous metals as small as 0.8 mm in diameter.
