Granulating Machine

XZS Vibration Screening Machine

Transform materials into uniform granules effortlessly with our high-performance granulating machine.

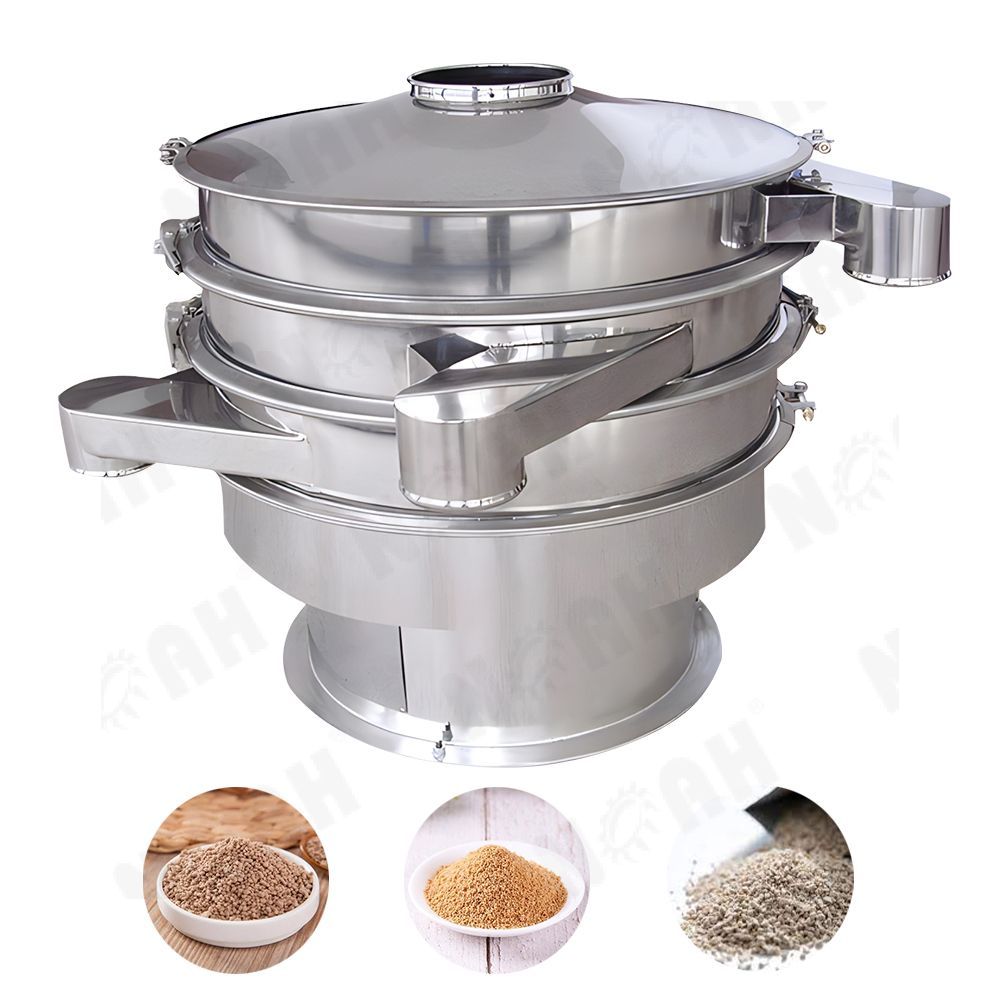

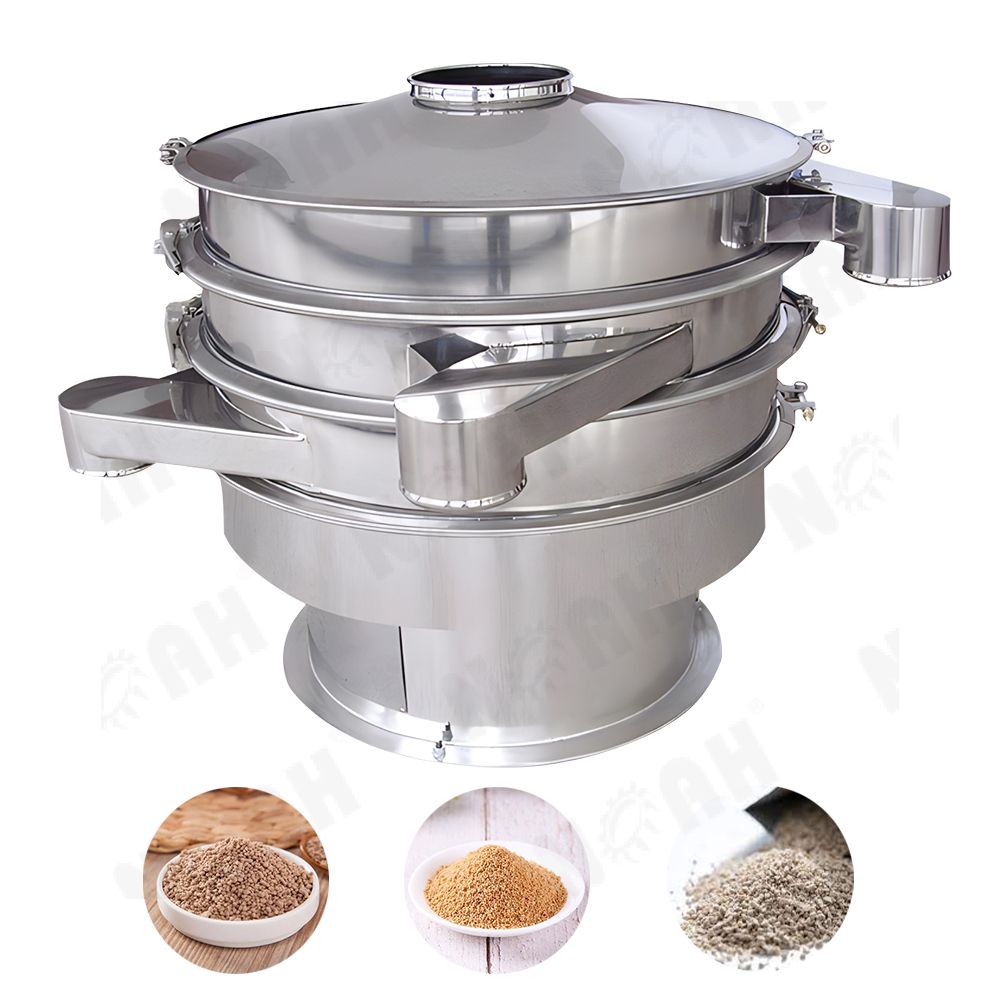

XZS Vibration Screening Machine

Continuous discharge for efficient screening.

Adjustable amplitude for customization.

Compact and easy to install.

Dust-free operation for cleanliness.

Low noise levels for a comfortable environment.

High-quality screening with precision.

Energy-efficient for cost savings.

Convenient maintenance for reduced downtime.

Description

Granulation

Applications

The XZS Vibration Screening Machine is particularly suitable for pipelining applications where continuous discharge of coarse and small particles is required. It serves as an ideal equipment for efficient material screening and separation.


Vibration Screening Machine

Features

Adjustable Amplitude: The machine offers an adjustable amplitude through the weight regulator, allowing customization for different materials and screens.

Compact Structure and Small Size: Its compact structure and small size make it suitable for installation in limited spaces and easy integration into existing production lines.

Dust-Free Operation: The machine operates in a dust-free manner, ensuring a clean and hygienic working environment.

Low Noise and High Quality: It operates with low noise levels while delivering high-quality screening results with precise and accurate particle separation.

Low Energy Consumption: The XZS Vibration Screening Machine is designed for energy efficiency, minimizing power consumption while maintaining reliable screening performance.

Convenient Mobile Maintenance: It is designed for easy maintenance and mobility, allowing for convenient movement and servicing to reduce downtime.


The XZS Vibration Screening Machine is a reliable and versatile equipment designed for efficient material screening and continuous discharge of coarse and small particles. It features an adjustable amplitude, enabling customization for different materials and screens. With its compact structure and small size, it can be easily installed in limited spaces and integrated into existing production lines. The machine operates in a dust-free manner, ensuring a clean and hygienic working environment. It operates with low noise levels while delivering high-quality screening results with precise and accurate particle separation. Designed for energy efficiency, it minimizes power consumption while providing reliable and effective screening performance. The XZS Vibration Screening Machine also offers convenient mobile maintenance, allowing for easy movement and servicing to reduce downtime and optimize operational efficiency.

Specifications

Specification and modelXZS400XZS600XZS800XZS1000XZS1200
Production capacity (kg/h)50-500100-1000200-1500300-2000400-2500
Mesh number2-200
Vibration frequency (times /min)1500
Power (kw)0.20.40.751.11.5
Weight (kg)200250320420420
Overall dimension650x500x800860x650x9001100x850x9501350x1100x11001600x1250x1100
(L X W X H)

FAQ - Have any questions?

What is the XZS Vibration Screening Machine?

The XZS Vibration Screening Machine is a specialized equipment used for efficient and accurate screening of various materials in industries such as pharmaceuticals, chemicals, and food processing.

How does the XZS Vibration Screening Machine work?

The XZS Vibration Screening Machine utilizes vibration motors to generate vibration, causing the materials to move and separate on the screen surface based on their particle size. This process enables effective screening and classification of the materials.

What are the key features of the XZS Vibration Screening Machine?

The key features of the XZS Vibration Screening Machine include high screening efficiency, adjustable amplitude and frequency, easy operation, low noise emission, compact design, and a wide range of application capabilities.

What types of materials can the XZS Vibration Screening Machine handle?

The XZS Vibration Screening Machine can handle a wide variety of materials, including powders, granules, and particles of various sizes. It is suitable for screening materials in industries ranging from pharmaceuticals to chemical manufacturing.

Can the XZS Vibration Screening Machine handle wet materials?

Yes, the XZS Vibration Screening Machine is designed to handle both dry and wet materials. It offers efficient screening and separation of wet materials, providing versatility in processing different types of substances.

Is the XZS Vibration Screening Machine customizable?

Yes, the XZS Vibration Screening Machine can be customized to meet specific requirements. Customization options include screen mesh size, material contact parts, and additional features tailored to the customer's needs.

What are the maintenance requirements for the XZS Vibration Screening Machine?

The XZS Vibration Screening Machine requires regular inspection, cleaning, and lubrication to ensure optimal performance. Maintenance procedures are straightforward and can be easily performed by following the provided guidelines.

Does the XZS Vibration Screening Machine offer different screening modes?

Yes, the XZS Vibration Screening Machine offers various screening modes, including continuous vibration, intermittent vibration, and low amplitude high-frequency vibration. These modes cater to different material characteristics and screening requirements.

Can the XZS Vibration Screening Machine be integrated into existing production lines?

Yes, the XZS Vibration Screening Machine is designed for easy integration into existing production lines. It can be seamlessly connected with other equipment such as feeders, conveyors, and packaging machines.

How can I obtain technical support and spare parts for the XZS Vibration Screening Machine?

Technical support and spare parts for the XZS Vibration Screening Machine can be obtained by contacting NOAH(yznoah@noah-pm.com). We will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
