CW Series High Speed Pulverizer | Cosmetic Powder Grinding Machine

Description

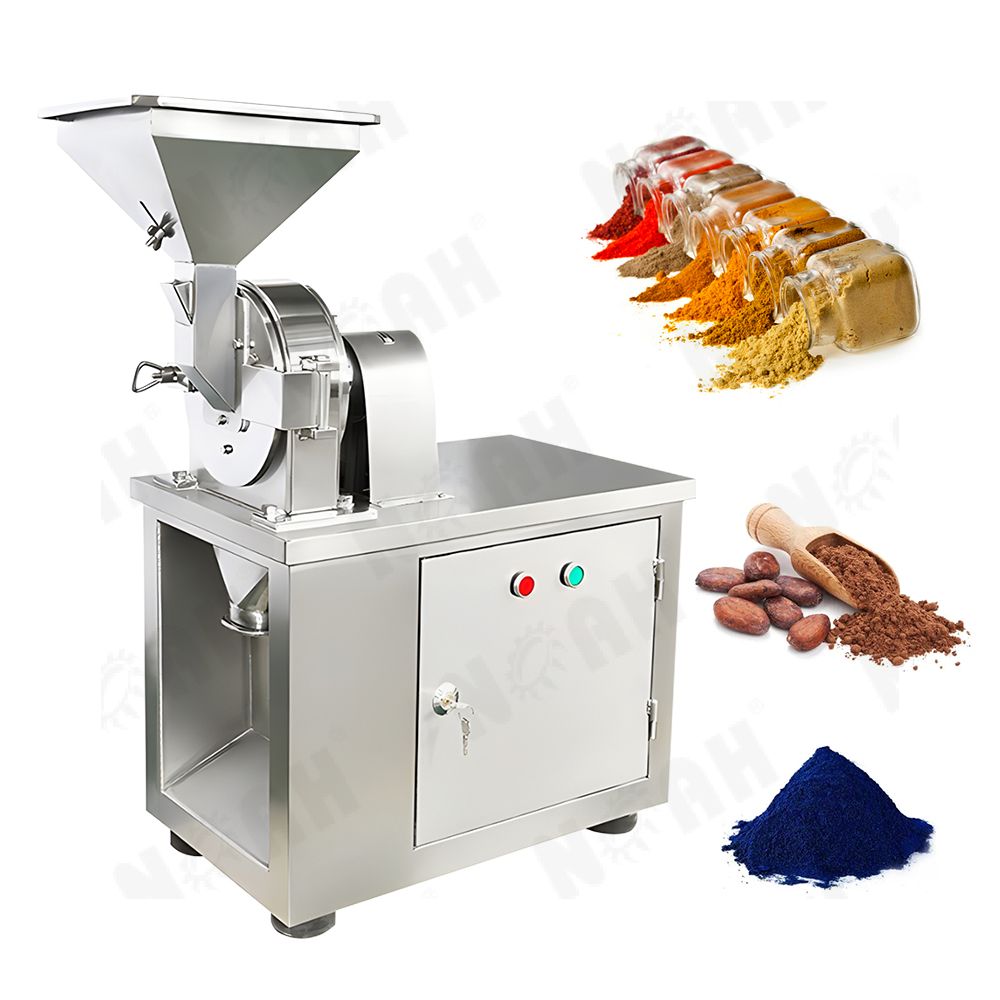

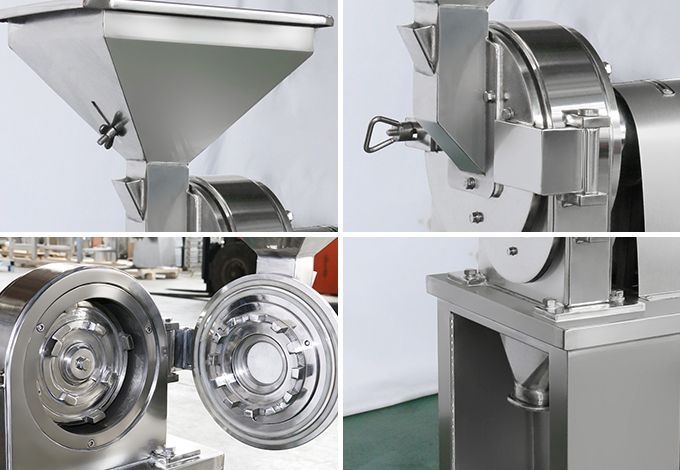

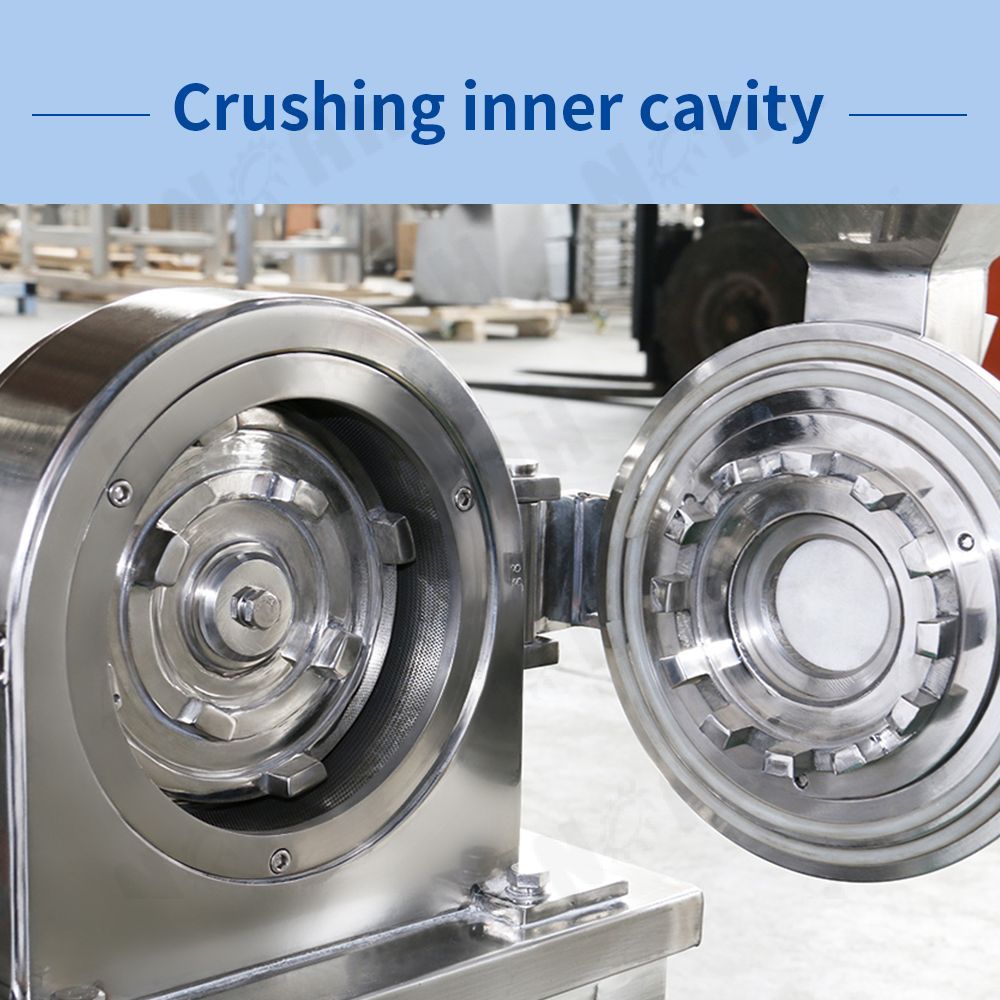

The CW Series High-Speed Pulverizer is known for its simplicity in structure and ease of use. The pulverizing chamber can be easily disassembled, assembled, and cleaned, facilitating efficient maintenance. Special treatment of the parts in contact with materials ensures corrosion resistance, while the use of stainless steel for the surficial parts guarantees durability and hygiene.

This pulverizer is specifically designed for the pharmaceutical industry, providing excellent performance in material smashing. It is capable of pulverizing drugs, chemical materials, foodstuff, and other substances with medium hardness and low viscosity.

The CW Series High-Speed Pulverizer is available in two types: A type, which features a hammer mill, and B type, which employs fluted discs for pulverization. This allows users to choose the most suitable option based on their specific requirements.

Main Technical Specification

ITEM		TYPE
ITEM		CW130A	CW180B
Spindle Rotating Speed	rpm	4200	4200
Motor of Main Shaft	kw	1.5	2.2
Production Capacity	kg/h	1-3	3-10
Number of Hammer	pcs	3	6
Feeding Size	mm	≤5	≤5
Output Size	mesh	20-120	20-120
Overall Size	mm	400700800	450750880
Net Weight	kg	80	90
Gross Weight	kg	95	110

FAQ - Have any questions?

What is the CW Series High Speed Pulverizer?

The CW Series High Speed Pulverizer is a type of pulverizing machine designed for high-speed grinding and pulverization of various materials into fine particles.

What are the key features of the CW Series High Speed Pulverizer?

The key features of the CW Series High Speed Pulverizer include high grinding speed, efficient particle size reduction, compact design, easy operation, low energy consumption, and versatile application capabilities.

What materials can be pulverized using the CW Series High Speed Pulverizer?

The CW Series High Speed Pulverizer can pulverize a wide range of materials, including but not limited to chemicals, pharmaceuticals, food products, minerals, and plastics.

What is the working principle of the CW Series High Speed Pulverizer?

The CW Series High Speed Pulverizer operates on the principle of high-speed impact grinding, where the material is fed into the grinding chamber and subjected to high-speed impact forces generated by rotating hammers or blades.

What are the available sizes and capacities of the CW Series High Speed Pulverizer?

The CW Series High Speed Pulverizer is available in various sizes and capacities to accommodate different pulverizing requirements. Please refer to the product specifications for detailed information.

Is the CW Series High Speed Pulverizer suitable for continuous operation?

Yes, the CW Series High Speed Pulverizer is designed for continuous operation, allowing for high-volume pulverization of materials.

Can the CW Series High Speed Pulverizer handle heat-sensitive materials?

Yes, the CW Series High Speed Pulverizer is suitable for pulverizing heat-sensitive materials due to its efficient grinding process, which minimizes heat generation.

Is the CW Series High Speed Pulverizer easy to clean and maintain?

Yes, the CW Series High Speed Pulverizer is designed for easy cleaning and maintenance. It features accessible components and quick disassembly for efficient cleaning and maintenance operations.

What safety measures are incorporated in the CW Series High Speed Pulverizer?

The CW Series High Speed Pulverizer is equipped with safety features such as interlocking mechanisms, safety guards, and overload protection to ensure operator safety during operation.

Where can I find technical support or spare parts for the CW Series High Speed Pulverizer?

For technical support and spare parts inquiries, you can contact NOAH(yznoah@noah-pm.com). We will provide the necessary assistance and information.
