Grinding Machine

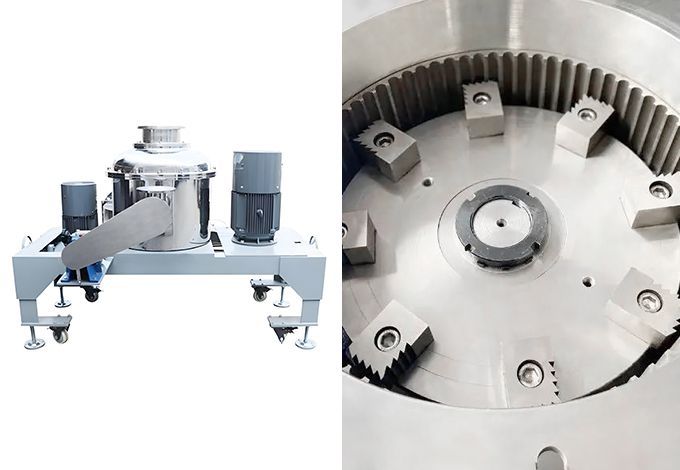

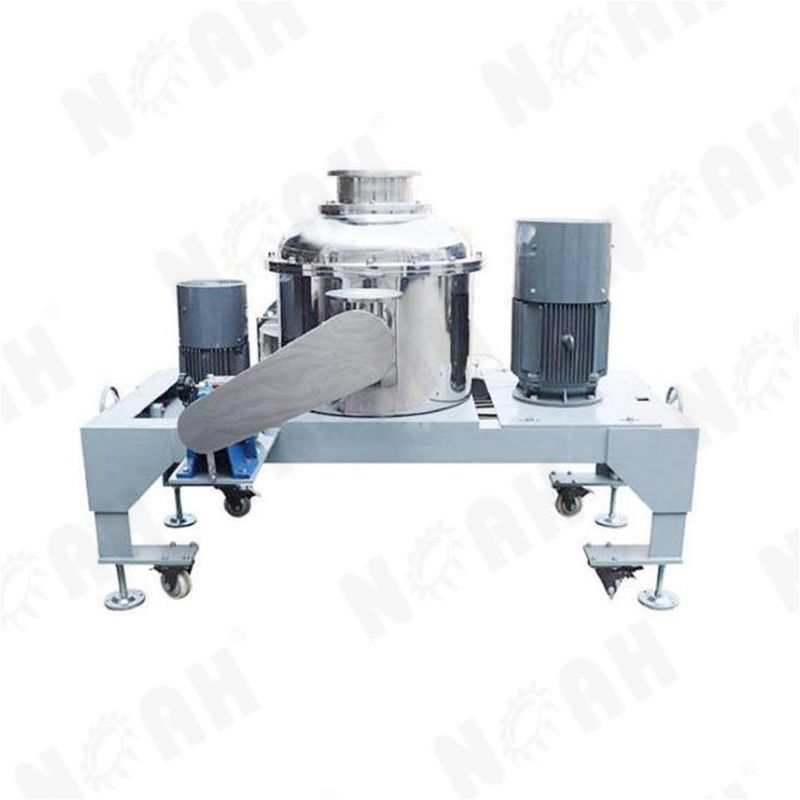

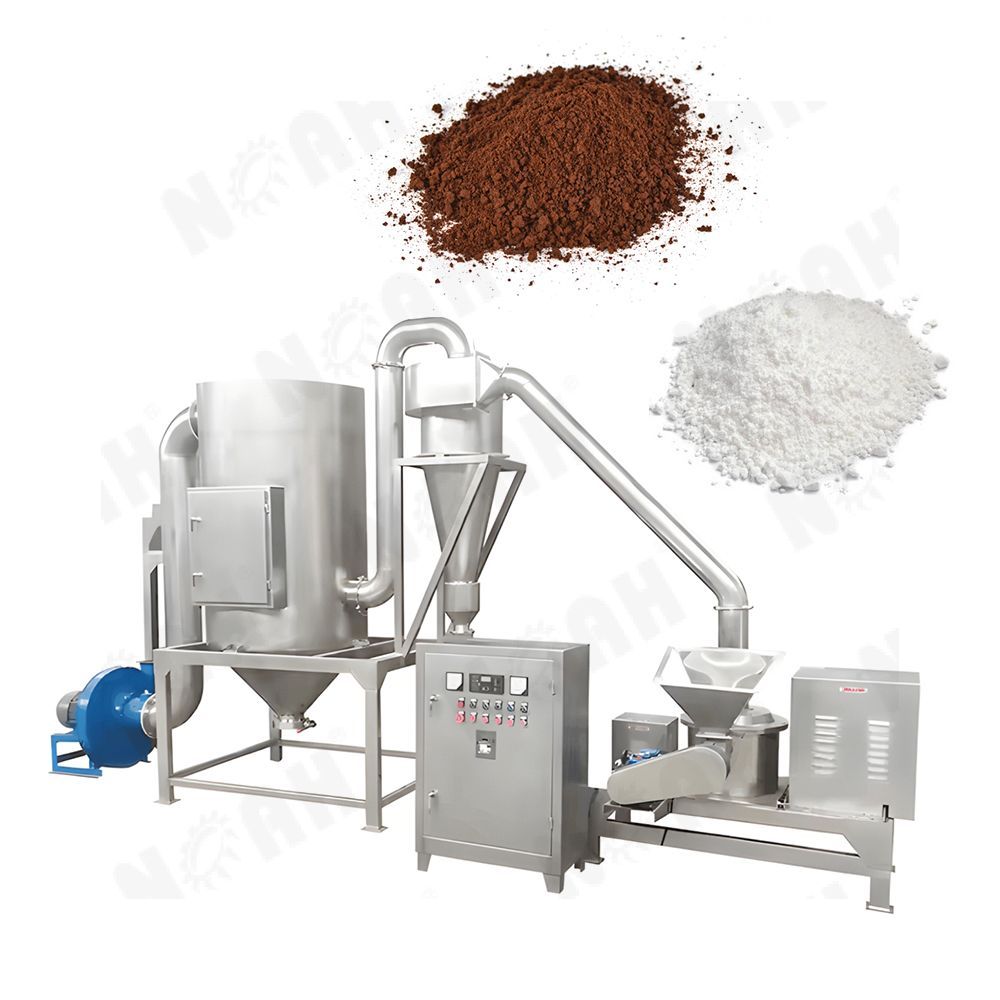

GFJ Series · All Ceramic Mechanical Pulverizer

Efficient and precise pulverization for enhanced material processing and production with our advanced pulverizer machine.

GFJ Series · All Ceramic Mechanical Pulverizer

Efficient energy-saving crushing.

Controlled product discharge.

Wear-resistant ceramic protection.

Suitable for sensitive materials.

Flexibility for precise crushing.

Adjustable particle size distribution.

Green and automated integration.

Intelligent control capabilities.

Description

powder

Applications

The GFJ Series · All Ceramic Mechanical Pulverizer is widely used in various industries such as lithium batteries, high-tech ceramics, electronic materials, and more. It is particularly suitable for materials with hardness below 5 and those sensitive to excessive fine powder. It is also effective for disintegration and disaggregation of materials after sintering or drying.


Chemical powder grinding machine

Features

Combination of "mechanical impact" and "airflow vortex" for moderate crushing strength and reduced energy consumption.

Integrated design of crushing and grading for uniform and controllable product discharge.

Wear-resistant ceramic protection to avoid metal impurity contamination.

Suitable for materials with hardness below 5 and those sensitive to fine powder.

Flexibility to achieve low dew point closed-circuit crushing and different crushing requirements.

Integration with turbine classifier for further particle size distribution adjustment.

Green and environmentally friendly with automated production line integration.

Low labor intensity and intelligent online and remote control capabilities.

The GFJ Series · All Ceramic Mechanical Pulverizer uses a combination of "mechanical impact" and "airflow vortex" to efficiently crush materials with reduced energy consumption. It features an integrated design for uniform product discharge and wear-resistant ceramic protection to prevent metal impurity contamination. It is suitable for materials with hardness below 5 and those sensitive to fine powder. The pulverizer can be adjusted for low dew point closed-circuit crushing and offers flexibility in achieving different crushing requirements. It integrates seamlessly into automated production lines, ensuring environmental friendliness and reducing labor intensity.

Finished Product Display

powder
powder
powder
powder
powder
powder

Specifications

Specification modelGFJ-350GFJ-450GFJ-550GFJ-750
Feeding size(mesh)60~32560~32560~32560~325
Outlet particle size3~1003~1003~1003~100
Processing capacity(kg/h)20~20050~500100~1000300~3000
Main power(kW)10172745

FAQ - Have any questions?

What is the GFJ Series · All Ceramic Mechanical Pulverizer?

The GFJ Series · All Ceramic Mechanical Pulverizer is a specialized machine used for mechanical pulverization and grinding of various materials using ceramic components.

What are the key features of the GFJ Series · All Ceramic Mechanical Pulverizer?

The key features of the GFJSeries · All Ceramic Mechanical Pulverizer include all-ceramic construction, high pulverization efficiency, precise particle size control, low contamination, easy operation, and versatile application capabilities.

How does the GFJ Series · All Ceramic Mechanical Pulverizer achieve high pulverization efficiency?

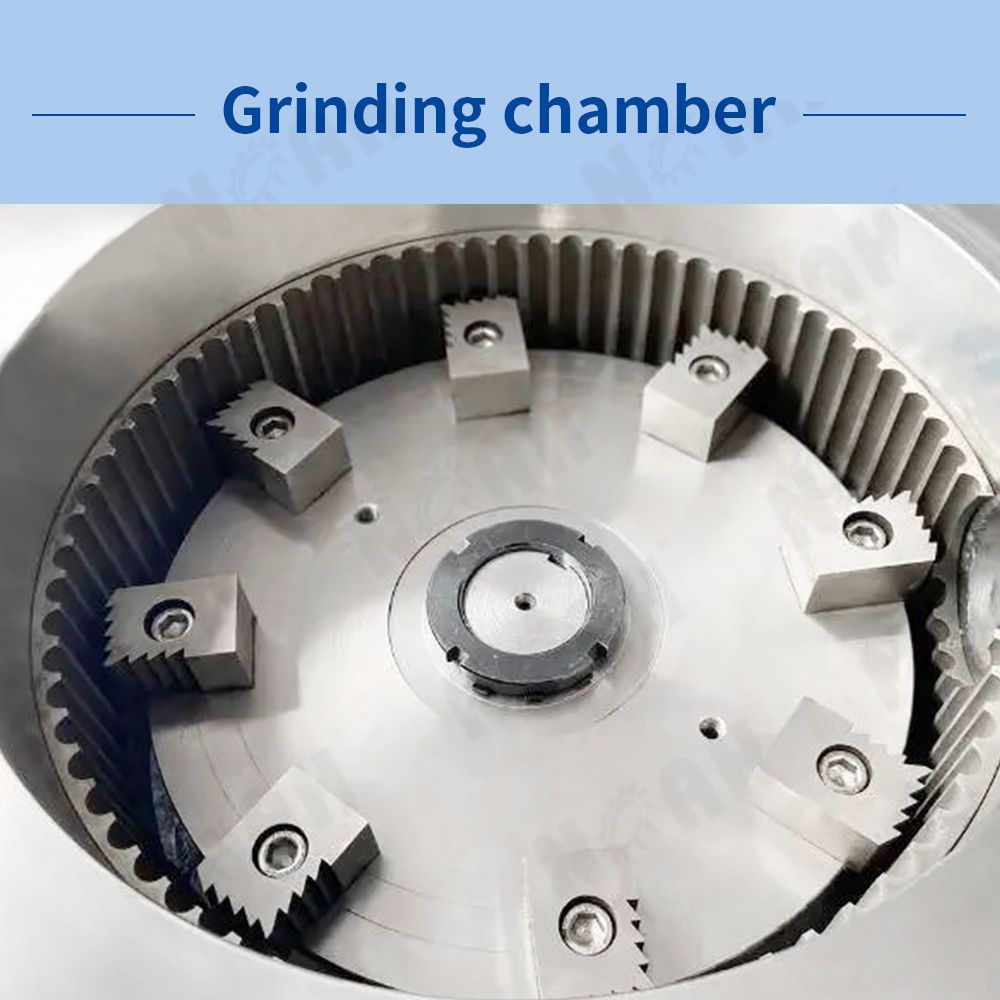

The GFJ Series · All Ceramic Mechanical Pulverizer utilizes high-speed rotating ceramic blades to mechanically pulverize and grind materials. The ceramic blades provide sharp cutting edges and excellent wear resistance, ensuring efficient pulverization.

Can the GFJ Series · All Ceramic Mechanical Pulverizer control the particle size of the pulverized materials?

Yes, the GFJ Series · All Ceramic Mechanical Pulverizer offers precise particle size control. It allows users to adjust the operating parameters, such as blade speed and feed rate, to achieve the desired particle size distribution for their specific application requirements.

What are the advantages of the all-ceramic construction of the GFJ Series · All Ceramic Mechanical Pulverizer?

The all-ceramic construction of the GFJ Series · All Ceramic Mechanical Pulverizer ensures low contamination and high purity of the pulverized materials. It is particularly suitable for pulverizing sensitive materials, such as pharmaceuticals, chemicals, and advanced ceramics.

Is the GFJ Series · All Ceramic Mechanical Pulverizer easy to operate?

Yes, the GFJ Series · All Ceramic Mechanical Pulverizer is designed for easy operation. It features user-friendly controls, intuitive interfaces, and automated or semi-automated operation modes, depending on the specific model.

What materials can be pulverized using the GFJ Series · All Ceramic Mechanical Pulverizer?

The GFJ Series · All Ceramic Mechanical Pulverizer can process a wide range of materials, including powders, granules, and brittle materials, such as pharmaceutical ingredients, chemicals, ceramics, and other similar substances.

Does the GFJ Series · All Ceramic Mechanical Pulverizer require additional equipment for material feeding and collection?

Yes, the GFJ Series · All Ceramic Mechanical Pulverizer may require additional equipment, such as a feeding system and a collection container or bag filter for material handling and collection. These accessories ensure efficient material feeding and dust control during the pulverization process.

Can the GFJ Series · All Ceramic Mechanical Pulverizer be used for heat-sensitive materials?

Yes, the GFJ Series · All Ceramic Mechanical Pulverizer is suitable for pulverizing heat-sensitive materials. The mechanical pulverization process generates minimal heat, helping to preserve the integrity of heat-sensitive substances.

Where can I find technical support or spare parts for the GFJ Series · All Ceramic Mechanical Pulverizer?

Technical support and spare parts for the CJJ Series · All Ceramic Mechanical Pulverizer can be obtained by contacting NOAH(yznoah@noah-pm.com). They will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
