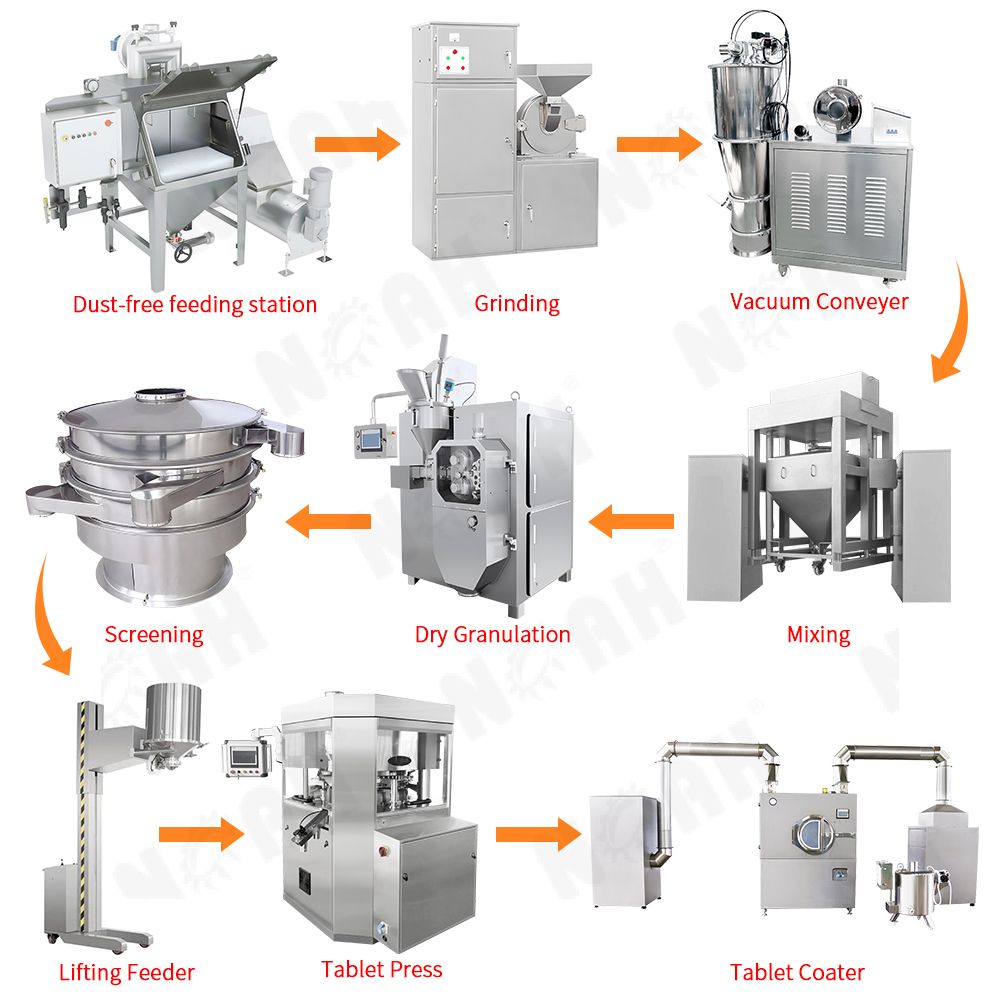

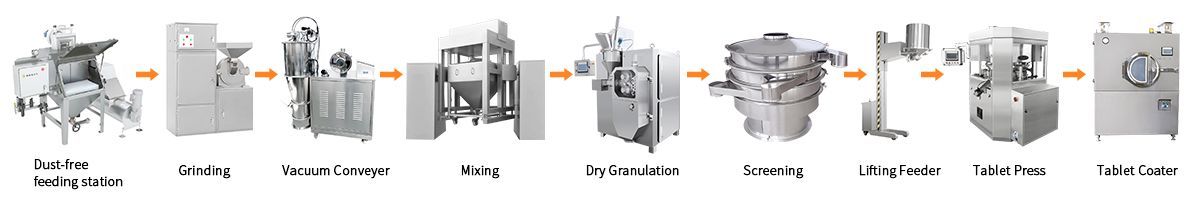

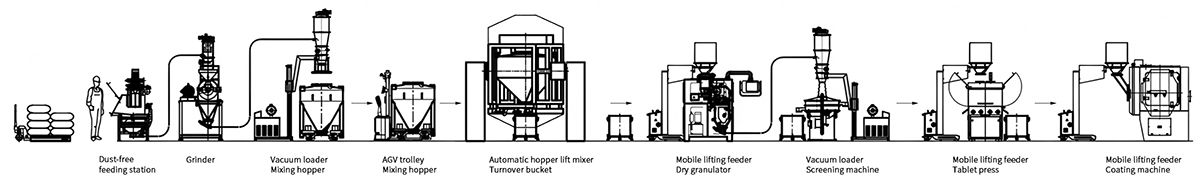

In the realm of pharmaceutical, chemical, and food processing industries, the dry granulation production line stands as a pivotal system for transforming raw materials into high-quality granular or tableted products without the need for moisture or solvents. This advanced production line integrates a series of specialized equipment, each playing a unique role in ensuring efficiency, precision, and product integrity. Let's delve into the detailed components and their functionalities within the dry granulation production line.

Dust-free Feeding Station

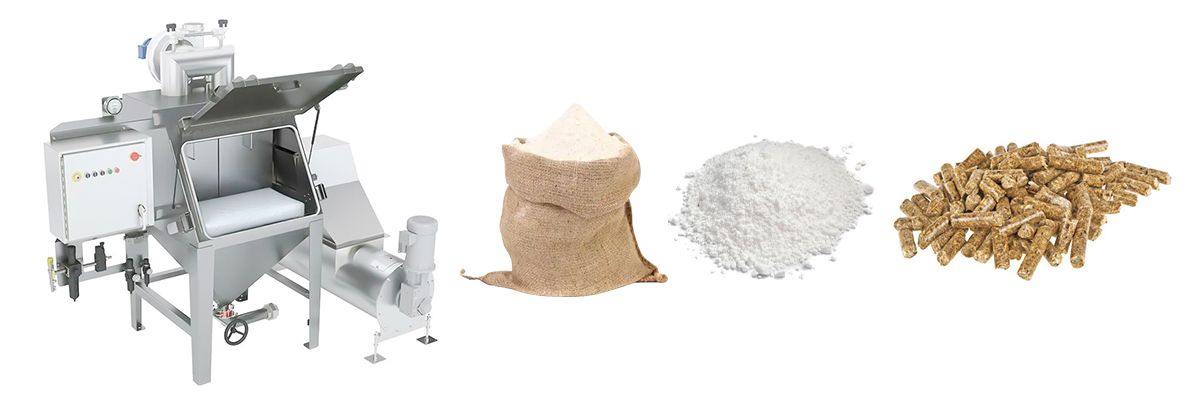

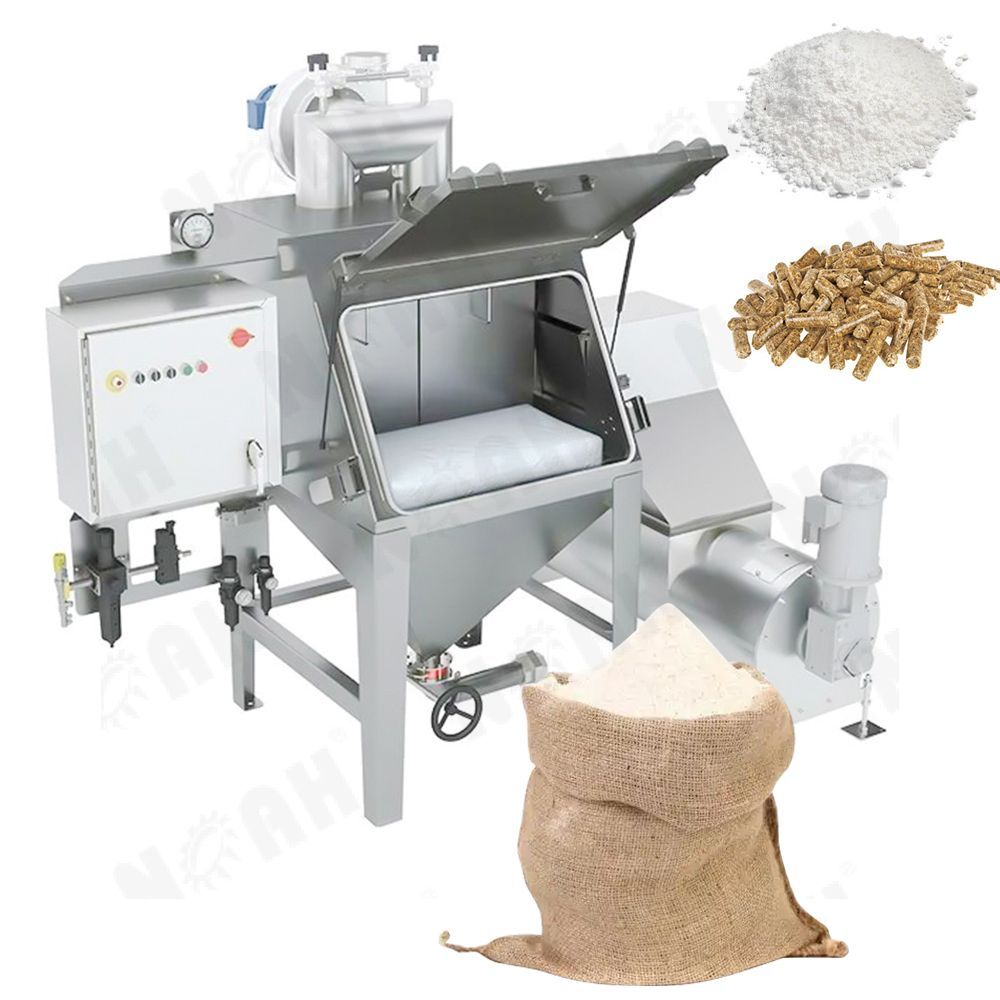

The dry granulation process commences with the Dust-free Feeding Station, a critical piece of equipment designed to minimize dust emissions during the initial material loading phase. Raw materials, which may be in powder form, are introduced into the production line through this station. Equipped with advanced dust collection mechanisms such as high-efficiency filters and negative pressure systems, it prevents the escape of fine particles into the surrounding environment. This not only ensures a clean and safe working atmosphere but also reduces material loss, thereby enhancing overall process efficiency. The dust-free feeding station is highly adaptable, capable of handling various types of powders with different flow properties, making it a versatile starting point for the production line.

Grinding

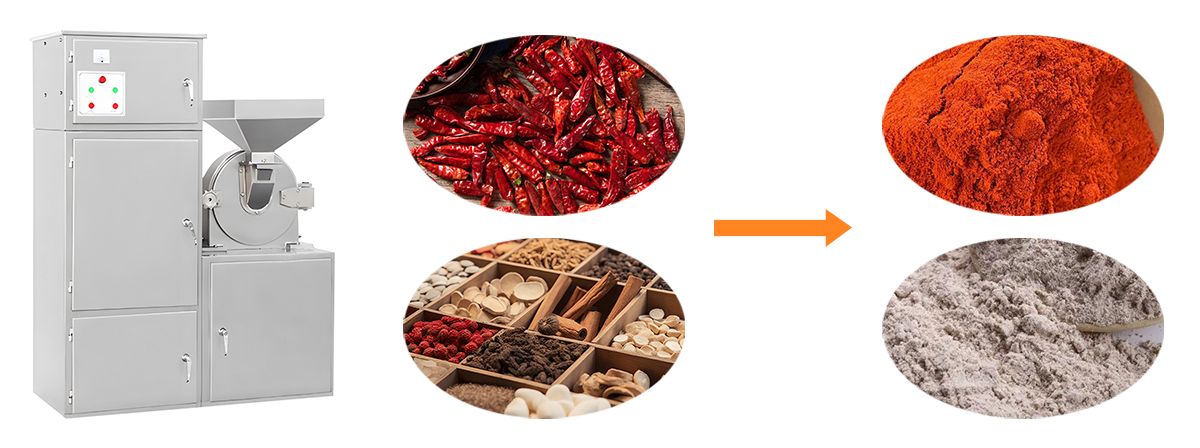

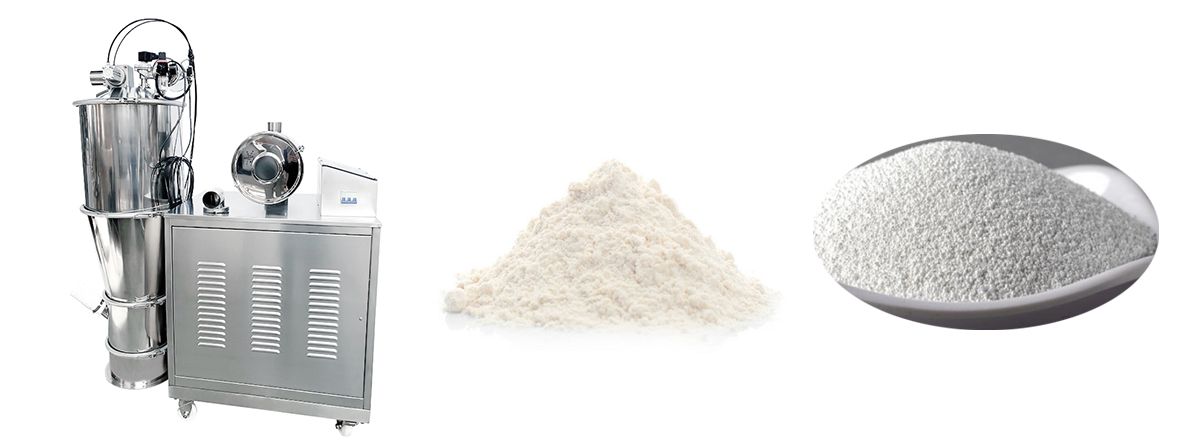

After the initial feeding, the raw materials often require size reduction to achieve a uniform particle size distribution, which is essential for subsequent processing steps. This is where the Grinding equipment comes into play. Utilizing mechanisms such as hammer mills, pin mills, or jet mills, the grinding process breaks down larger particles into smaller, more consistent ones. The choice of grinding equipment depends on the nature of the material, including its hardness, brittleness, and desired particle size. Precise control over the grinding parameters ensures that the resulting powder meets the strict specifications required for optimal mixing and granulation. Uniform particle size also promotes better flowability, which is crucial for efficient material handling throughout the rest of the production line.

Vacuum Conveyer

Once the materials have been ground to the desired size, they need to be transported to the next stage of the process. The Vacuum Conveyer offers a hygienic and efficient solution for this task. Operating on the principle of negative pressure, it sucks the powdered material through a pipeline and delivers it to the next equipment, such as the mixer. This method of conveyance eliminates the need for mechanical contact with the material, reducing the risk of contamination and ensuring product purity. Additionally, vacuum conveyers are highly efficient, with minimal material residue, and can be easily cleaned, making them ideal for industries with strict hygiene standards.

Mixing

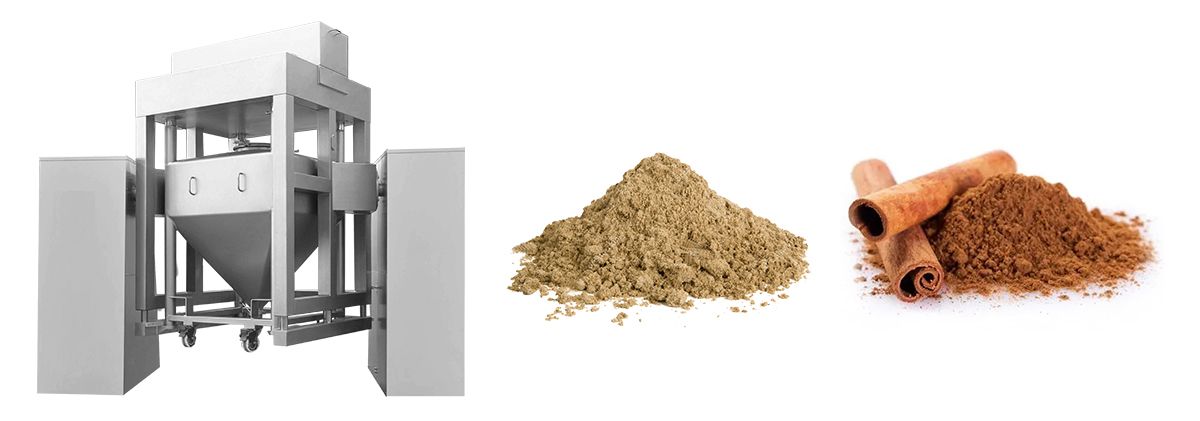

Achieving a homogeneous mixture of the ground materials is vital for the quality and consistency of the final product. The Mixing equipment is responsible for this critical step. Various types of mixers, such as ribbon blenders, high-shear mixers, or planetary mixers, are used depending on the specific requirements of the formulation. The mixer agitates the materials, ensuring that all components are evenly distributed. This uniform mixing is essential for ensuring that each granule or tablet contains the correct proportion of active ingredients and excipients. The mixing process can be controlled for time, speed, and intensity to achieve the desired level of homogeneity, with advanced systems offering real-time monitoring and adjustment capabilities.

Dry Granulation

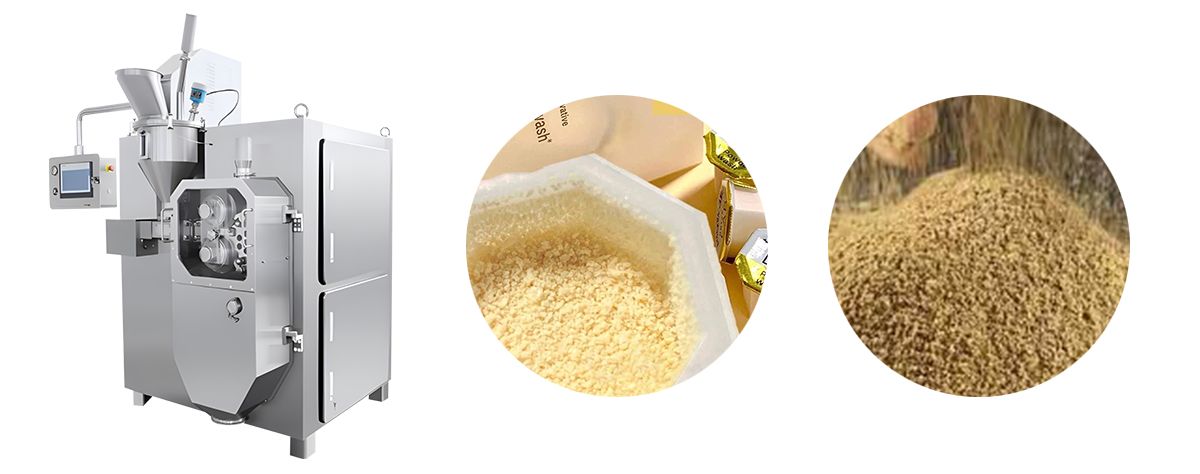

The core of the production line is the Dry Granulation process, which converts the homogeneous powder mixture into granules without the use of liquids. This is typically achieved using a roller compactor. The powder is fed between two counter-rotating rollers, which apply high pressure to compress the powder into a dense sheet or slug. The slugs are then broken down into granules of the desired size using a granulator. Dry granulation offers several advantages over wet granulation, including reduced processing time, lower energy consumption, and the ability to handle moisture-sensitive materials. It also eliminates the need for drying steps, which simplifies the production process and reduces the risk of product degradation.

Screening

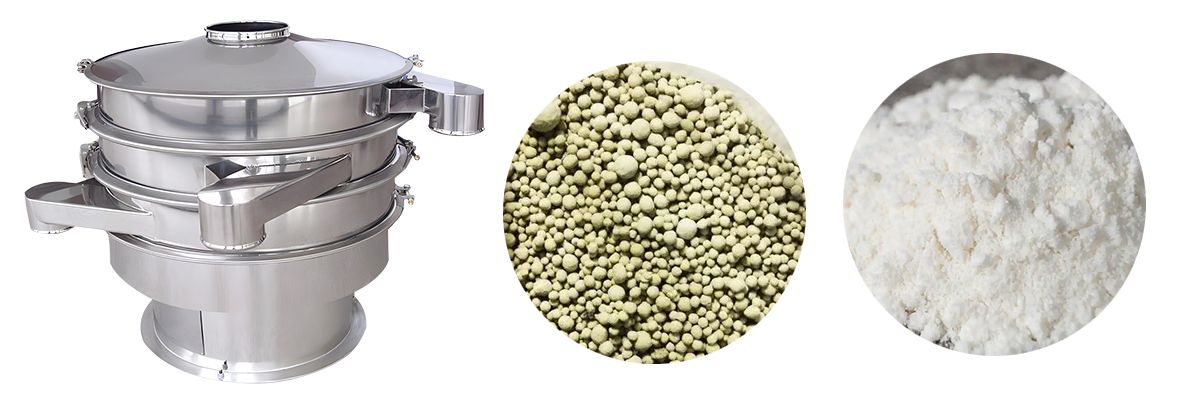

After granulation, the resulting granules may have a range of particle sizes, including some oversized or undersized particles. The Screening equipment is used to classify the granules, ensuring that only those within the specified size range proceed to the next stage. Vibrating screens or sifters with different mesh sizes are employed to separate the granules. Oversized granules are typically recycled back to the granulator for further processing, while undersized particles (fines) may be returned to the mixer. This screening step ensures that the granules have a consistent size, which is crucial for subsequent processes such as tableting, as it promotes uniform flow and compression.

Lifting Feeder

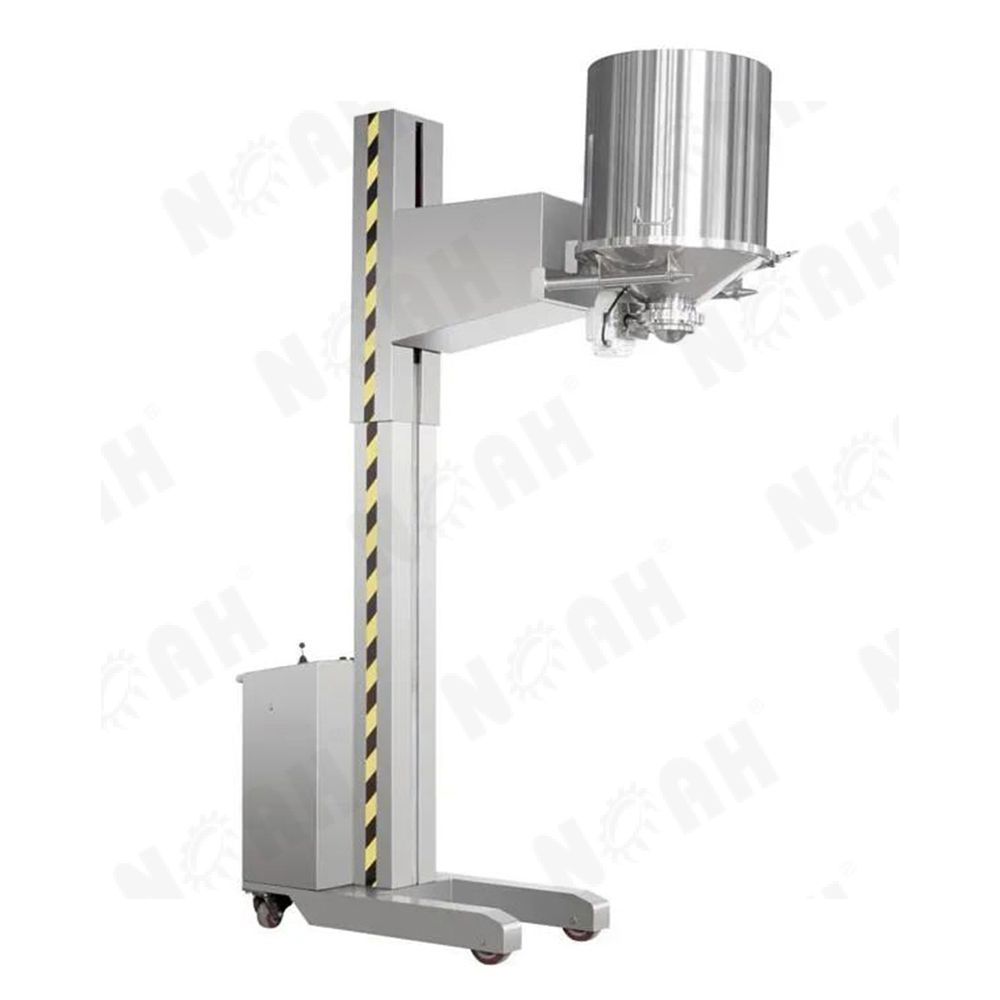

In cases where the tablet press or other downstream equipment is located at a higher elevation, the Lifting Feeder is used to transport the granules or tablets to the required height. This equipment typically consists of a conveyor belt or a screw conveyor housed within a vertical or inclined structure. The lifting feeder ensures a continuous and steady supply of material to the next stage, preventing interruptions in the production process. It is designed to handle the material gently to avoid breakage or degradation, maintaining the integrity of the granules or tablets. Like other equipment in the line, lifting feeders are easy to clean and maintain, ensuring compliance with hygiene standards.

Tablet Press

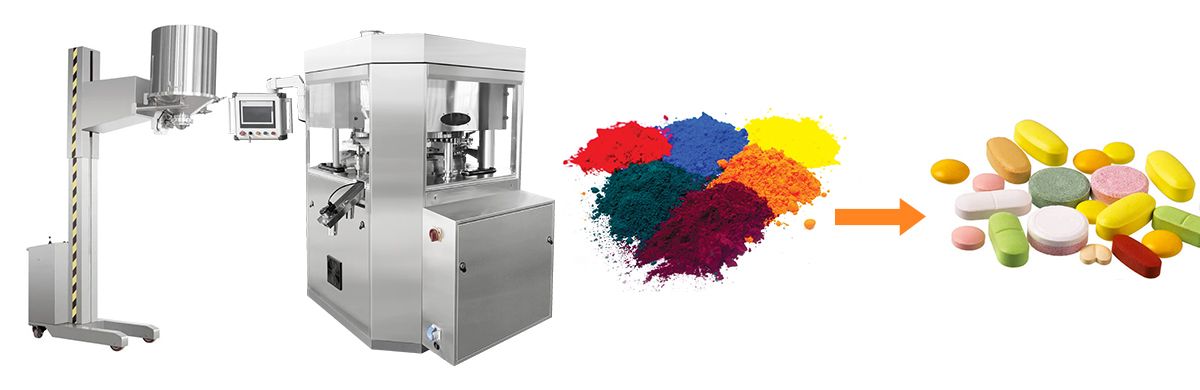

For applications requiring tableted products, the screened granules are fed into the Tablet Press. This machine compresses the granules into tablets of precise shape, size, and hardness. The tablet press operates by filling a die cavity with the granules, then applying pressure via upper and lower punches to compact the granules into a solid tablet. Modern tablet presses are highly automated, with features such as automatic feeding, weight control, and hardness testing to ensure the quality of each tablet. They can produce tablets at high speeds, making them suitable for large-scale production. The design of the punches and dies can be customized to create tablets with specific logos, scores, or other features.

Tablet Coater

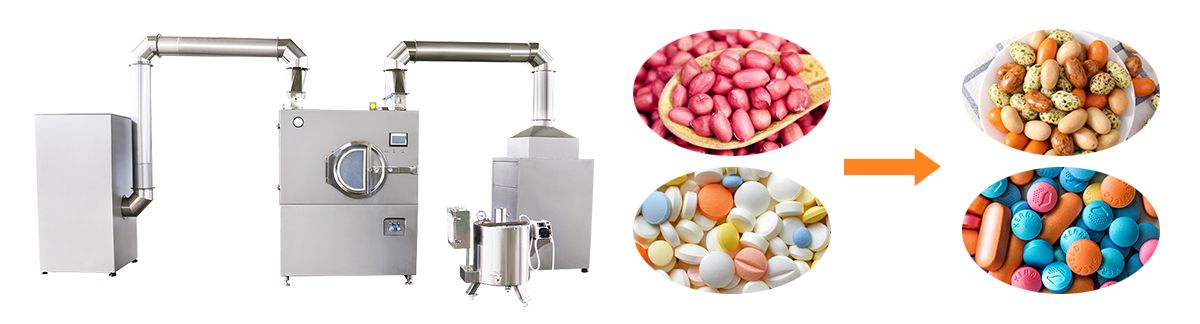

For tablets that require a coating, such as enteric coatings, sustained-release coatings, or decorative coatings, the Tablet Coater is the final piece of equipment in the production line. The tablets are placed in a rotating drum, and a coating solution (which may be a polymer, pigment, or other functional material) is sprayed onto the surface of the tablets. The drum's rotation ensures that each tablet is uniformly coated, while hot air is circulated to dry the coating. Advanced tablet coaters offer precise control over parameters such as spray rate, temperature, and drum speed, ensuring a consistent and high-quality coating. The coating process not only enhances the appearance of the tablets but also provides functional benefits, such as protecting the active ingredient from stomach acid or controlling the release of the drug.

In conclusion, the dry granulation production line is a sophisticated system that integrates multiple pieces of equipment to transform raw materials into high-quality granules or tablets. Each component, from the dust-free feeding station to the tablet coater, plays a crucial role in ensuring efficiency, precision, and product quality. By leveraging advanced technologies and precise process control, this production line meets the stringent requirements of various industries, delivering consistent and reliable products.
