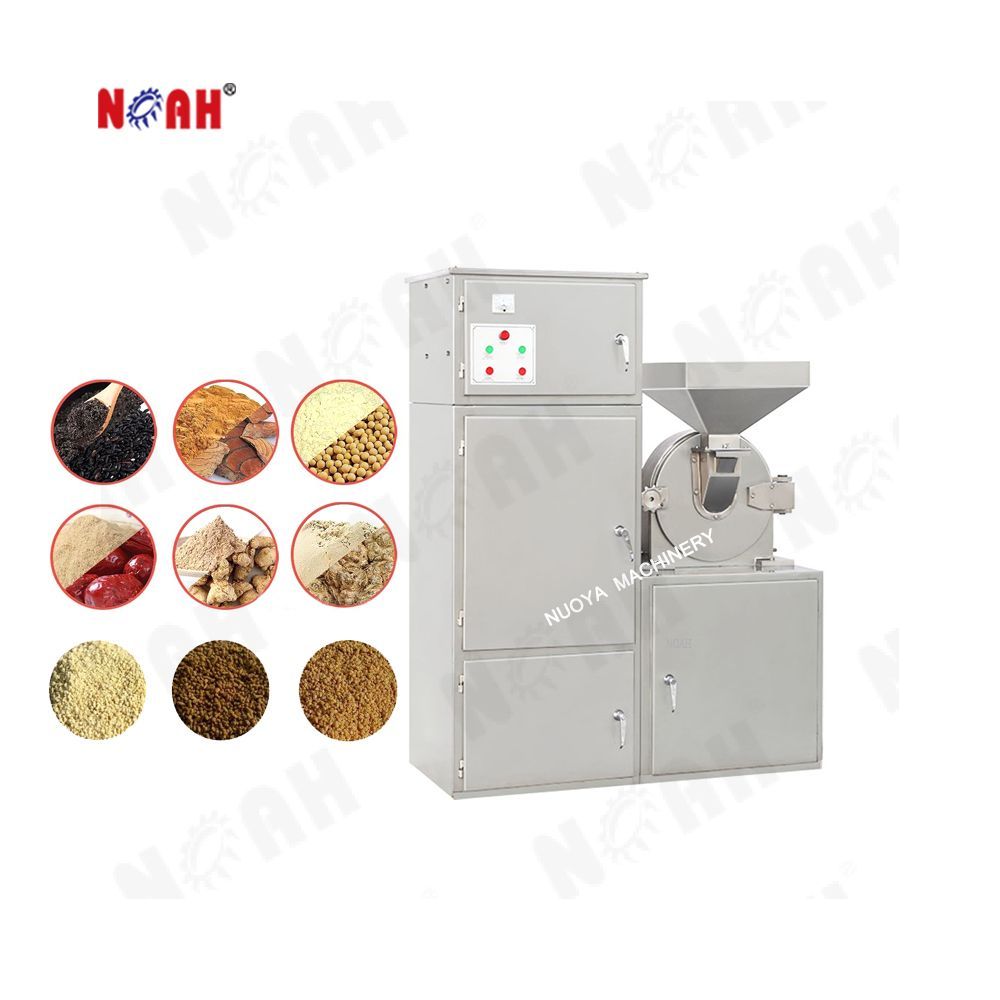

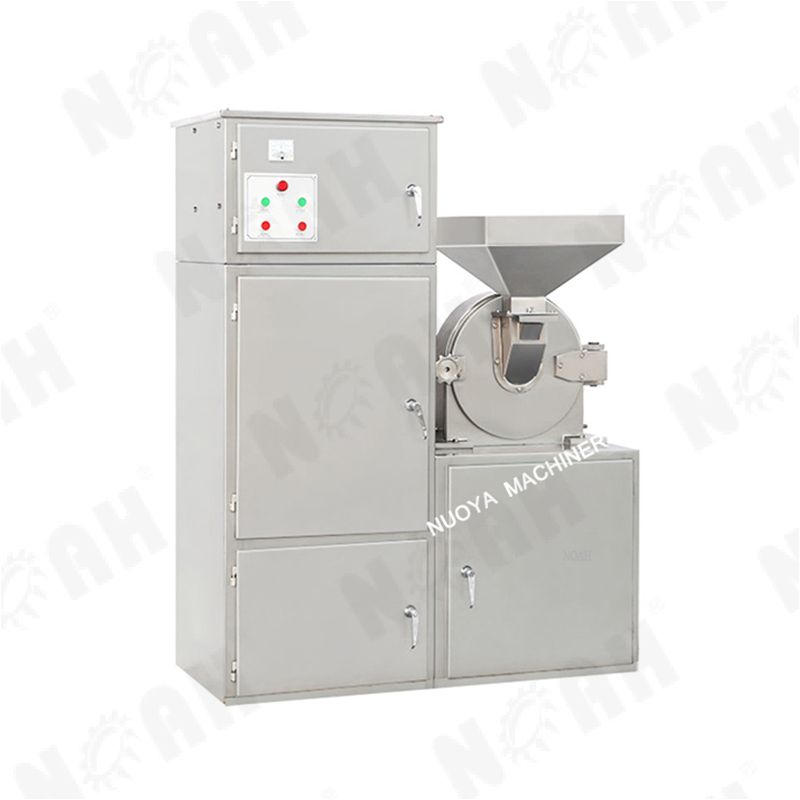

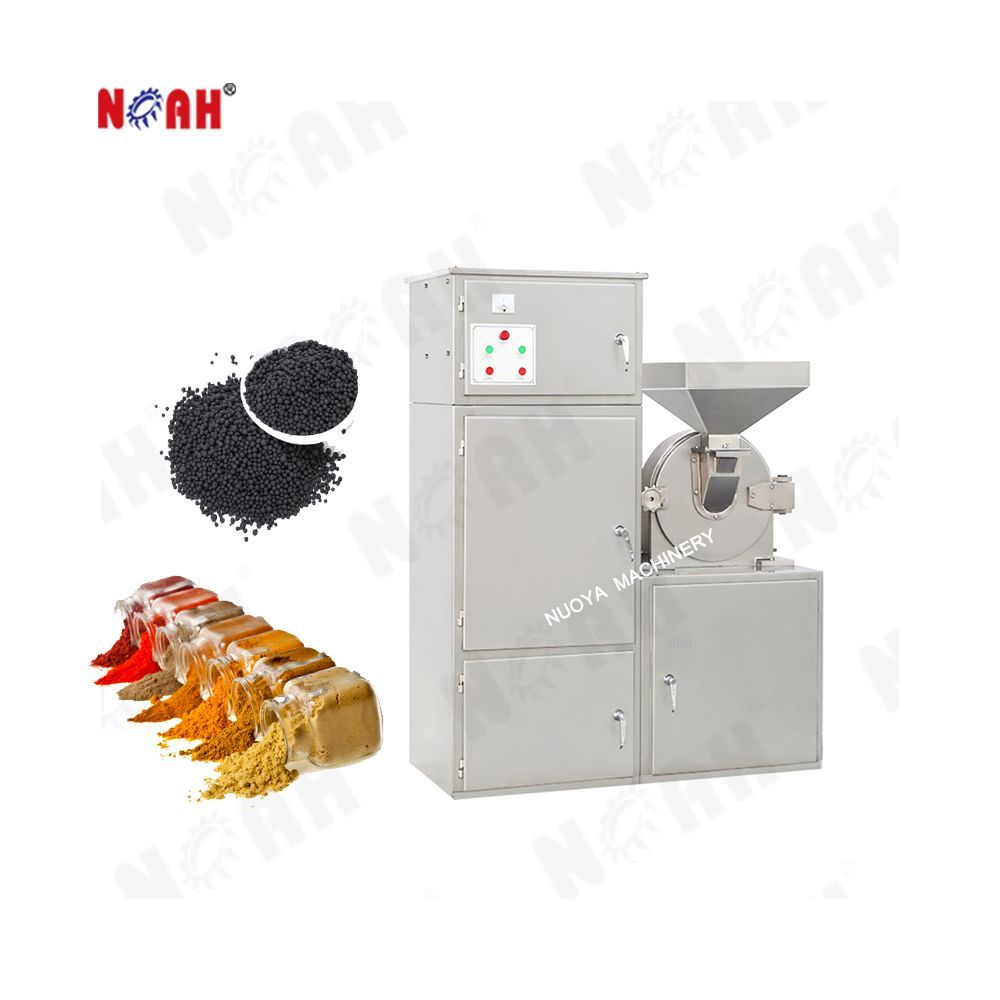

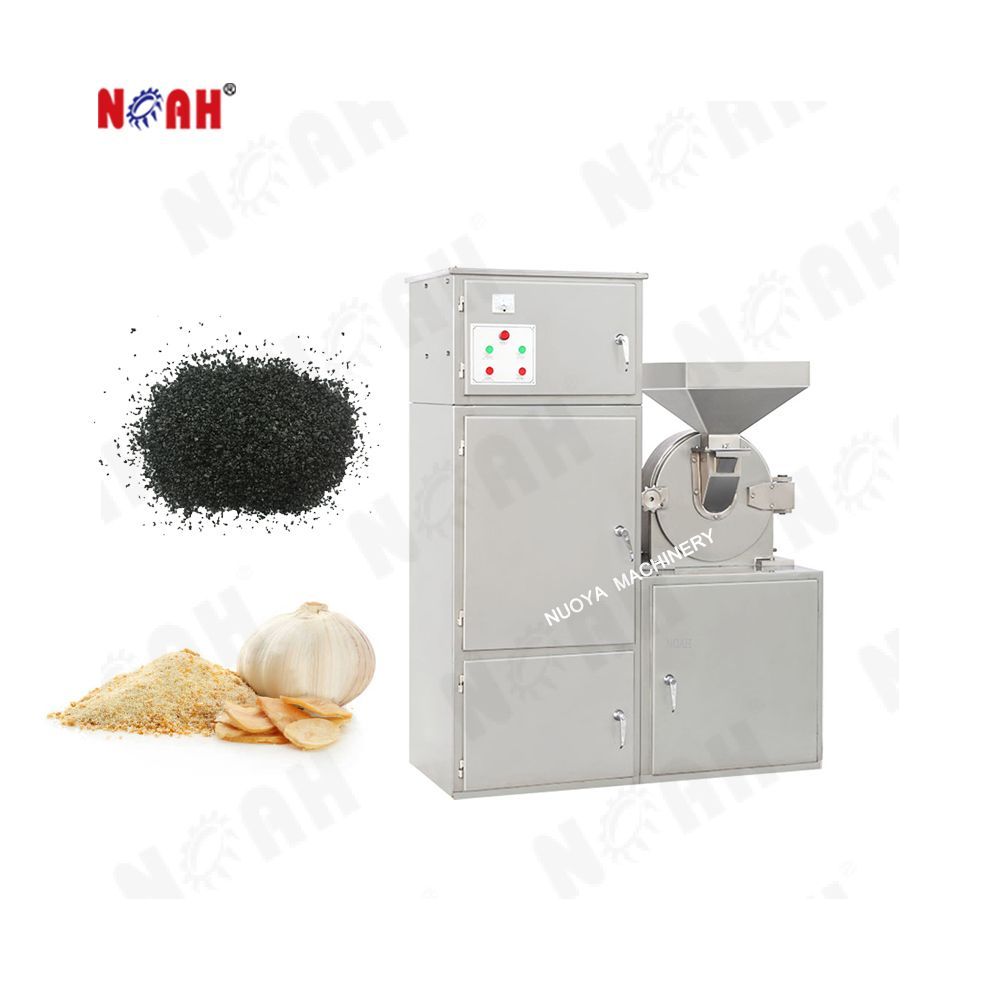

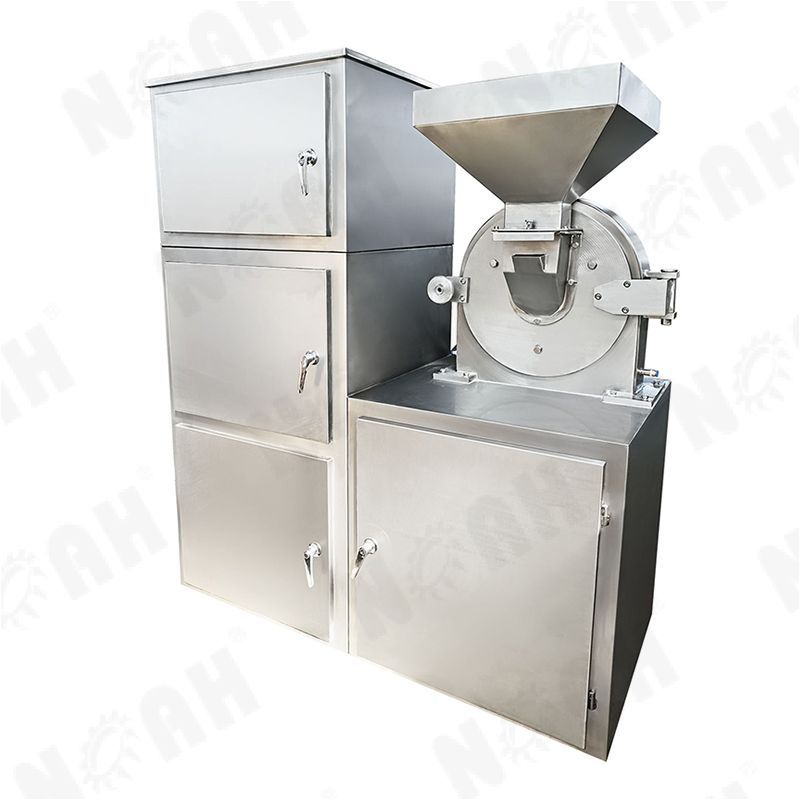

GF Series Plverizer Set
YANGZHOU NUOYA MACHINERY CO.,LTD
+86 133 2812 5359
This machine is a new type equipment combining smashing and dust collection as a whole, it has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry and so on.
Description
Main Application:
This machine is a new type of equipment combining smashing and dust collection as a whole,
it has wide applications and is widely used in the pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry and so on..
Working Principle:
It's adapted to the vertical low raw material discharging equipment, it makes some raw materials with poor fluidity after broken can be discharged unblocked and no the phenomenon of accumulated powder.
Its principle of work is as follows: when raw material enters into the crushing chamber, it is broken under the impact of movable and fixed fluted discs that are rotated in high speed and then become the needed raw material through the screen.
Its Pulverizer and duster are all made of qualified stainless steel. The inner wall of the housing is smooth and level being processed through superior technology. Therefore it can make the powder discharging more flow and is beneficial to the work of cleaning too. The gear disk of high-speed and movable teeth is welded through special welding, which makes the teeth is durable, safe, and reliable. The machine conforms with the requirements of "GMP".
Through balance test of gear disk with high speed. It is proved that even if this machine is rotated at high speed. It is stable and has no vibration during the period of ordinary operation. Being adapted to the interlock apparatus between the gear disk with high speed and the driving shaft, it is completely reliable in operation.
According to customer needs, may increase the water cooling device, and conveyer screw.

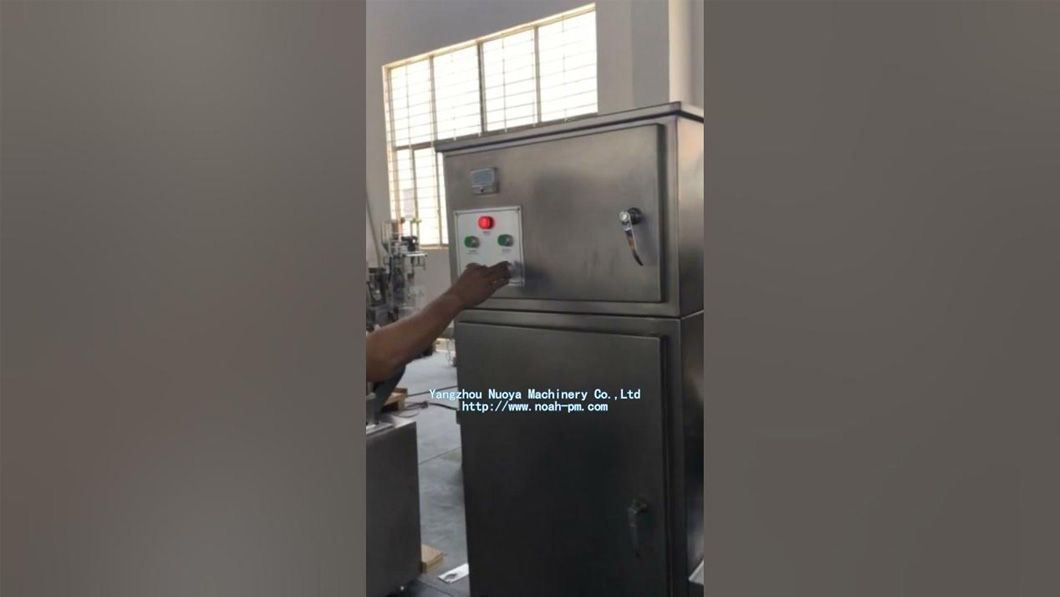

Product Video
Finished Product Display
Technical Parameters
| ITEM | TYPE | ||
| GF20B | GF30B | GF40B | |
| Capacity | 60-150 kg/h | 100-300 kg/h | 160-800 kg/h |
| Spindle Rotating Speed | 4500 rpm | 3800 rpm | 3400 rpm |
| Powder Fineness | 60-150 mesh | 80-120 mesh | 60-120 mesh |
| Feeding Size | <6mm | < 10 mm | <12 mm |
| Crusher Motor | 4 kw | 5.5 kw | 7.5 kw |
| Overall Dimensions | 1100*600*1650mm | 1200*650*1650mm | 1350*700*1700mm |
| Net Weight | 250kg | 320kg | 550kg |
FAQ - Have any questions?
What is the GF Series Pulverizer Set?
The GF Series Pulverizer Set is a type of pulverizing machine used for grinding and pulverizing various materials into fine powder.
What are the key features of the GF Series Pulverizer Set?
The key features of the GF Series Pulverizer Set include high grinding efficiency, uniform particle size distribution, easy operation, low noise, compact design, and versatile application capabilities.
What materials can be processed using the GF Series Pulverizer Set?
The GF Series Pulverizer Set can process a wide range of materials, including but not limited to chemicals, pharmaceuticals, food products, minerals, plastics, and agricultural products.
What is the working principle of the GF Series Pulverizer Set?
The GF Series Pulverizer Set operates on the principle of impact grinding, where the material is fed into the grinding chamber and subjected to high-speed impact forces generated by the rotating hammers or blades.
What are the available sizes and capacities of the GF Series Pulverizer Set?
The GF Series Pulverizer Set is available in various sizes and capacities to meet different pulverizing requirements. Please refer to the product specifications for detailed information.
Is the GF Series Pulverizer Set suitable for continuous operation?
Yes, the GF Series Pulverizer Set is designed for continuous operation, allowing for high-volume pulverizing of materials.
Can the GF Series Pulverizer Set be customized for specific applications?
Yes, the GF Series Pulverizer Set can be customized to meet specific application requirements, such as different material feeding systems, discharge options, and additional features like dust collection or cooling systems.
What safety measures are incorporated in the GF Series Pulverizer Set?
The GF Series Pulverizer Set is equipped with safety features such as overload protection, interlocking mechanisms, and safety guards to ensure operator safety during operation.
How do I maintain the GF Series Pulverizer Set?
Regular maintenance of the GF Series Pulverizer Set includes cleaning, lubrication of moving parts, and inspection of wear components. Detailed maintenance instructions can be found in the user manual.
Where can I find technical support or spare parts for the GF Series Pulverizer Set?
For technical support and spare parts inquiries, you can contact NOAH(yznoah@noah-pm.com). We will provide the necessary assistance and information.
Investment Return Analysis for GF Series Pulverizer Set:
Growing Market Demand: The GF Series Pulverizer Set operates in the pulverizing equipment industry, which is experiencing steady growth due to increasing demand from various sectors such as chemicals, pharmaceuticals, food processing, and materials recycling. The growing market demand indicates a positive outlook for investment in the GF Series Pulverizer Set.
Competitive Advantage: With its high grinding efficiency, uniform particle size distribution, and versatile application capabilities, the GF Series Pulverizer Set offers a competitive advantage over other pulverizing machines. This advantage attracts customers who prioritize performance and precision, increasing the potential return on investment.
Cost Savings for Customers: By investing in a GF Series Pulverizer Set, customers can achieve cost savings in their production processes. The efficient pulverizing capabilities and uniform particle size distribution help optimize material usage, reduce waste, and increase overall operational efficiency. This cost-saving benefit positions the GF Series Pulverizer Set as an attractive investment option.
Customization Potential: The GF Series Pulverizer Set offers customization options to meet specific application requirements. This flexibility allows the equipment to cater to diverse customer needs, expanding its market potential and increasing the likelihood of a higher return on investment.
International Market Expansion: The GF Series Pulverizer Set has the potential for international market expansion. As the demand for pulverizing equipment continues to rise globally, exploring new markets and establishing partnerships or distribution networks in untapped regions can lead to increased sales and profitability.
Technological Advancements: Keeping pace with technological advancements is crucial in the equipment industry. The GF Series Pulverizer Set should continue investing in research and development to enhance its product features, improve efficiency, and stay ahead of competitors. Technological advancements can drive market demand and contribute to a favorable investment return.
Maintenance and Operating Costs: The GF Series Pulverizer Set is known for its low maintenance requirements and energy-efficient operation. The reduced maintenance costs and energy consumption can positively impact the return on investment by minimizing operational expenses and increasing overall profitability.
Longevity and Durability: The GF Series Pulverizer Set's robust construction and high-quality components ensure its longevity and durability. This factor provides reassurance to investors, as the equipment can withstand heavy usage, reducing the need for frequent replacements and repairs, and contributing to a higher return on investment over the long term.
After-Sales Support: The availability of comprehensive after-sales support and spare parts for the GF Series Pulverizer Set enhances customer satisfaction and loyalty. A strong after-sales service network can contribute to repeat business, referrals, and positive word-of-mouth, thereby positively impacting the investment return.
Return on Investment Timeline: The return on investment timeline for the GF Series Pulverizer Set can vary depending on factors such as market conditions, marketing efforts, and customer acquisition. However, with the growing market demand, competitive advantages, and cost-saving benefits, investors can expect a reasonable return on their investment within a reasonable timeframe.
Note: This investment return analysis provides a general outlook based on the information available. It is important to conduct a thorough financial analysis and consider market conditions, competition, and other factors specific to your investment scenario before making any investment decisions.

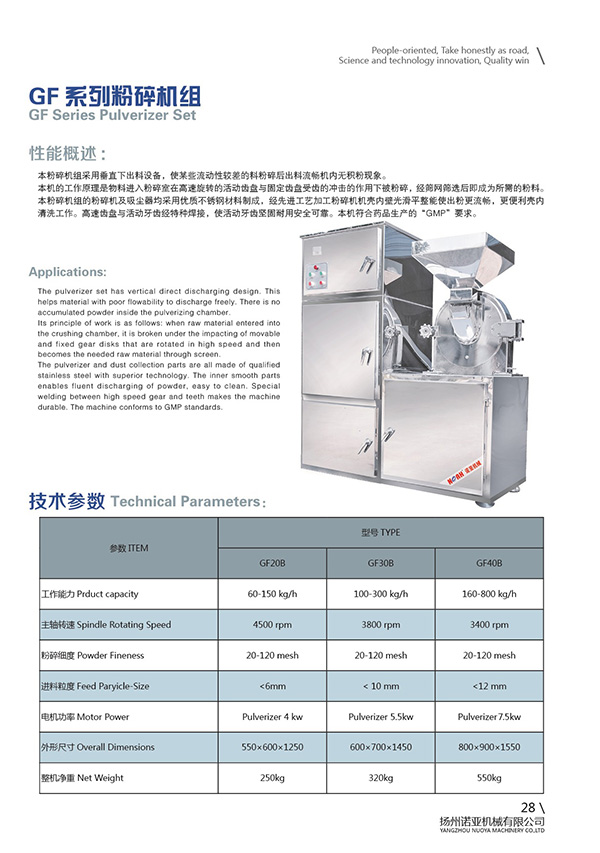

Brochures Download
