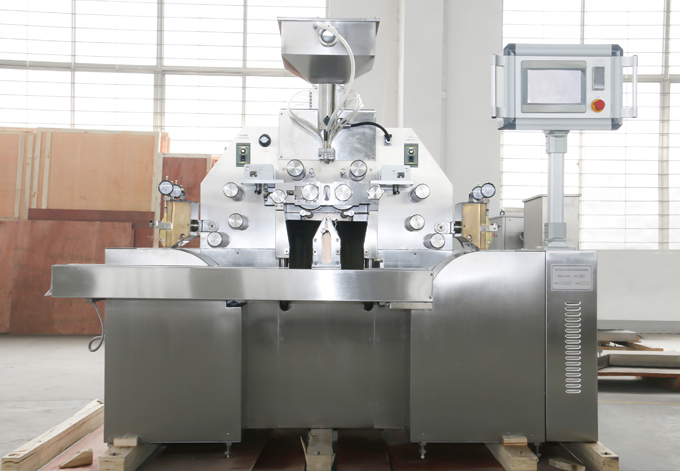

What Is an Encapsulator Machine?

An encapsulator machine (also called a capsule filling machine) is specialized industrial or lab equipment designed to fill empty gelatin, vegetarian, or plant-based capsules with precise amounts of powders, granules, liquids, or semi-solids (e.g., drug formulations, supplements, or nutraceuticals). Used globally in pharmaceuticals, nutraceuticals, and food industries, it ensures dosage accuracy, product protection, and scalability—critical for regulated and consumer-focused production. Below is a detailed breakdown of its working principle, types, applications, and key considerations.

How Does an Encapsulator Machine Work?

Encapsulator machines follow a standardized, automated process to fill and seal capsules, with core steps that ensure precision and consistency:

Capsule Loading & Separation: Empty capsule shells (two-piece: body and cap) are loaded into a hopper. The machine separates the cap from the body using vacuum suction or mechanical force, aligning the bodies in a filling tray and caps in a separate tray.

Filling: The empty capsule bodies are filled with the target material via one of several mechanisms (e.g., auger feeding for powders, piston pumping for liquids). The machine dispenses a pre-calibrated volume/weight to ensure uniform dosage.

Joining (Closing): The separated caps are re-aligned with the filled bodies and pressed together to seal the capsules. Some machines use gentle pressure to avoid damaging the shell or spilling the contents.

Ejection & Inspection: Filled capsules are ejected onto a conveyor or collection bin. Many industrial models include in-line inspection (e.g., weight checks, visual scans for cracks or underfilled capsules) to remove defective units.

Cleaning (Optional): Automated models may include self-cleaning cycles to prevent cross-contamination between batches, critical for regulated industries like pharmaceuticals.

Types of Encapsulator Machines

Encapsulators are categorized by scale, automation level, and filling mechanism—each suited to specific production needs:

1. Manual Encapsulator Machines

Hand-operated or semi-manual, designed for small-scale production (e.g., labs, pharmacies, or small supplement brands).

Requires manual loading of capsules and filling materials, with output ranging from 100–1,000 capsules per hour.

Cost-effective for low-volume batches but less efficient for large-scale use.

2. Semi-Automatic Encapsulator Machines

Combines manual loading with automated filling and closing, balancing efficiency and affordability.

Output ranges from 1,000–10,000 capsules per hour, ideal for medium-sized businesses or R&D facilities.

Reduces human error compared to manual models while remaining easy to operate and maintain.

3. Fully Automatic Encapsulator Machines

High-speed, computer-controlled systems for industrial-scale production (pharmaceutical factories, large supplement brands).

Output exceeds 10,000 capsules per hour (some models reach 100,000+ per hour) with precise dosage control (±1% accuracy).

Integrates with upstream/downstream equipment (e.g., granulators, blenders, packaging lines) and includes GMP-compliant data logging.

4. Specialized Encapsulator Machines

Liquid Encapsulators: Designed to fill liquid or semi-solid formulations (e.g., oils, syrups) without leakage, using sealed capsule shells.

Microencapsulators: Produce tiny capsules (microcapsules) for targeted drug delivery or food ingredient protection.

Vegetarian Capsule Encapsulators: Optimized for plant-based shells (e.g., hydroxypropyl methylcellulose/HPMC) to meet dietary restrictions.

Key Applications of Encapsulator Machines

Encapsulators are indispensable in industries where precision, safety, and product protection are non-negotiable:

Pharmaceuticals: Fills drug formulations (powders, granules, or liquids) into hard or soft capsules, ensuring consistent dosage, protecting active ingredients from moisture/light, and improving patient compliance (easier to swallow than tablets).

Nutraceuticals: Produces vitamin, mineral, protein, or herbal supplement capsules—catering to demand for convenient, precise nutrient intake.

Food Industry: Encapsulates flavors, colors, or functional ingredients (e.g., probiotics) to preserve stability and prevent degradation during processing or storage.

Cosmetics: Fills skincare or haircare actives (e.g., serums, oils) into dissolvable capsules for controlled application and hygiene.

Factors to Consider When Choosing an Encapsulator Machine

Selecting the right machine depends on production scale, material type, and regulatory requirements:

Production Capacity: Match output to your needs (manual for small batches, fully automatic for mass production).

Material Compatibility: Ensure the machine handles your formulation (powders, liquids, or semi-solids) without leakage or contamination.

Dosage Accuracy: Prioritize machines with precise filling mechanisms (e.g., auger feed for powders) to meet regulatory standards (e.g., FDA, EMA).

Capsule Size Flexibility: Choose models that accommodate multiple capsule sizes (000 to 5) to adapt to different product lines.

Regulatory Compliance: For pharmaceuticals/nutraceuticals, select GMP-compliant machines with data logging, easy cleaning, and cross-contamination prevention features.

Maintenance & Usability: Opt for machines with accessible parts and user-friendly controls to minimize downtime and training costs.

Benefits of Using an Encapsulator Machine

Investing in an encapsulator machine delivers tangible advantages for businesses and end-users:

Precision: Ensures uniform dosage, reducing product variability and compliance risks.

Product Protection: Capsule shells shield active ingredients from environmental factors (moisture, light, oxygen), extending shelf life.

Efficiency: Automated models reduce labor costs and increase production speed compared to manual filling.

Versatility: Accommodates multiple formulations (powders, liquids, granules) and capsule types (gelatin, vegetarian).

Consumer Appeal: Capsules are easier to swallow, customizable (e.g., vegetarian options), and discreet—improving user experience.

Conclusion

An encapsulator machine is a cornerstone of modern manufacturing, enabling precise, safe, and scalable capsule production across pharmaceuticals, nutraceuticals, and beyond. Its ability to protect ingredients, ensure dosage accuracy, and meet consumer demands makes it essential for businesses aiming to deliver high-quality, compliant products.
